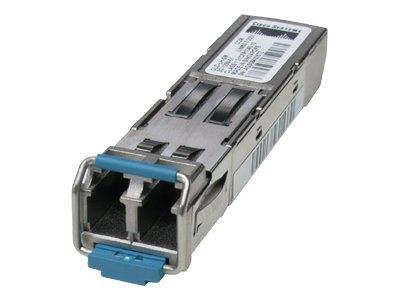

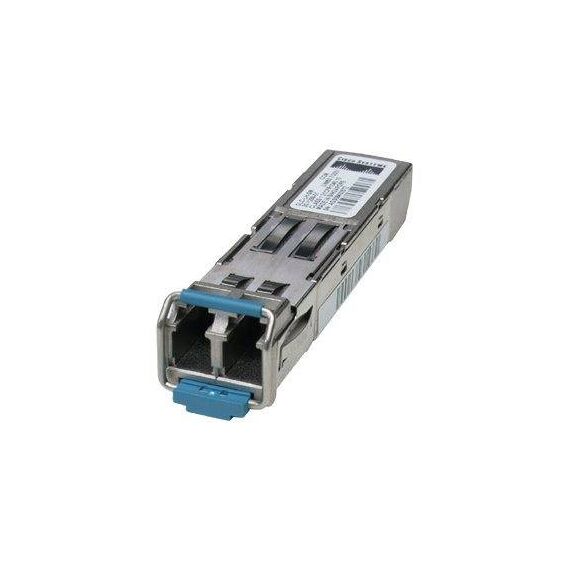

Cisco Rugged SFP / SFP (mini-GBIC) transceiver module / GigE / 1000Base-SX / LC/PC multi-mode / up to 550 m / 850 nm / for Cisco 2010, 2520, 3270; Catalyst 2960, ESS9300; Industrial Ethernet 30XX; MWR 2941 | GLC-SX-MM-RGD=
Please sign in so that we can notify you about a reply
Description
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 550 m |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ah |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-SX - LC/PC multi-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Laser Class 1, IEC 60825-1 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.3 cm |
| Depth | 5.7 cm |
| Height | 0.9 cm |
| Weight | 75 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Cisco 2010, 2010 Connected Grid, 2520 Connected Grid Switch, 3270 Rugged Integrated Services Router Bundle, 3270 Rugged Integrated Services Router Card, 3270 Rugged ISR Card ¦ Cisco Aironet 1522AG Lightweight Outdoor Mesh Access Point ¦ Cisco Catalyst 2960-24LC-S, 2960-24PC-L, 2960-24PC-S, 2960-24TC, 2960-24TC-L, 2960-24TC-S, 2960-48PST-L, 2960-48PST-S, 2960-48T, 2960-48TC, 2960-48TC-L, 2960-48TC-S, 2960-8TC, 2960-8TC-S, 2960G-24TC, 2960G-48TC, 2960G-8TC, 2960S-24PD-L, 2960S-24PS-L, 2960S-24TD-L, 2960S-24TS-L, 2960S-24TS-S, 2960S-48FPD-L, 2960S-48FPS-L, 2960S-48LPD-L, 2960S-48LPS-L, 2960S-48TD-L, 2960S-48TS-L, 2960S-48TS-S, ESS9300 Embedded Series ¦ Cisco Industrial Ethernet 3000 Series, 3010 Series ¦ Cisco MWR 2941-DC, 2941-DC-A |
Features - Cisco - GLC-SX-MM-RGD=
More Details
Product Code
677D807
EAN Code
0882658074189
Manufacturer
Cisco
