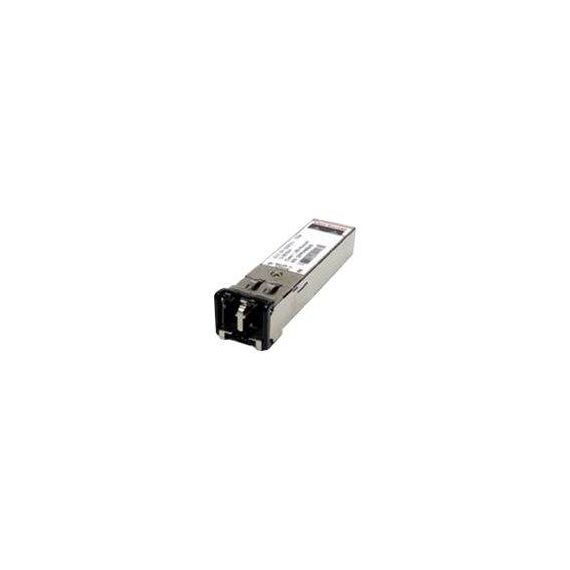

Cisco Rugged SFP / SFP (mini-GBIC) transceiver module / 100Mb LAN / 100Base-FX / LC multi-mode / up to 2 km / 1310 nm / for Aironet 1522; Catalyst 2960, 2960-24, 2960-48, 2960G-24, 2960G-48, 2960S-24, 2960S-48 | GLC-FE-100FX-RGD=
Please sign in so that we can notify you about a reply
Special Features
- Hot-swappable when deployed, the switch or router does not have to reboot
- Supports the "pay-as-you-populate" model
- Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
- Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link
Product Specification
Device Type | SFP (mini-GBIC) transceiver module |
Form Factor | Plug-in module |
Networking | Networking |
Connectivity Technology | Wired |
Cabling Type | 100Base-FX |
Data Link Protocol | 100Mb LAN |
Optical Wave Length | 1310 nm |
Max Transfer Distance | 2 km |
Compliant Standards | IEEE 802.3, IEEE 802.3ah |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x Ethernet 100Base-FX - LC multi-mode x 2 |
Compatible Slots | 1 x SFP (mini-GBIC) |
Dimensions & Weight | Dimensions & Weight |
Width | 1.34 cm |
Depth | 5.65 cm |
Height | 8.5 mm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 90 days |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Compatibility Information | Compatibility Information |
Designed For | Cisco Aironet 1522AG Lightweight Outdoor Mesh Access Point ¦ Cisco Catalyst 2960-24LC-S, 2960-24PC-L, 2960-24PC-S, 2960-24TC, 2960-24TC-L, 2960-24TC-S, 2960-48PST-L, 2960-48PST-S, 2960-48T, 2960-48TC, 2960-48TC-L, 2960-48TC-S, 2960-8TC, 2960-8TC-S, 2960G-24TC, 2960G-48TC, 2960G-8TC, 2960S-24PD-L, 2960S-24PS-L, 2960S-24TD-L, 2960S-24TS-L, 2960S-24TS-S, 2960S-48FPD-L, 2960S-48FPS-L, 2960S-48LPD-L, 2960S-48LPS-L, 2960S-48TD-L, 2960S-48TS-L, 2960S-48TS-S |
Features - Cisco - GLC-FE-100FX-RGD=
More Details
Product Code
677D924
EAN Code
0882658132193
Manufacturer
Cisco
