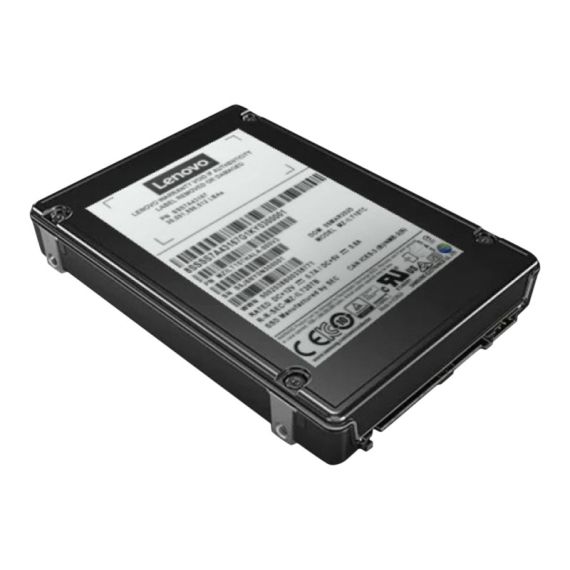

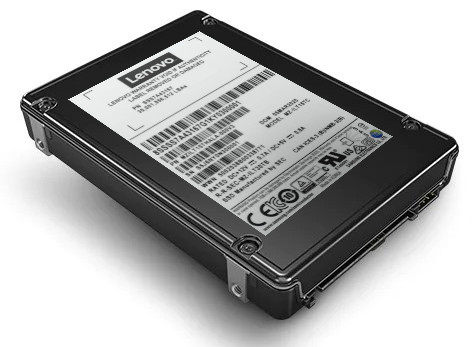

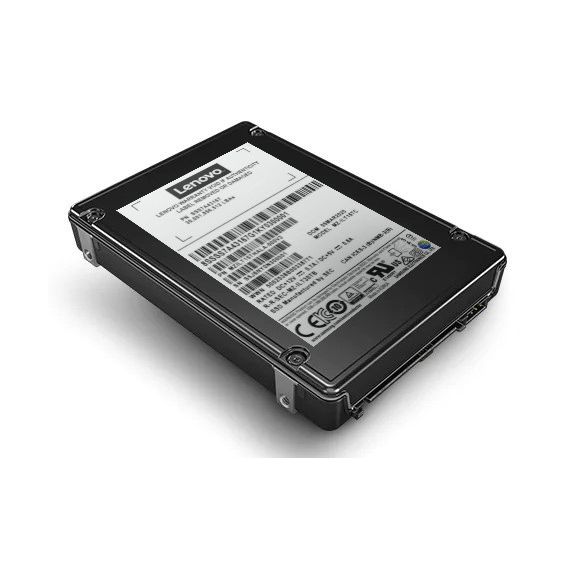

Read Intensive - encrypted - 960 GB - hot-swap - 2.5" - TCG Opal Encryption, Self-Encrypting Drive (SED) - CRU - for ThinkStation P920 Rack; ThinkSystem SN550 V2; SR630 V2; SR650 V2; SR670 V2; ST650 V2 | 4XB7A80318
Product Features
- Enhanced durability
Built to withstand the rigors of day-to-day operations, this solid state drive boasts a shock acceleration (non-operating) of 1500 g and a vibration acceleration (non-operating) of 20 g, ensuring data integrity even in the most challenging environments. - High-capacity storage
With a generous 960 GB capacity, this drive offers ample space for large files and applications, making it an ideal choice for read-intensive workloads. - Efficient power consumption
Optimized for efficiency, the drive consumes only 11.5 W in read mode and 14.7 W in write mode, reducing operational costs and contributing to a greener computing environment. - Advanced security
Featuring self-encrypting drive (SED) technology and TCG Opal Encryption, this drive ensures that your data is protected against unauthorized access, providing peace of mind. - Exceptional performance
Achieve peak performance with 4KB random read IOPS of 420,000 and write IOPS of 60,000, coupled with an average latency of just 45 µs, for swift and reliable data access.
Special Fetures
- 960 GB capacity meets the needs of demanding applications
- End-to-end data protection and V-NAND Technology for enhanced reliability
- Read Intensive design supports sustained performance for read-heavy environments
- Operates efficiently with a maximum power consumption of 14.7 W during write
- 2,000,000 hours MTBF for long-term dependability
Product Specification
Device Type | Solid state drive - hot-swap |
Capacity | 960 GB |
Hardware Encryption | Yes |
Form Factor | 2.5" |
Features | Tagged Command Queuing (TCQ), End-to-end data protection, V-NAND Technology, Read Intensive, S.M.A.R.T. |
Width | 70 mm |
Depth | 100 mm |
Height | 15 mm |
Weight | 160 g |
Performance | |
Drive Writes Per Day (DWPD) | 1 |
SSD Endurance | 1752 TB |
Drive Class | Read Intensive |
Internal Data Rate | 2100 MBps (read) / 1300 MBps (write) |
4KB Random Read | 420000 IOPS |
4KB Random Write | 60000 IOPS |
Average Latency | 45 µs |
Reliability | |
MTBF | 2,000,000 hours |
Non-Recoverable Errors | 1 per 10^17 |
Expansion & Connectivity | |
Compatible Bay | 2.5" |
Power | |
Power Consumption | 11.5 Watt (read) ¦ 14.7 Watt (write) |
Miscellaneous | |
Compliant Standards | UL, TUV, VCCI, C-Tick, BSMI, CB, IC, FCC, RoHS, KCC |
Pricing Type | Customer-replaceable Unit (CRU) |
Manufacturer Warranty | |
Service & Support | Limited warranty - replacement - 1 year |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 85 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
Vibration Tolerance (operating) | 20-2000 Hz |
Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
Compatibility Information | |
Designed For | Lenovo ThinkStation P920 Rack 7X06 (2.5") ¦ Lenovo ThinkSystem SD530 7X21 (2.5") ¦ Lenovo ThinkSystem SN550 7X16 (2.5") ¦ Lenovo ThinkSystem SN550 V2 7Z69 (2.5") ¦ Lenovo ThinkSystem SN850 7X15 (2.5") ¦ Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08 (2.5") ¦ Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5") ¦ Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5") ¦ Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5") ¦ Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5") ¦ Lenovo ThinkSystem SR630 V2 7Z70 (2.5"), 7Z71 (2.5") ¦ Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5") ¦ Lenovo ThinkSystem SR645 7D2X (2.5"), 7D2Y (2.5") ¦ Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5") ¦ Lenovo ThinkSystem SR650 V2 7Z72 (2.5"), 7Z73 (2.5") ¦ Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5") ¦ Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5") ¦ Lenovo ThinkSystem SR670 V2 7Z22 (2.5"), 7Z23 (2.5") ¦ Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5") ¦ Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5") ¦ Lenovo ThinkSystem SR850P 7D2F (2.5") ¦ Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5") ¦ Lenovo ThinkSystem SR860 V2 7Z59 (2.5"), 7Z60 (2.5") ¦ Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5") ¦ Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10 (2.5") ¦ Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5") |
- 2.5"
