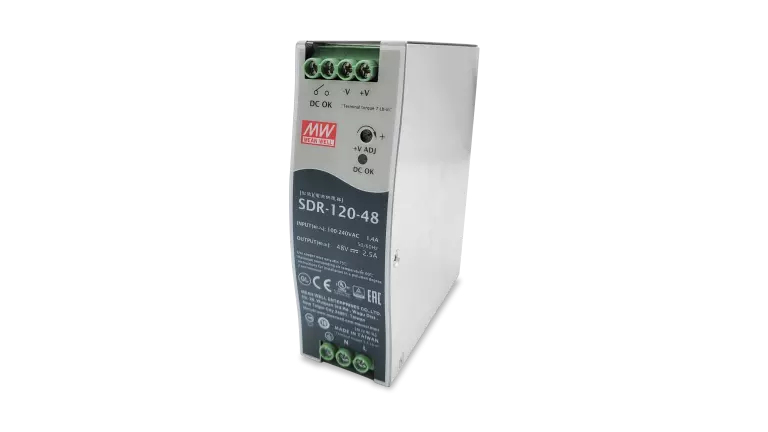

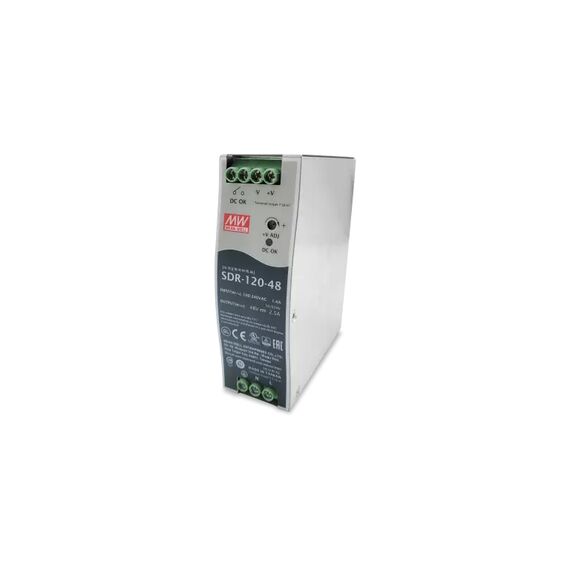

Allied Telesis AT-SDR120-48 / Power supply / AC 115-230 V / 120 Watt / 1-phase 3 Wire / active PFC | AT-SDR120-48
AT-SDR120-48
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Special Features
- 150% peak load efficiency
- Stable output power with 150% peak current capability
- Wide input voltage range
- Protections - peak-current, over-current and over-temperature
- Extended operating temperature range
- Metal case
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - external |
| Power Device | Power Device |
| Input Voltage | AC 115-230 V |
| Input Voltage Range | AC 88 - 264 / DC 124 - 370 V |
| Input Voltage Margin | + 1% / - 1% |
| Input Wiring | 1-phase 3 Wire |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 3 pin captive screw |
| Output Voltage | 48 V 48 - 55 V |
| Max Electric Current | 2.5 A |
| Power Capacity | 120 Watt |
| Efficiency | 150% peak Load |
| Miscellaneous | Miscellaneous |
| MTBF | 1764.6 hours |
| Features | IP20 protection, 35 mm DIN rail, metal alloy case, overheat protection, over current protection, overload protection, NS 35 DIN rail |
| Compliant Standards | TUV, EN 61000-3-2, EN55024, EN 61000-4-2, EN 61000-6-2, UL 508, EN 61204-3, EAC, EN 61000-3, BSMI CNS 14336-1, EN 62368-1, CNS 13438 Class B, EN 61000-4, EN 55032/CISPR 32 Class A, EN 61204-3 Class B, SEMI F47, EN 61000-6, AS/NZS 62368.1, TP TC 004, TP TC 020 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4 cm |
| Depth | 12.52 cm |
| Height | 11.35 cm |
Χαρακτηριστικά
Product Code
CG34692
EAN Code
0767035228440
Manufacturer
Allied Telesis
