APC Rack ATS Bracket Kit with Adjustable Front and Rear Rails for 4-Post Racks, for 1U and 2U Rack Transfer Switches
Brand:
APC
APC Rack ATS Bracket Kit with Adjustable Front and Rear Rails for 4-Post Racks, for 1U and 2U Rack Transfer Switches
€115.64 inc. VAT
AP7768
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
APC Rack ATS Bracket Kit — Adjustable Rear Rails for 4-Post Racks
Rack ATS1U & 2U models4-post racksHardware included

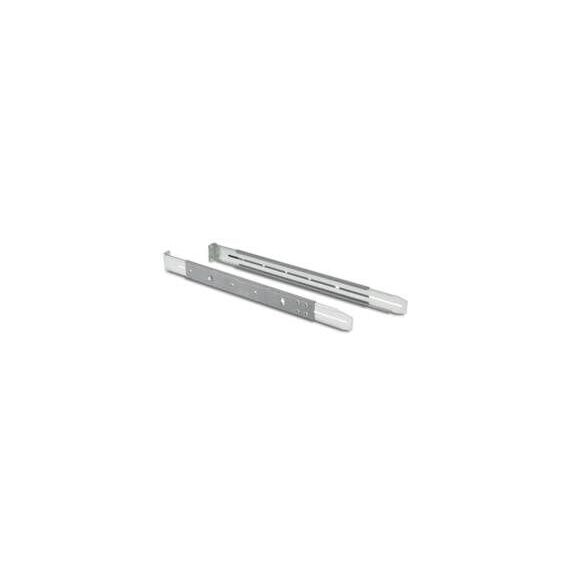

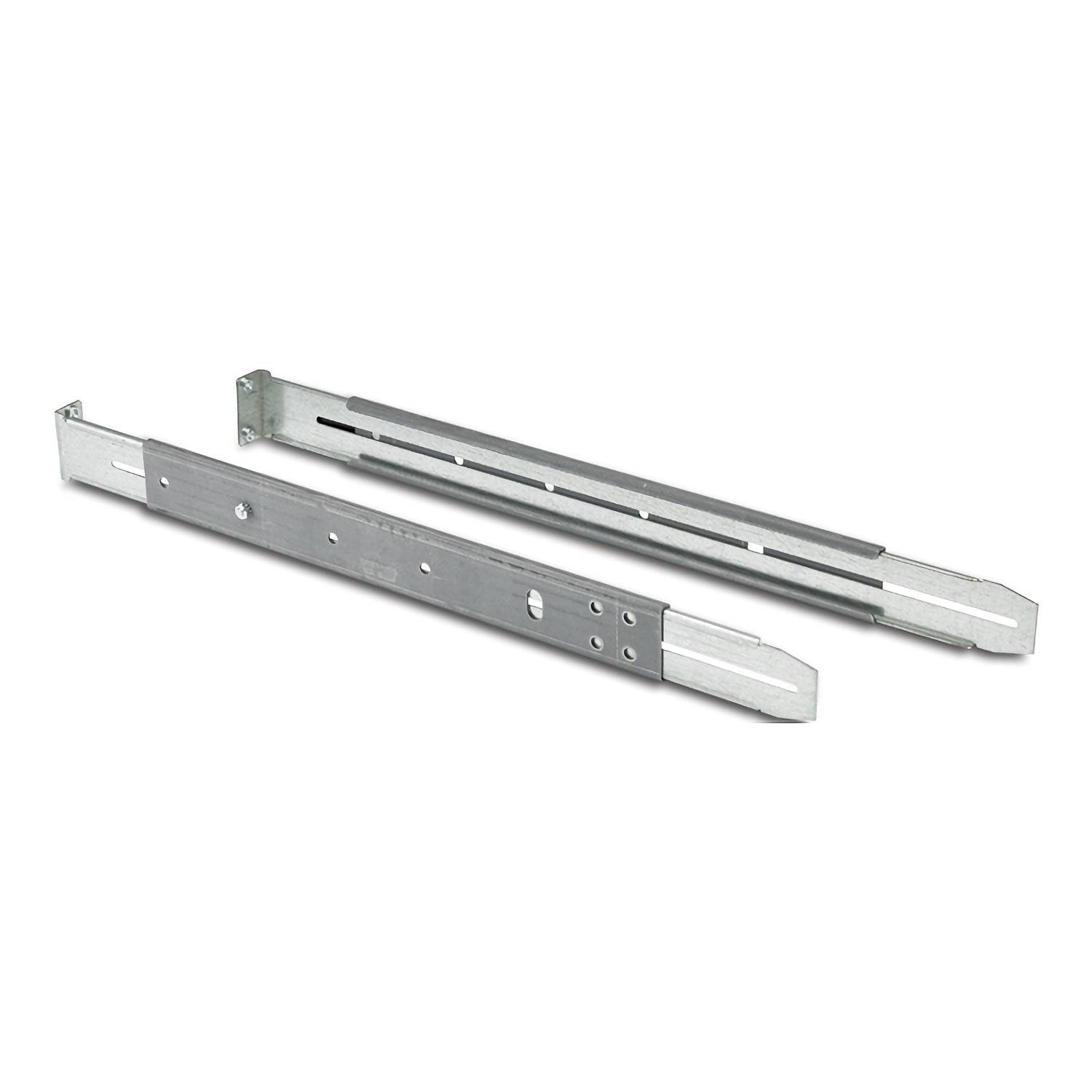

The APC AP7768 is a bracket kit with adjustable front and rear rail segments that lets an APC Rack Automatic Transfer Switch (ATS) be supported at the back as well as the front of a 4-post rack.
APC Rack ATS units are long, rear-heavy devices that switch a load between two power feeds. In a 2-post rack the standard front ears are enough, but in a 4-post cabinet APC specifies these adjustable rails so the unit is carried on both sets of rails. The installation guide covers both 1U and 2U Rack ATS models.
Before you order: For APC Rack Automatic Transfer Switches only (1U and 2U). It is not a general-purpose rail kit for servers, UPS units or PDUs, and it is not needed in 2-post racks.
What's in the Box
- 2 × front rail segments
- 2 × rear rail segments
- 2 × hex nuts and 4 × washers
- 2 × pan-head screws, 4 × flat-head screws, 4 × flat-head mounting screws
What It Means in Practice
- Supports the rear of the ATS so it does not hang from the front ears alone.
- Adjustable rail segments adapt to the depth of your 4-post rack.
- A Phillips screwdriver is needed; APC recommends two people for the installation.
What Will Not Work
- Not a cord-retention or PDU mounting kit.
- Does not fit servers, UPS units or other devices.
- Not required (and not intended) for 2-post racks.
- Rail depth range and load rating are not published by APC — tell us your rack depth and we will check.
Key Features
Rear support
Front and rear rail segments carry the ATS on all four posts.
Adjustable
Rail segments adjust to the rack depth.
Complete hardware
Nuts, washers and screws supplied for the installation.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
If your Rack ATS sits in a 4-post cabinet, order this kit together with the ATS — mounting it on the front ears only leaves the rear unsupported. For shelves, rails and other cabinet parts see rack accessories.
✓ Buy it if you install an APC 1U or 2U Rack ATS in a 4-post rack.
✕ Skip it if your rack is 2-post, or you are looking for rails for a server, UPS or PDU.
→ Also consider APC Smart-UPS rack rail kits for UPS units.
Send us your ATS model and rack depth and we will confirm the fit before you order.
Features - APC - AP7768
More Details
Product Code
2706334
EAN Code
0731304256229
Manufacturer
APC
