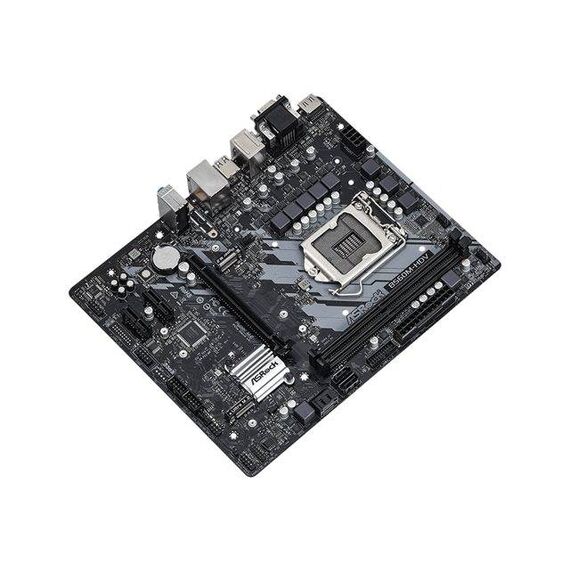

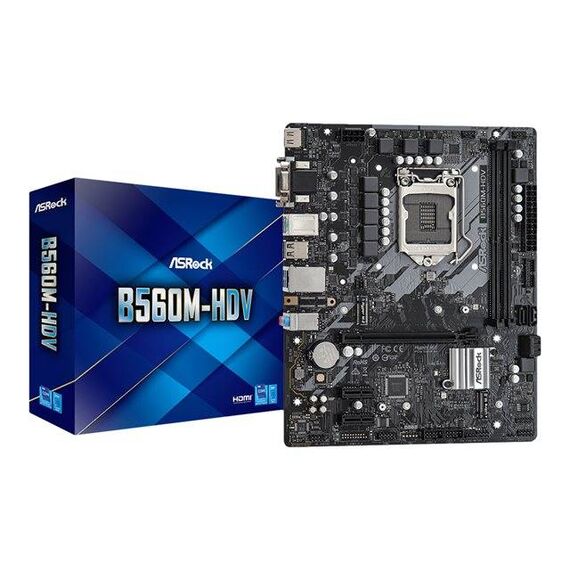

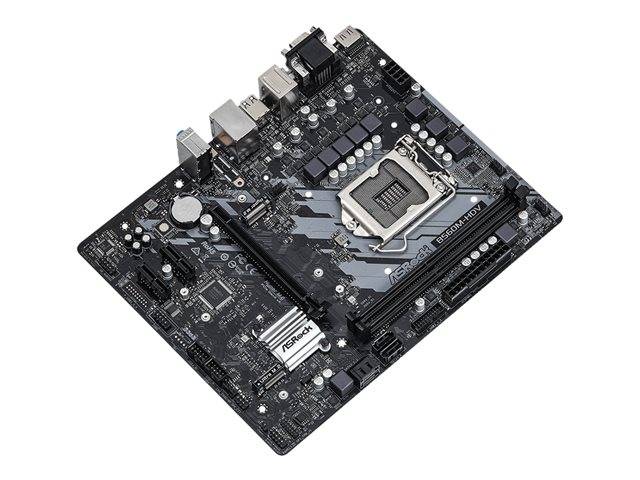

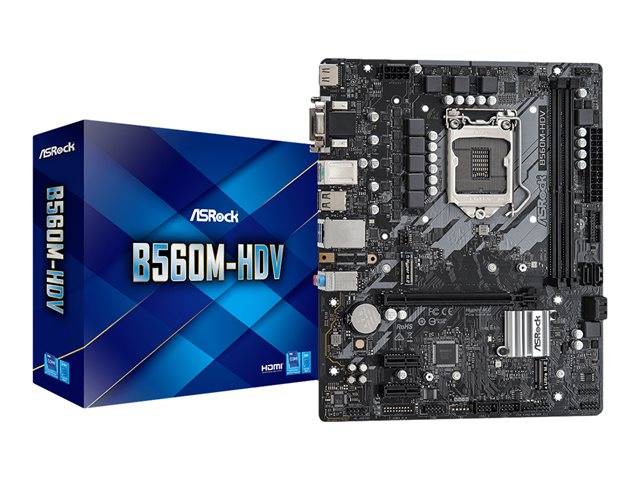

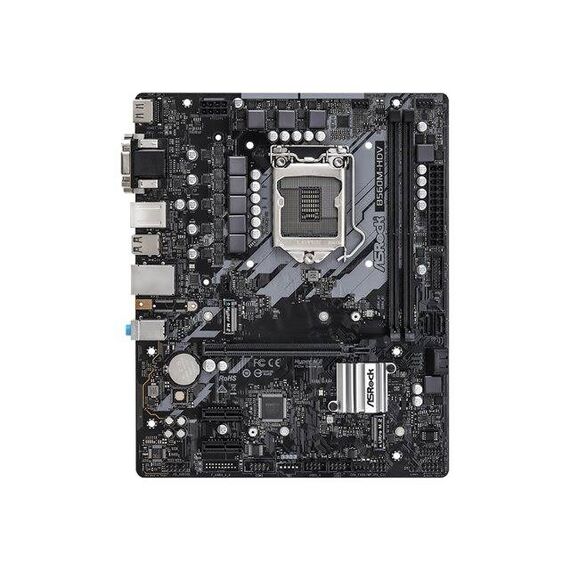

ASRock B560M-HDV / Motherboard / micro ATX / LGA1200 Socket / B560 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBF50-A0UAYZ
Special Features
- Premium 50A power chokes
- Intel LAN support
- PCIe 4.0 high-speed M.2 solution
- Three graphics outputs
- Full Spike Protection
Product features
- Premium 50A power chokes
ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Intel LAN support
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! - PCIe 4.0 high-speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support a next-generation PCI Express 4.0 M.2 SSD. It is capable of performing twice the speed compared to previous 3rd generation, ensuring a lightning-fast data transferring experience. - Three graphics outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B560 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th and 11th Generation Intel Core) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 4600 MHz (O.C.), 5000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |

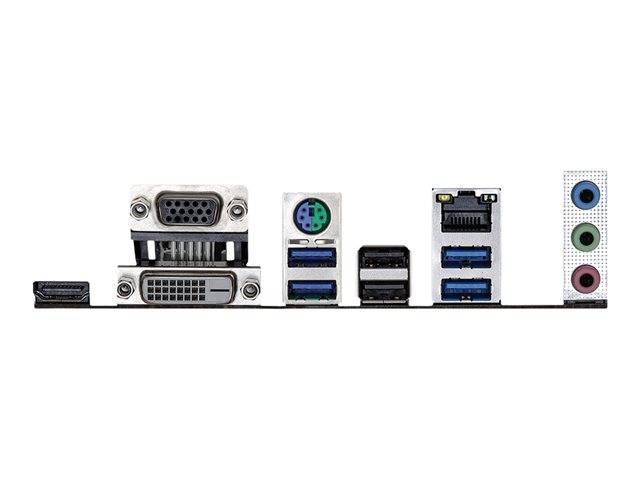

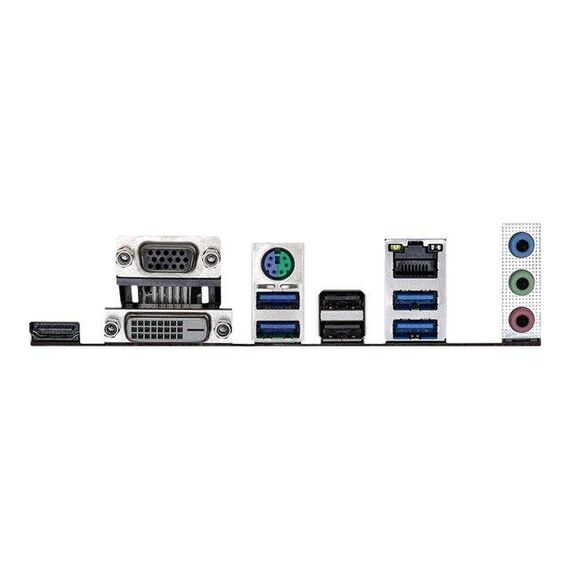

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x serial - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, All-Solid Capacitor motherboard Design, 6 Phase Power Design, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, Premium 50A Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock Hyper M.2 |
| Included Accessories | I/O back plate, 2 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 24.4 cm |
| Depth | 19.8 cm |
Χαρακτηριστικά
Product Code
03:153006
EAN Code
4710483933790
Manufacturer
Asrock
