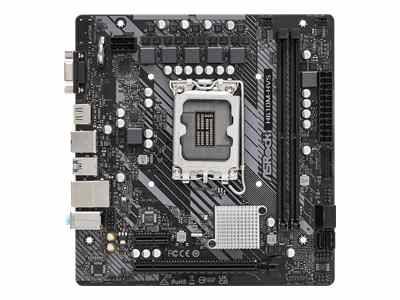

ASRock H610M-HVS / Motherboard / micro ATX / LGA1700 Socket / H610 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBHT0-A0UAYZ

90-MXBHT0-A0UAYZ
64.25
69.84
(76.46 με Φ.Π.Α.) Κερδίζετε: 5.59
Διαθεσιμότητα: 8 Είδη
Standard DeliveryStandard delivery εντός 3 με 8 εργάσιμων ημερών.
Find similar
Delivery
Payment options
Product Code07:125852 EAN Code4710483936678 ManufacturerAsrock CPU SocketSocket 1700

ASRock H610M-HVS / Motherboard / micro ATX / LGA1700 Socket / H610 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBHT0-A0UAYZ

Product Specification

Product Type Motherboard - micro ATX
Chipset Type Intel H610
Processor Socket LGA1700 Socket
Max Processors Qty 1
Max Size 64 GB
Technology DDR4
Bus Clock 3200 MHz
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Type HD Audio (8-channel)
Audio Codec Realtek ALC887/ALC897
Compliant Standards High Definition Audio
Network Controller Realtek RTL8111H
Network Interfaces Gigabit Ethernet
Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA
Interfaces 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
BIOS Type AMI
BIOS Features Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection
Sleep / Wake Up Wake on LAN (WOL)
Hardware Features ASRock Instant Flash, All-Solid Capacitor motherboard Design, 5 Phase Power Design, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology
Included Accessories I/O back plate
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN
Compliant Standards FCC, EuP Ready, ERP
Width 19.7 cm
Depth 18.8 cm

CPU Socket
  • Socket 1700
Χαρακτηριστικά
Product Code
07:125852
EAN Code
4710483936678
Manufacturer
Asrock
