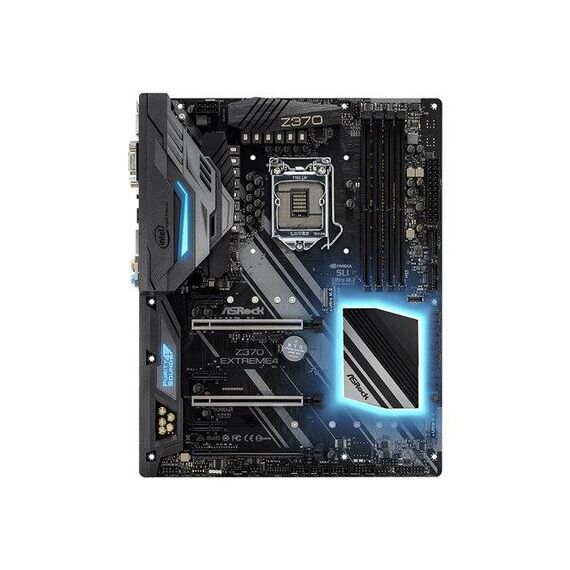

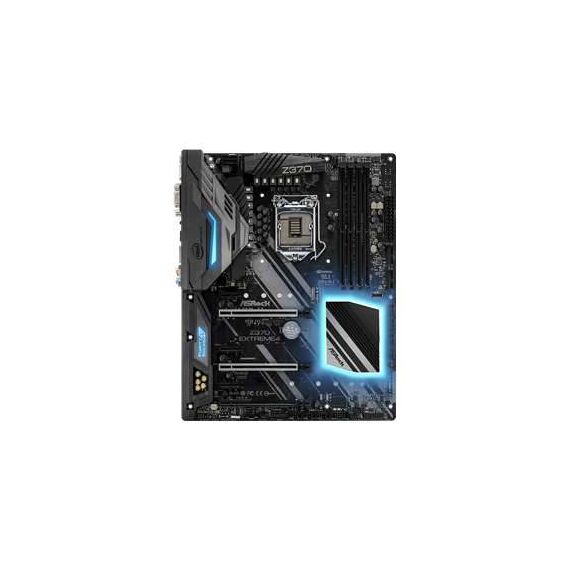

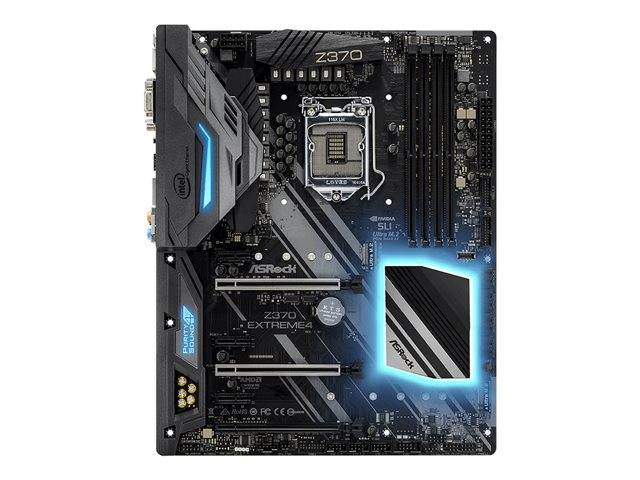

ASRock Z370 Extreme4 / Motherboard / ATX / LGA1151 Socket / Z370 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB5U0-A0UAYZ
|
Description Prepare yourself well to enjoy the impressive world of virtual reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR ready motherboards are definitely the one you're looking for. The sturdy components and rock-solid performance make you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. It's time to enjoy purified audio performance with ultra high definition. Purity Sound 4 is a combination of several hardware, software audio solutions. The advanced PCI-E steel slots packed with solid cover prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely. Front USB 3.1 Gen1 Type-C header delivers high data transfer rate and next-generation reversible USB design to the front panel of computer case. Special Features
Product features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z370 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0 |
| Max Allocated RAM Size | 1024 MB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | DTS Connect, Premium Blu-ray audio support, Sound Blaster Cinema 3, Purity Sound 4 |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (dual: x8 mode; triple: x8, x8, x4 mode; single card: x16 mode) ¦ 3 x PCIe 3.0 x1 ¦ 1 x M.2 socket |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 1 x VGA ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 3.1 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 6 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, Secure Backup UEFI Technology, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | NVIDIA SLI Technology Support, 12 Phase Power Design, ASRock Instant Flash, HDCP compliant, Intel Extreme Memory Profile (XMP) support, NVIDIA Quad SLI Technology Support, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Dual-Stack MOSFET (DSM), Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Supports Intel K-Series unlocked CPU, ASRock BCLK, Direct Drive Technology, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Nichicon Fine Gold Series Audio Capacitors, I/O Armor, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, ASRock Hyper BCLK Engine II, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, ASRock RGB LED, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, Combo Caps |
| Included Accessories | I/O back cover, 3 x M.2 screws, ASRock SLI_HB_Bridge_2S Card |
| Cables Included | 4 x Serial ATA cable |
| Software Included | ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock RGB LED, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
