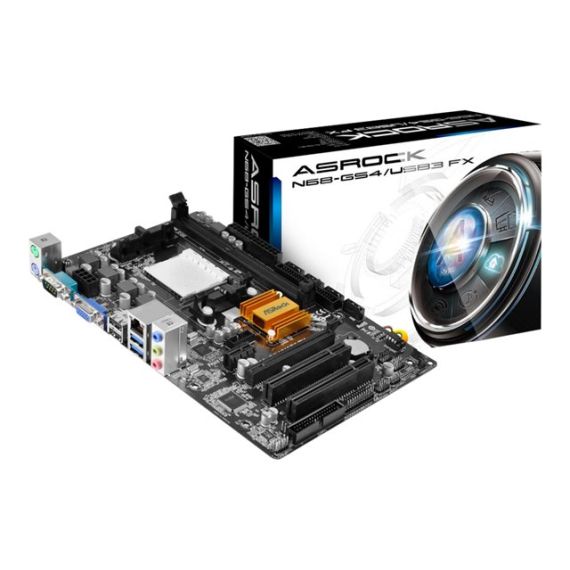

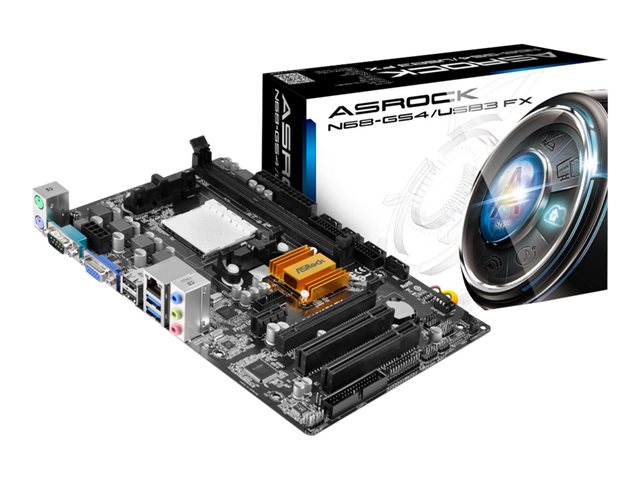

ASRock N68-GS4 / USB3 FX Motherboard micro ATX Socket AM3+ GeForce 7025 USB 3.0 Gigabit LAN onboard graphics
90-MXB0V0-A0UAYZ
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
ASRock N68-GS4 / USB3 FX Motherboard micro ATX Socket AM3+ GeForce 7025 USB 3.0 Gigabit LAN onboard graphics | 90-MXB0V0-A0UAYZ
|
Description This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-core CPU ready motherboard.All the capacitors on this board are built with 100% all solid capacitors. With these solid caps, ASRock's motherboards are allowed to perform more stably and ensure longer lifetime.The technology that allows you to turn on your PC and boot up to Windows in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy. Special Features
Product features
|
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | NVIDIA GeForce 7025 / nForce 630a / NVIDIA nForce 630a MCP |
| Max Bus Speed | 1000 MHz |
| Processor Socket | Socket AM3+ |
| Max Processors Qty | 1 |
| Compatible Processors | Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6 ( Except Phenom II 920 / 940 ) |
| Max Size | 16 GB |
| Technology | DDR3 |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Graphics Controller | NVIDIA GeForce 7025 |
| Memory Allocation Technology | Shared Video Memory (UMA) |
| Max Allocated RAM Size | 256 MB |
| Type | HD Audio (6-channel) |
| Audio Codec | Realtek ALC662 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8211E |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 1 x PCIe x16 ¦ 1 x PCIe x1 ¦ 2 x PCI ¦ 2 x DIMM 240-pin |
| Storage Interfaces | SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 0+1 / RAID 5 / JBOD ¦ ATA-133 -connectors: 1 x 40pin IDC - 2 devices |
| Interfaces | 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x USB 3.0 |
| Internal Interfaces | 1 x floppy ¦ 1 x parallel |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | ACPI support, JumperFree, SMBIOS 2.3.1. support, ACPI 1.1 support, Untied Overclocking Technology |
| Manual Settings | Processor core voltage, memory voltage, chipset voltage |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, power supply fan tachometer |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Chassis intrusion detection, ASRock Hybrid Booster, ASRock U-COP, AMD Cool 'n' Quiet Technology, ASRock Instant Boot, ASRock OC Tuner, 4+1 Phase Power Design, ASRock OC DNA, ASRock Instant Flash, ASRock CPU Frequency Stepless Control, All-Solid Capacitor motherboard Design, ASRock Boot Failure Guard (B.F.G.), ASRock UCC, ASRock APP Charger, Asrock C.C.R. (Combo Cooler Retention Module), ASRock XFast LAN, ASRock XFast RAM, Preboot eXecution Environment (PXE) |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, Antivirus (Trial version), Start8 (30 days trial), Google Chrome Browser, Google ChromeToolbar |
| Compliant Standards | Plug and Play, WHQL, FCC, ACPI 1.1, EuP Ready, ErP Ready |
Χαρακτηριστικά
Product Code
03:214399
EAN Code
4717677329063
Manufacturer
Asrock
