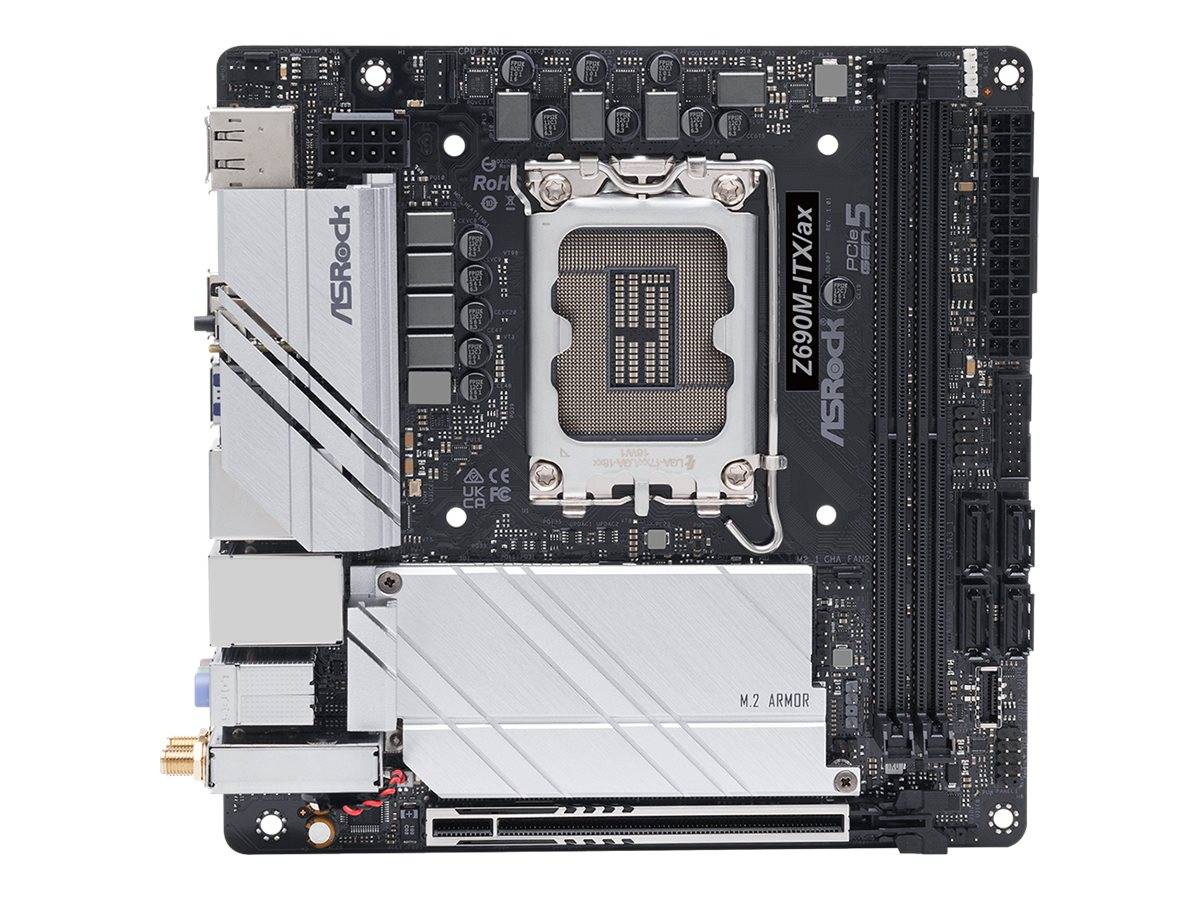

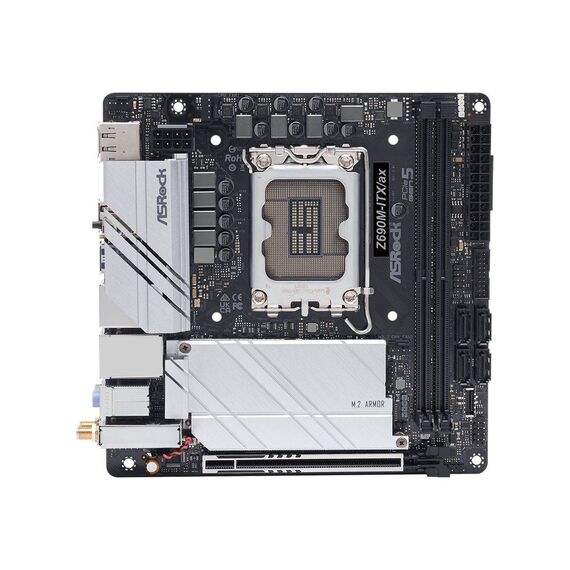

ASRock Z690M-ITX/AX / Motherboard / mini ITX / LGA1700 Socket / Z690 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / Bluetooth, Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBHY0-A0UAYZ
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Optimized VRM design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - 8 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. - 8 layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! - PCIe 5.0 + surface-mount tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. - Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - High speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. - Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. - Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole different 6GHz spectrum band, providing more Wi-Fi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. - USB 3.2 Gen2x2 20Gbps
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. - BIOS flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Special Features
- Optimized VRM design
- 8 power phase design
- 8 layer PCB
- PCIe 5.0 + surface-mount tech
- Nahimic audio
- Polychrome RGB
- High speed M.2 solution
- Dragon 2.5 Gb/s LAN
- Wi-Fi 6E 802.11ax
- USB 3.2 Gen2x2 20Gbps
- BIOS flashback
Product Specification
Product Type | Motherboard - mini ITX |
Chipset Type | Intel Z690 |
Processor Socket | LGA1700 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports 12th Generation Intel Core) |
Supported RAM | Supported RAM |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 5000 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
Audio | Audio |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC897 |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Controller | Intel I219V / Dragon RTL8125BG |
Network Interfaces | Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x M.2 socket (for wireless module) |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (Gigabit Ethernet) |
Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features | Features |
BIOS Type | AMI |
BIOS Features | UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | 8 Phase Power Design, ASRock Instant Flash, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Easy Driver Installer, 8 Layer PCB, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Nichicon 12K Black Caps, ASRock Steel Slots, Premium 60A Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, Intel Hybrid Technology |
Miscellaneous | Miscellaneous |
Included Accessories | 2 x M.2 screws, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software |
Compliant Standards | FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3 |
Width | 17 cm |
Depth | 17 cm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
CPU Socket
- Socket 1700
Χαρακτηριστικά
Product Code
07:125894
EAN Code
4710483936180
Manufacturer
Asrock
