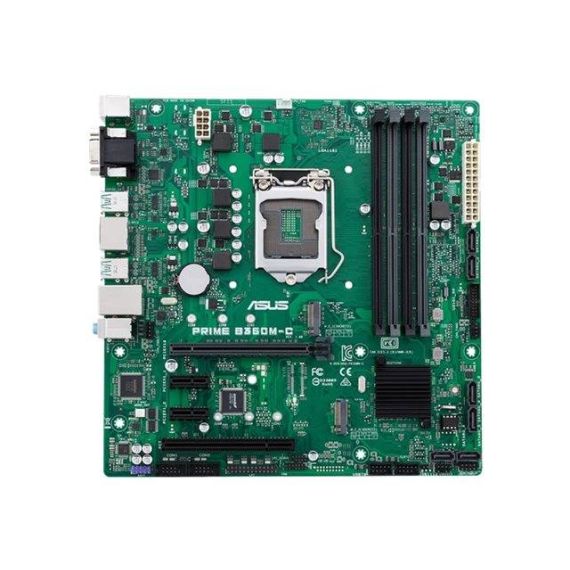

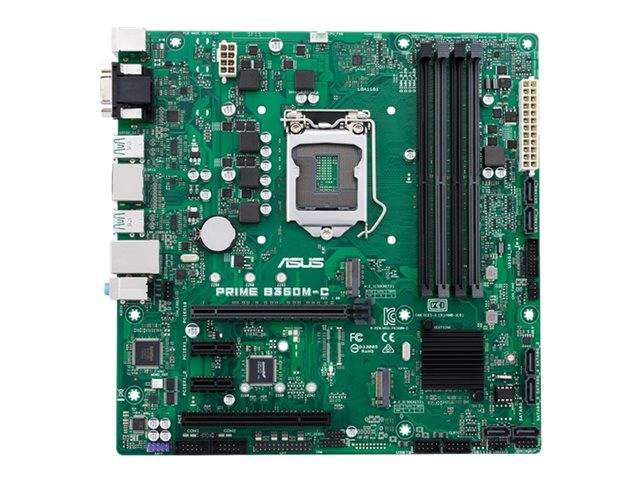

ASUS PRIME B360M-C / Motherboard / micro ATX / LGA1151 Socket / B360 / USB 3.1 Gen 1, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0W80-M0EAYM
90MB0W80-M0EAYM
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
ASUS PRIME B360M-C / Motherboard / micro ATX / LGA1151 Socket / B360 / USB 3.1 Gen 1, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0W80-M0EAYM
|
Description ASUS lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability. ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs. ASUS PRIME B360M-C / Motherboard / micro ATX / LGA1151 Socket / B360 | 90MB0W80-M0EAYMSpecial Features
Product features
|
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B360 Express |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Allocated RAM Size | 1 GB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 1 x HDMI ¦ 4 x USB 3.1 Gen 2 ¦ 2 x DisplayPort |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 2 x serial - header ¦ 1 x audio - header ¦ 2 x speaker - header ¦ 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Jack retasking, Q-DIMM, Q-Slot, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), Moistureproof PCB, Intel Optane Memory Ready, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS Watchdog Timer |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Χαρακτηριστικά
Product Code
07:996438
EAN Code
4712900984880
Manufacturer
Asus
