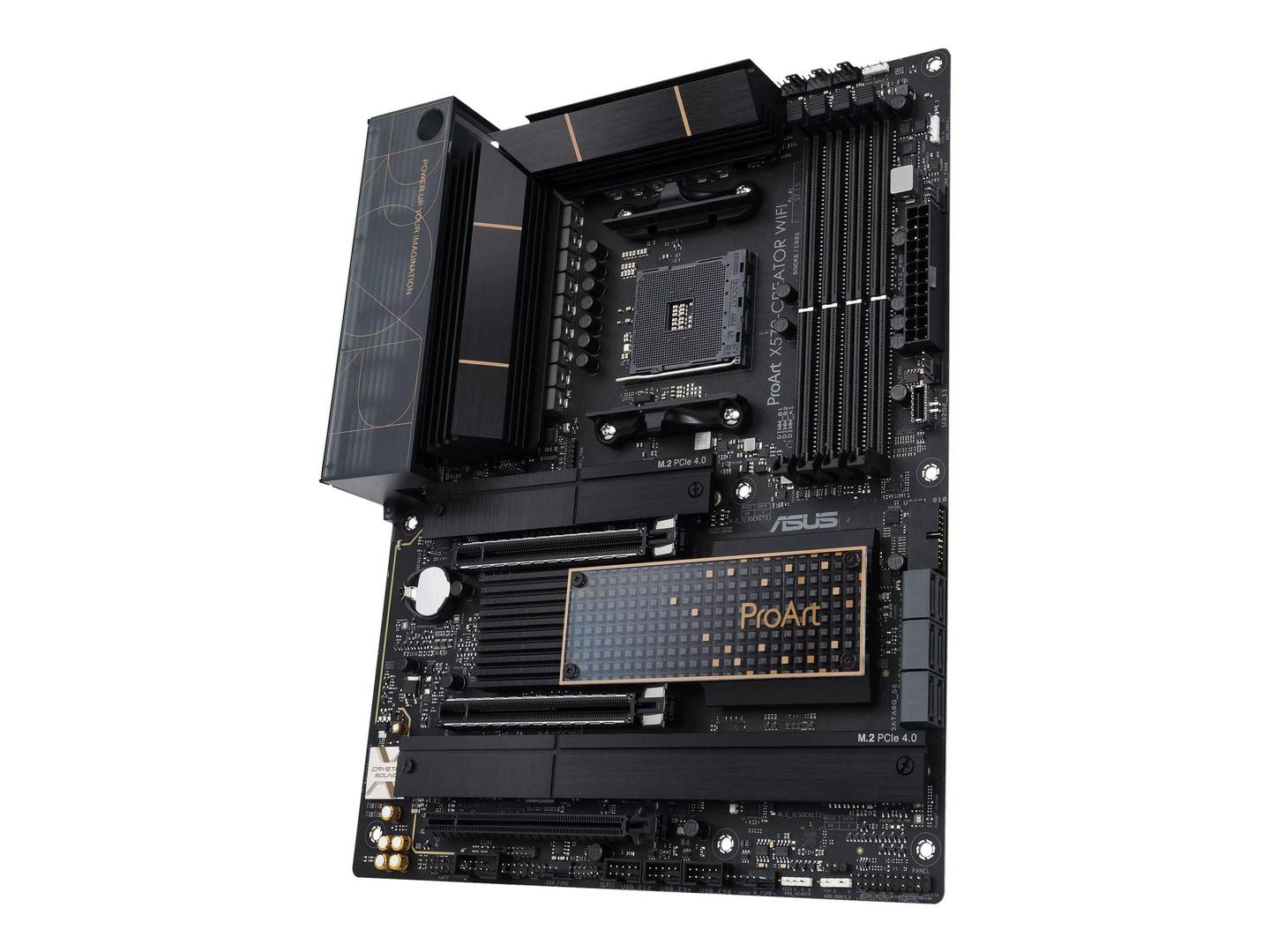

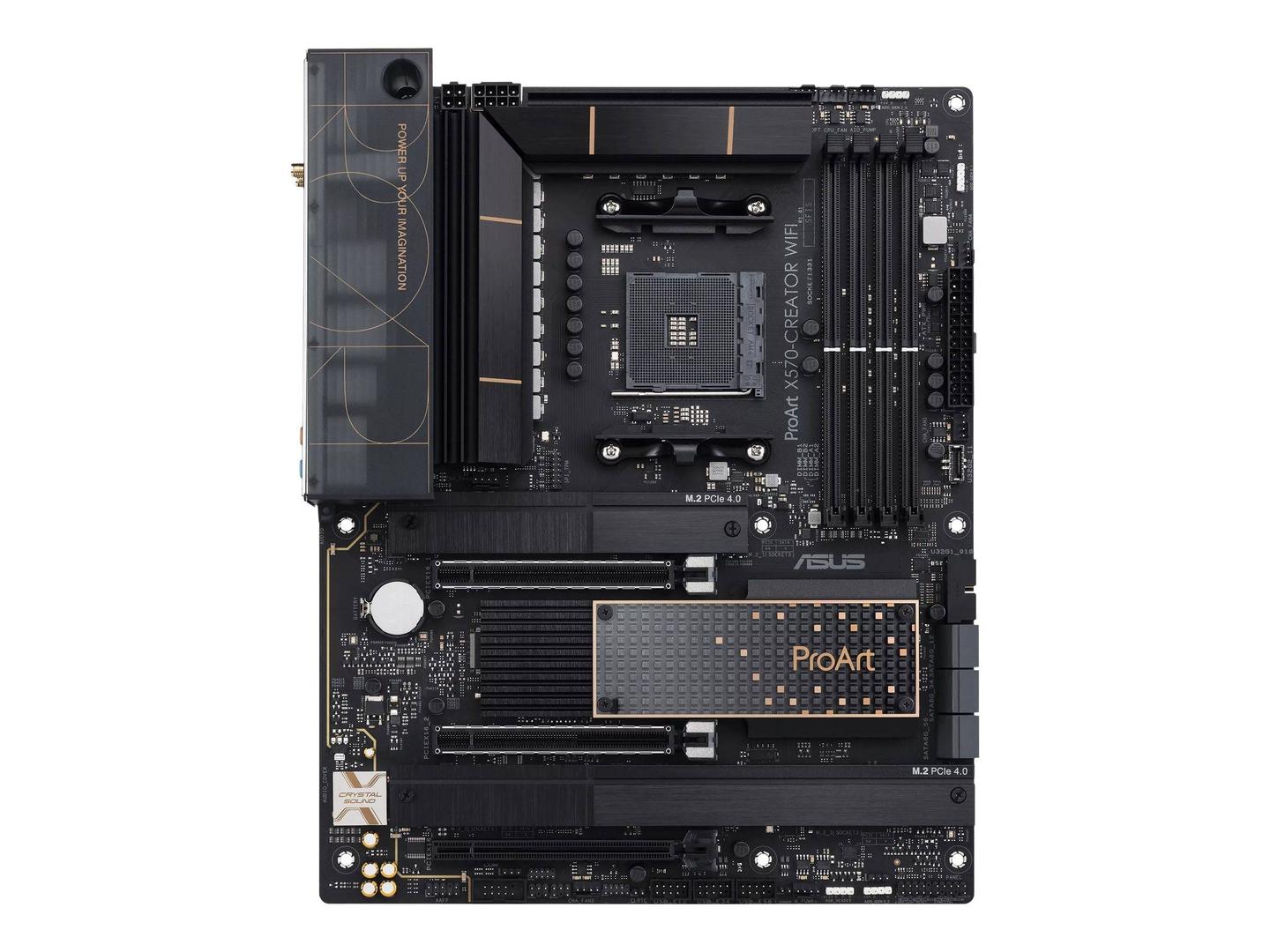

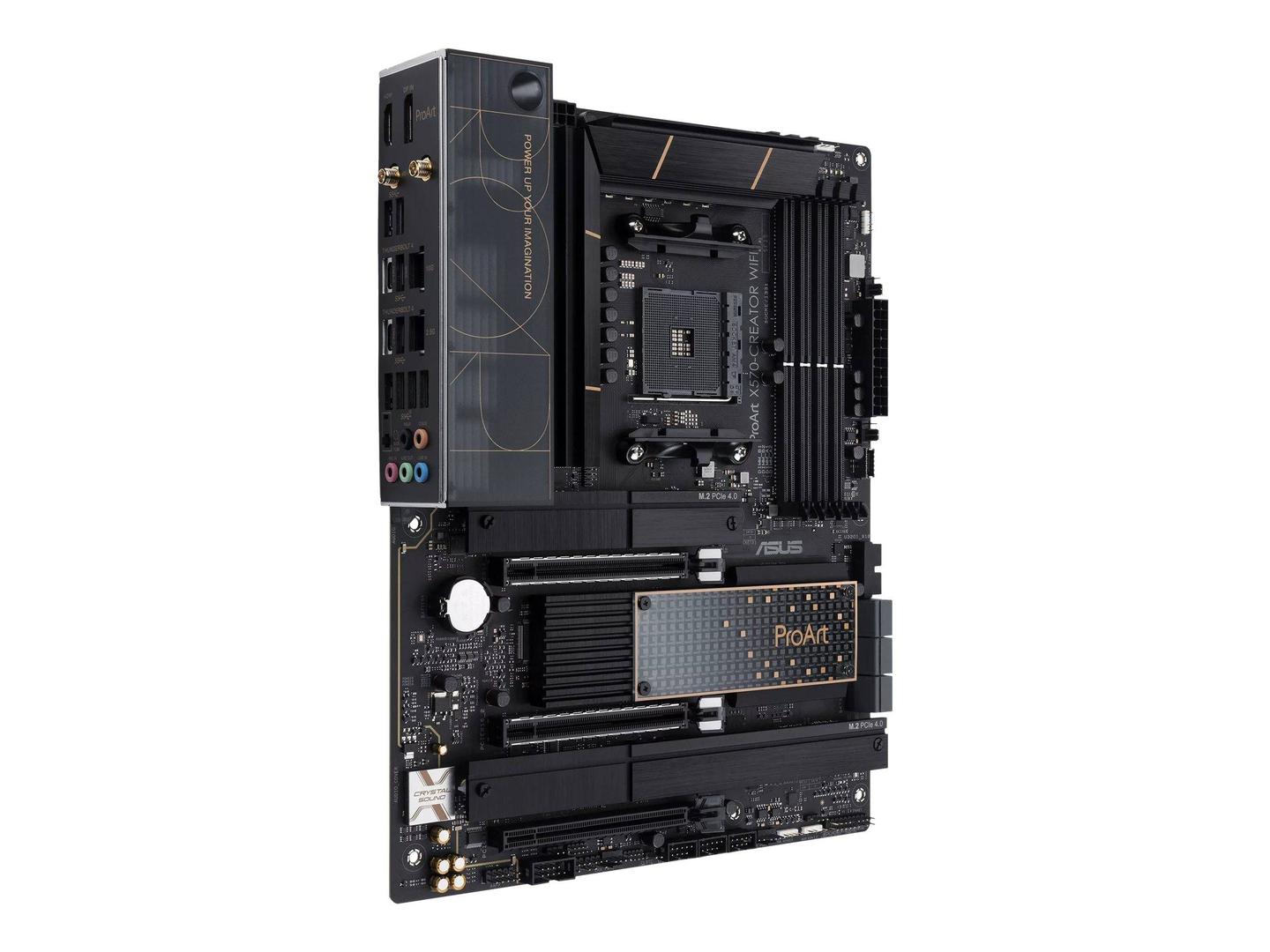

ASUS ProArt X570-CREATOR WIFI / Motherboard / ATX / Socket AM4 / AMD X570 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB18Z0-M0EAY0

90MB18Z0-M0EAY0
456.89
496.62
(543.70 με Φ.Π.Α.) Κερδίζετε: 39.73
Μη Διαθέσιμο
Find similar
Delivery
Payment options
Product Code04:385534 EAN Code4711081412649 ManufacturerAsus CPU SocketSocket AM4

Product Features

  • Performance to create
    ProArt X570-Creator WiFi perfects the art of performance, empowering creativity and maximizing the computing power of the latest AMD Ryzen processors with powerful hardware and software, efficient cooling and lightning-fast connectivity, including Thunderbolt 4, 10 Gb and 2.5 Gb onboard Ethernet, and WiFi 6E.
  • Extensive connectivity
    A comprehensive array of powerful I/O ports - including two Thunderbolt 4 ports plus 10 Gb and 2.5 Gb Ethernet ports - enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.
  • Two Onboard Thunderbolt 4 USB-C
    Each Thunderbolt 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
  • WiFi 6E (Gig+)
    Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast networking speeds along with improved capacity and better performance in dense wireless environments.
  • Marvell AQtion 10 Gbps Ethernet
    Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos or performing system backups or transferring large files is now faster than ever before.
  • Intel 2.5 Gb Ethernet
    The Intel 2.5 Gb Ethernet (I225-V) port provides up to a 2.5 times improvement over standard 1 Gb Ethernet connections for faster data transfers and smooth high-res video streaming.
  • Ultrafast transfer speed
    Three PCIe 4.0 M.2 slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds on the AMD Ryzen 5000 and 3000 Series desktop processors.
  • M.2 Q-Latch
    The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
  • Unthrottled performance
    ProArt X570-Creator WiFi boasts an optimized power design layout and the memory performance needed to handle the prodigious power of the latest AMD Ryzen processors, enabling the most demanding multithreaded tasks such as 3D or video rendering and software compiling.
  • Teamed power stages
    14+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.
  • Digi+ Power control
    The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
  • ProCool II power connector
    The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
  • Chokes & capacitors
    Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
  • Multi-GPU support
    ProArt X570-Creator WiFi features three PCIe 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance in professional design, modeling, simulation and rendering applications.
  • Memory
    ProArt X570-Creator WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.
  • Comprehensive cooling design
    Maintaining system stability under heavy loads is of paramount importance, so ProArt X570-Creator WiFi employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.
  • Perfect for content creation
    ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow.
  • Industry-leading security
    Advanced security management functions from ASUS Control Center Express protects the system and confidential data.
  • USB port management
    Enable or disable the USB port or set it to Read Only to prevent data leaks.
  • Software Blacklist
    For added security, a software blacklist is available to help prevent the use of high-risk applications.
  • Registry Editor on/off
    Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.
  • ProArt Creator Hub
    A user-friendly interface helps enhance workflows via a central system that allows monitoring and control of all connected ProArt Series products, including motherboards and displays.
  • Creation first
    Network-optimization software allows users to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.
  • Two-way AI noise cancelation
    As working from home becomes the new normal, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so users can hear and be heard with crystal clarity.
  • Trusted stability
    ProArt X570-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Special Features

  • Performance to create
  • Extensive connectivity
  • Two Onboard Thunderbolt 4 USB-C
  • WiFi 6E (Gig+)
  • Marvell AQtion 10 Gbps Ethernet
  • Intel 2.5 Gb Ethernet
  • Ultrafast transfer speed
  • M.2 Q-Latch
  • Unthrottled performance
  • Teamed power stages
  • Digi+ Power control
  • ProCool II power connector
  • Chokes & capacitors
  • Multi-GPU support
  • Comprehensive cooling design
  • Perfect for content creation
  • Industry-leading security
  • USB port management
  • Software Blacklist
  • Registry Editor on/off
  • ProArt Creator Hub
  • Creation first
  • Two-way AI noise cancelation
  • Trusted stability

Product Specification

Product Type Motherboard - ATX
Chipset Type AMD X570
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Supported RAM Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.)
Supported RAM Integrity Check Non-ECC, ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALCS1200A
Compliant Standards High Definition Audio
LAN LAN
Network Controller Intel I225-V / AQtion AQC113CS
Network Interfaces 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (x16/x8 mode) ¦ 1 x PCIe 4.0 x16 (x8 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode)
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x Thunderbolt 4/USB-C Gen2 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x DisplayPort input ¦ 1 x audio line-out ¦ 1 x HDMI
Internal Interfaces 6 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features BIOS FlashBack, UEFI BIOS
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Hardware Features ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS 5X Protection III, ASUS SafeSlot Core, M.2 heatsink, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey button, ASUS ProCool II, M.2 Q-Latch
Miscellaneous Miscellaneous

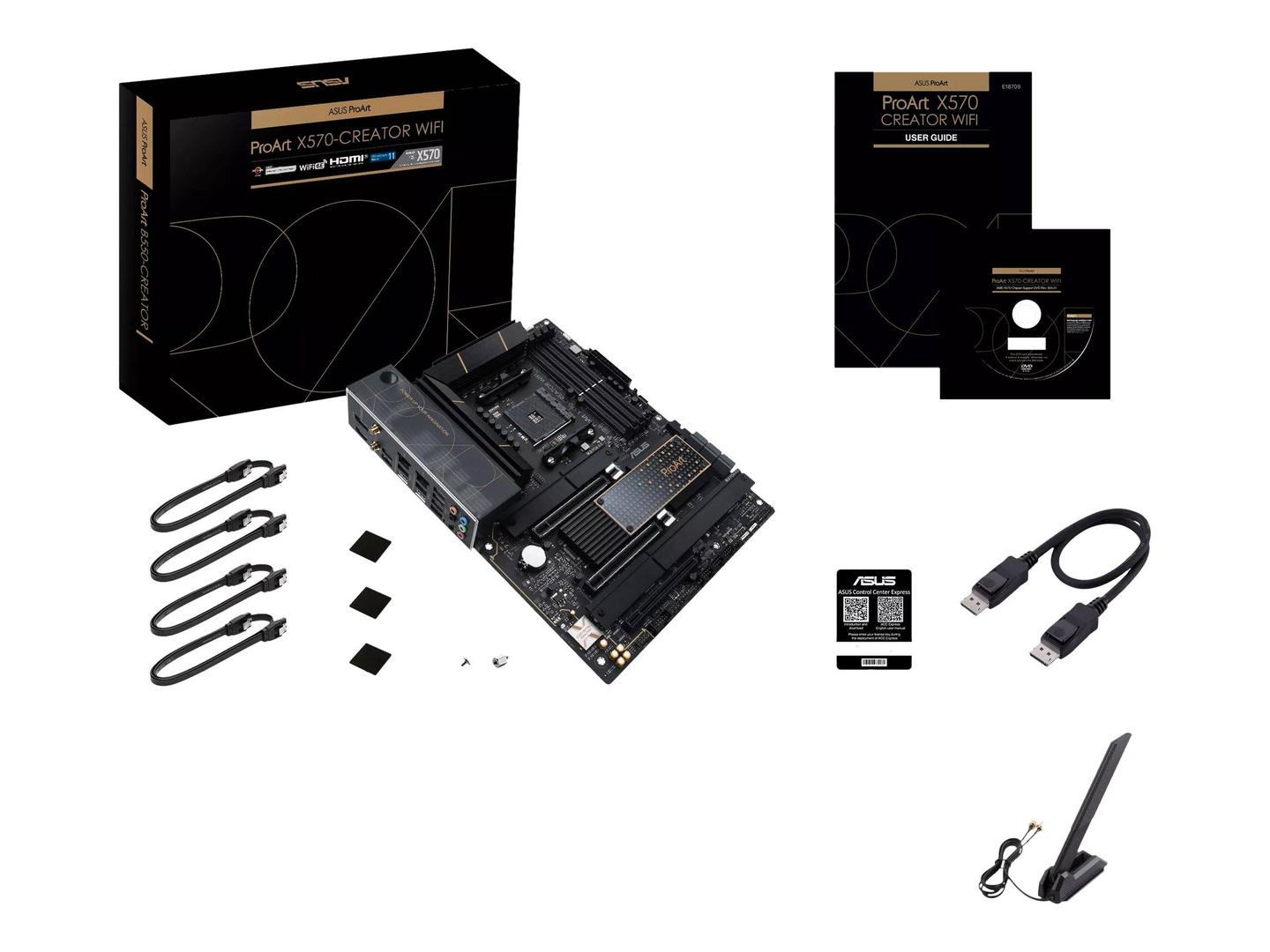

Included Accessories 1 x M.2 screw, Q-Connector, ASUS Wi-Fi moving aerial, 2 x M.2 rubber package
Cables Included 4 x Serial ATA cable ¦ 1 x DisplayPort cable
Software Included Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, DAEMON Tools, WinRAR, ASUS ProArt Creator Hub, Norton AntiVirus (Trial), ASUS AURA Creator, ASUS Control Center Express
Width 30.5 cm
Depth 24.4 cm

CPU Socket
  • Socket AM4
Χαρακτηριστικά
Product Code
04:385534
EAN Code
4711081412649
Manufacturer
Asus
