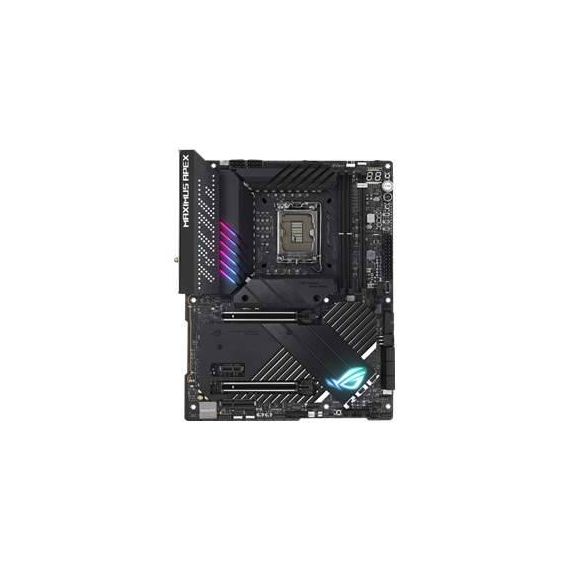

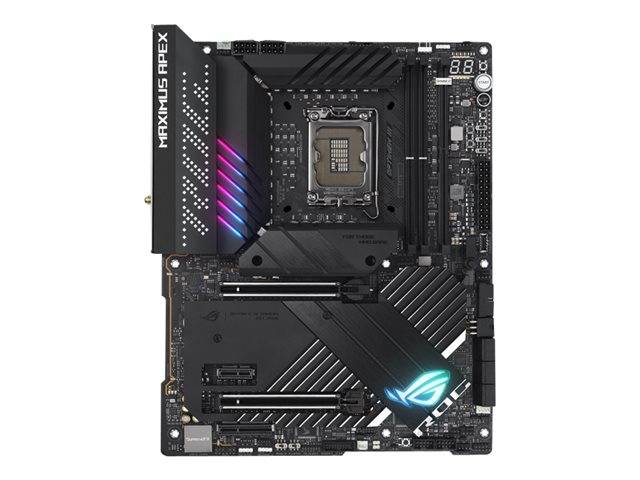

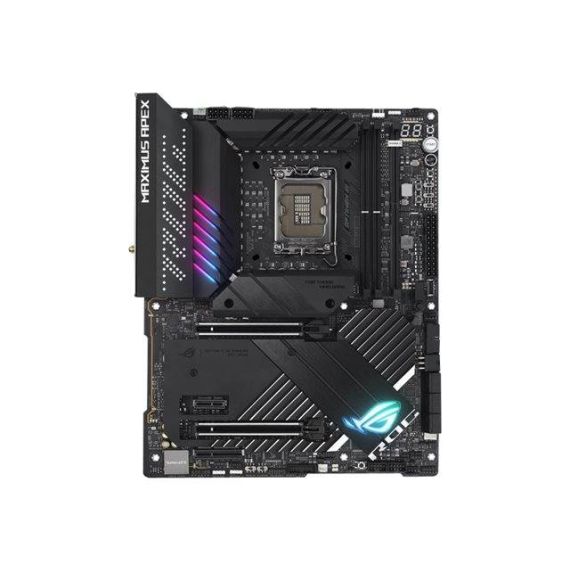

ASUS ROG MAXIMUS Z690 APEX / Motherboard / ATX / LGA1700 Socket / Z690 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / HD Audio (8-channel) | 90MB18I0-M0EAY0
90MB18I0-M0EAY0
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
ASUS ROG MAXIMUS Z690 APEX / Motherboard / ATX / LGA1700 Socket / Z690 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / HD Audio (8-channel) | 90MB18I0-M0EAY0
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z690 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (ALC4080) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x4 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 5 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB-C Gen2x2 ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS, Dual BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding technology, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, DIY Friendly Design, FlexKey button, ASUS ProCool II, GameFirst VI, Savitech SV3H712 amplifier, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, ReTry button, PCIe Slot Q-Release, CPU Socket lever protector, Quick Charge 4+, 24+0 power stages, Auto-Extreme Technology |
| Included Accessories | ROG fan stickers, RGB (RGBW) LED strip extension cable, ROG VGA holder, ROG thank you card, ROG DIMM.2 expansion card with heatsink, Q-Connector, ROG key chain, ASUS Wi-Fi moving aerial, ARGB LED strip extension cable, 3 in 1 thermistor cables pack, ROG True Voltician, PCIe 5.0 M.2 Card, 2 x M.2 Q-Latch |
| Cables Included | 6 x Serial ATA cable |
| Software Included | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 year licence), Sonic Suite Companion, MyAsus, ROG True Voltician |
| Width | 30.5 cm |
| Depth | 24.4 cm |
CPU Socket
- Socket 1700
Χαρακτηριστικά
Product Code
03:185344
EAN Code
4711081468509
Manufacturer
Asus
