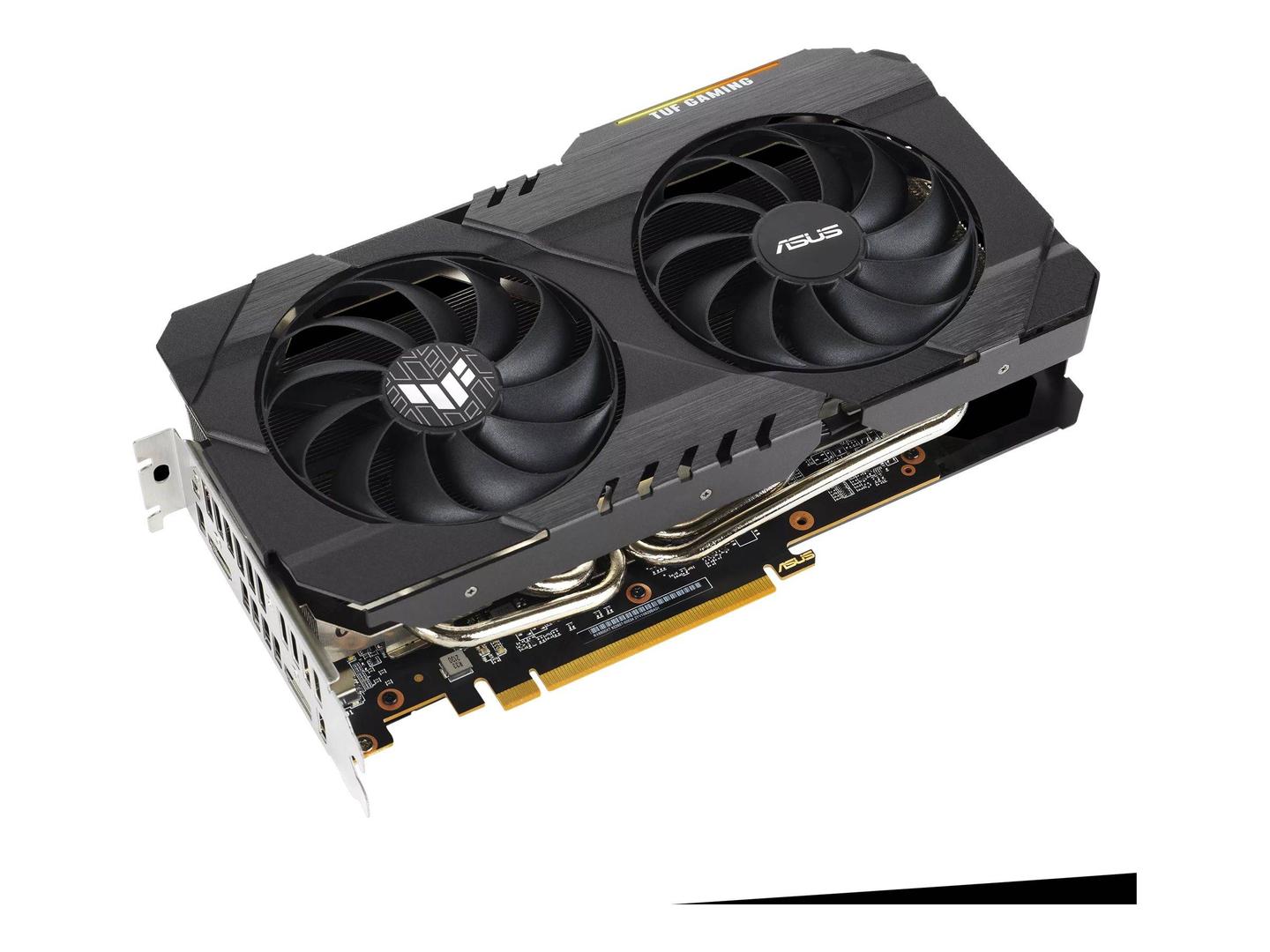

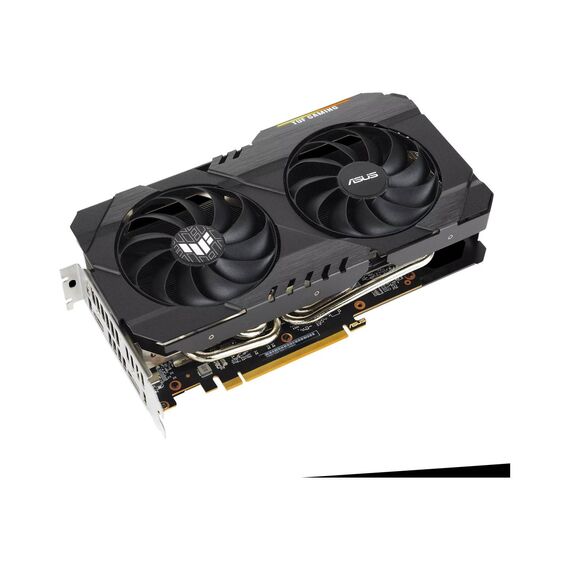

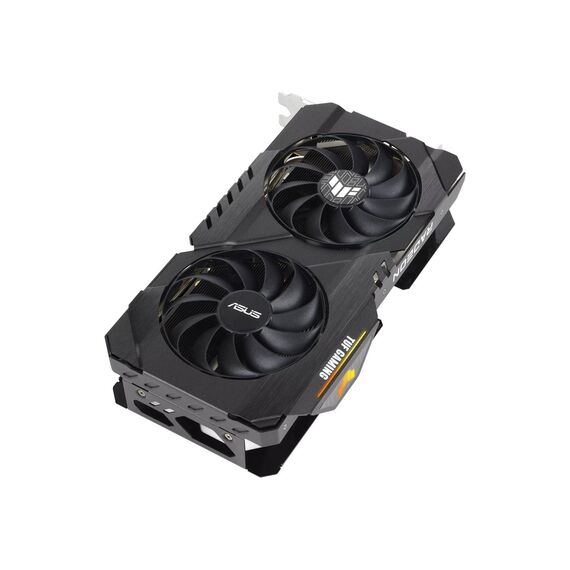

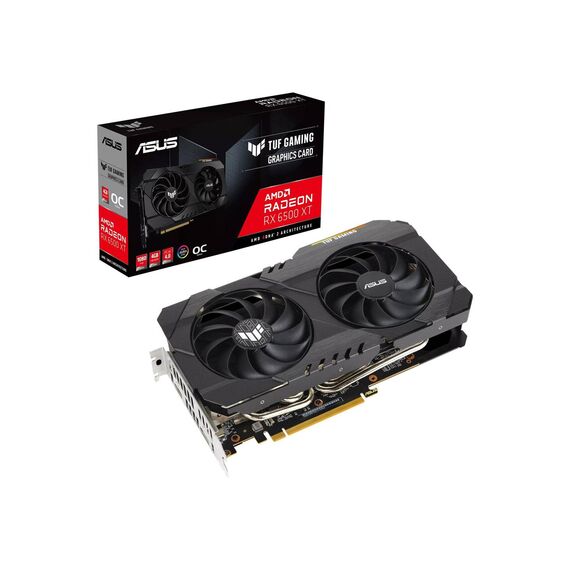

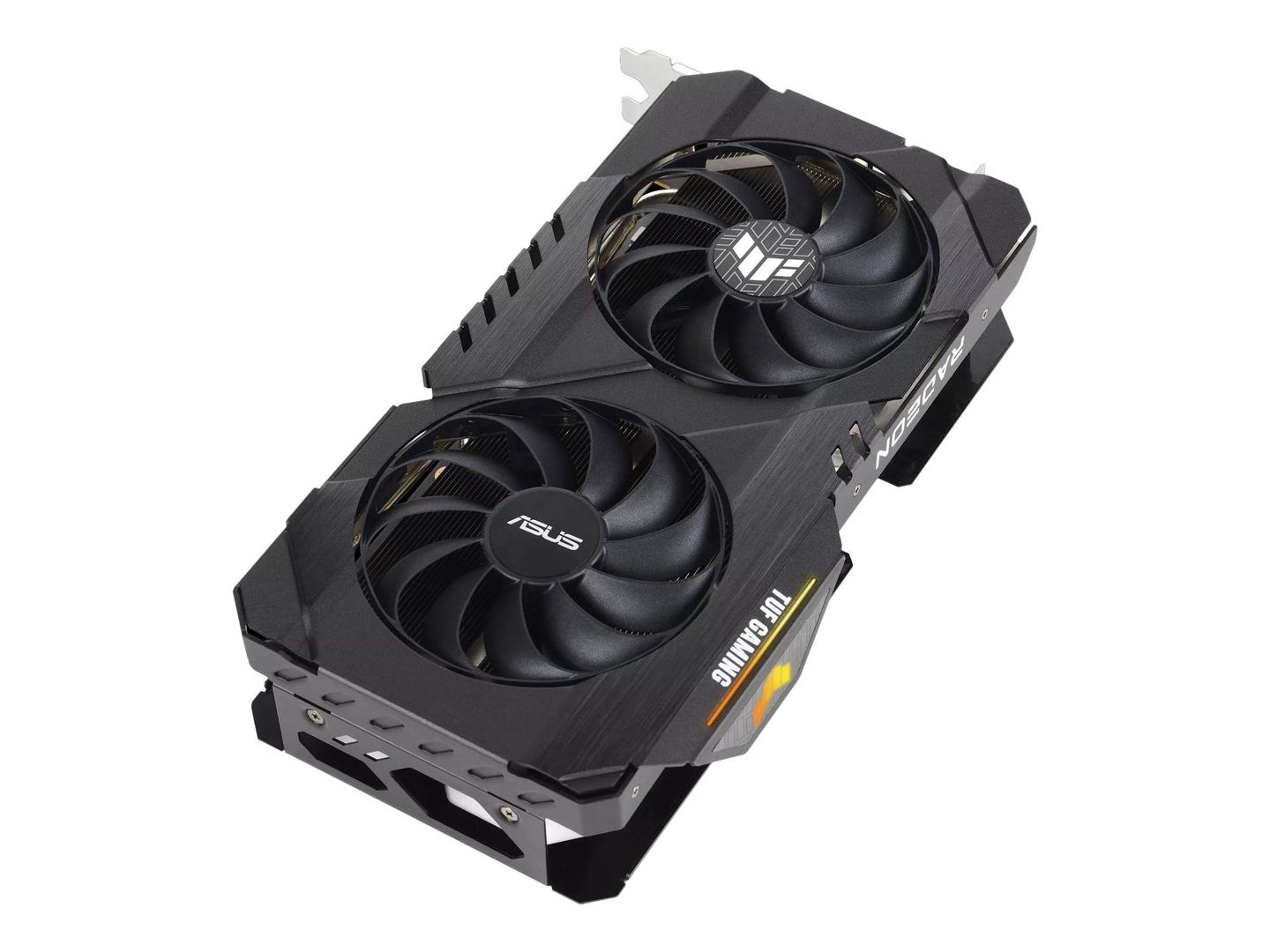

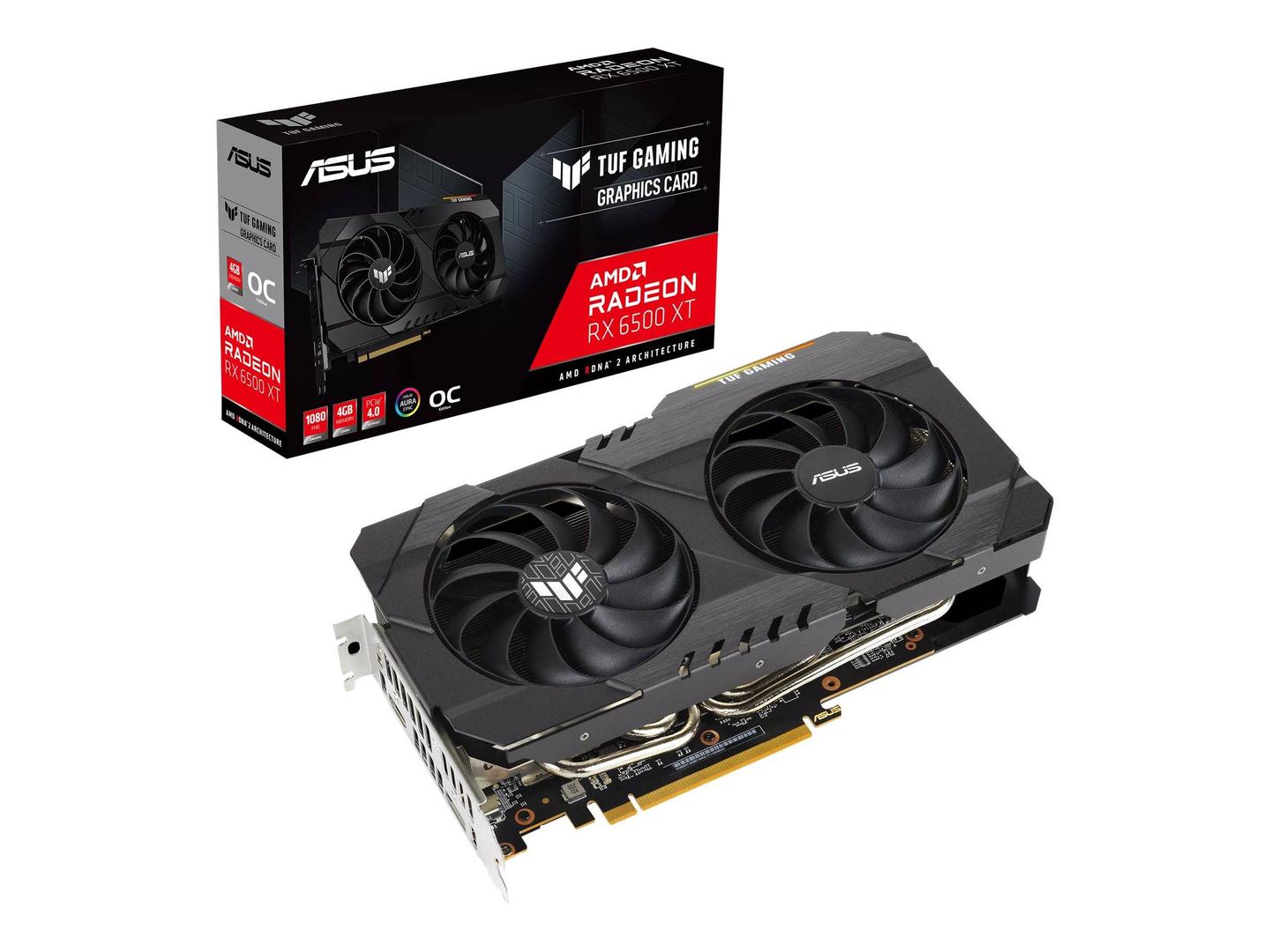

ASUS TUF Gaming Radeon RX 6500 XT OC Edition / Graphics card / Radeon RX 6500 XT / 4 GB GDDR6 / PCIe 4.0 / HDMI, DisplayPort | 90YV0HA0-M0NA00
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
- Axial-tech fan design
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a slimmed down barrier ring to provide better airflow through the cooling array.
- Quiet cunning
Fans will only start spinning when the GPU temperature hits 57 Celsius and shut off when temps drop below 50 Celsius, helping to reduce noise when the system is idling or under light load.
- 2.7-slot design
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint.
- TUF components
Robust military-grade capacitors were selected for the card's power design. They and other components are soldered to the PCB using the Auto-Extreme automated manufacturing process.
- Metal coat
A machined all-aluminum shroud creates a robust outer shell and a no-nonsense industrial design and grayscale colorway fits into any build with ease.
- Armored underside
The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows adjustment of the card's default performance profile without software.
- Functional front
The front-side RGB element can be adapted to display a range of aesthetic and functional effects, and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the Radeon RX 6500 XT, a 6-pin power connector is present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a slimmed down barrier ring that provides better airflow through the cooling array
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- A 2.7-slot design expands cooling surface area to make the most of the powerful Axial-tech fans
- An all-aluminum shroud and metal backplate enhance durability
- A vented backplate prevents hot air from recirculating through the cooling array
|Device Type||Graphics card|
|Bus Type||PCI Express 4.0|
|Graphics Engine||AMD Radeon RX 6500 XT|
|Max Resolution||7680 x 4320|
|Max Monitors Supported||2|
|Interfaces||HDMI Â¦ DisplayPort|
|API Supported||OpenGL 4.6, DirectX 12 Ultimate|
|Features||Dual Bios, AMD CrossFireX Technology, Dual ball Bearing Fan, metal wraparound backplate, GPU Tweak II, 2.7-slot Fan Cooler, variable rate shading (VRS), Axial-tech Fan Design, AMD FidelityFx, RDNA 2 Architecture, AMD Infinity Cache, DirectX Raytracing (DXR), AMD FidelityFX Super Resolution (FSR), all-aluminium shroud, HDCP|
|System Requirements||System Requirements|
|Required Power Supply||500 W|
|Additional Requirements||6 pin PCI Express power connector|
|Included Accessories||Collection card|
|Software Included||Display drivers, ASUS GPU Tweak II, AMD Radeon Software|
|Compliant Standards||HDCP 2.3, DisplayPort 1.4a|
