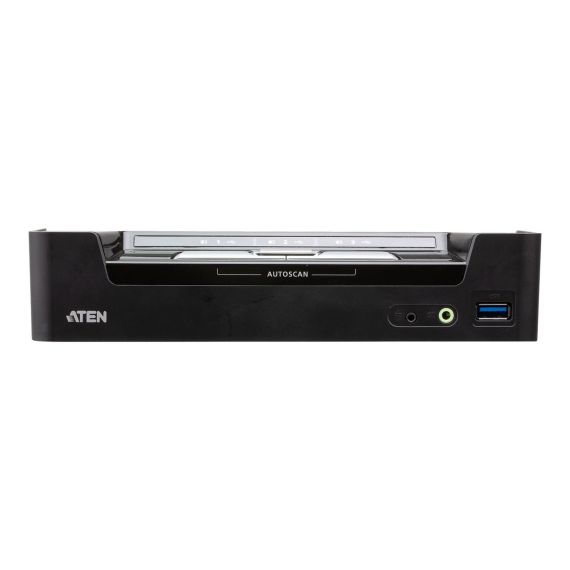

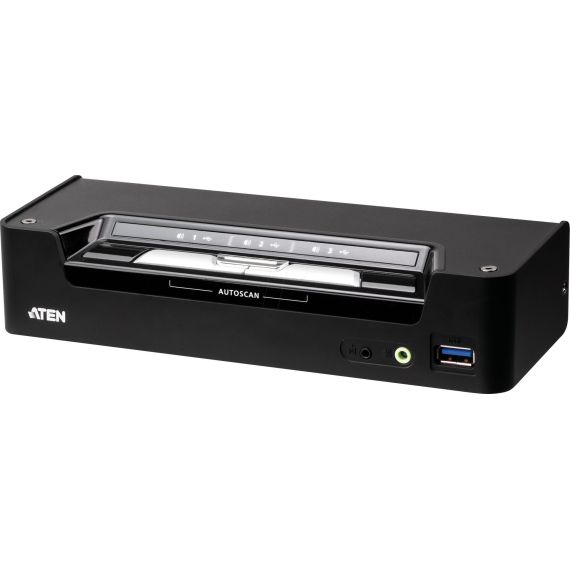

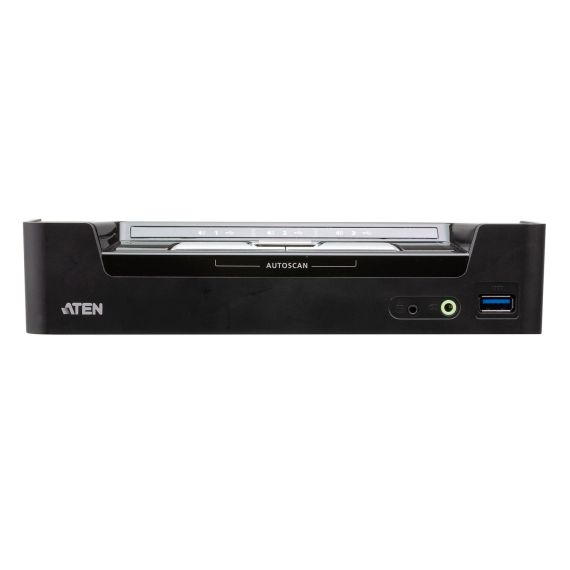

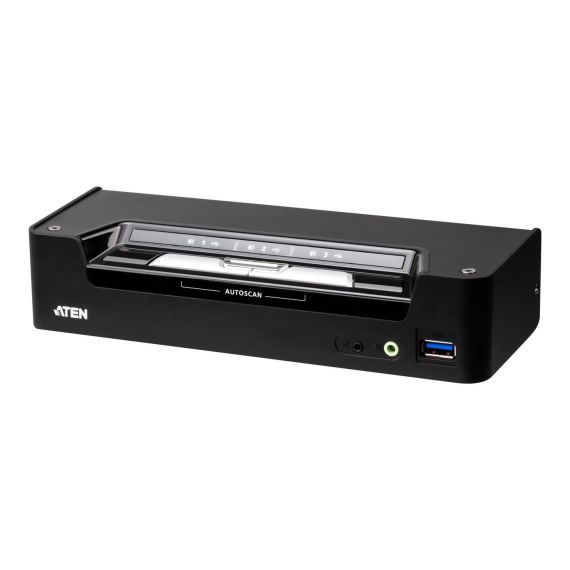

ATEN CS1953 - KVM / audio / USB switch - 3 x KVM / audio / USB - 2 local users - desktop | CS1953
CS1953
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- USB-C for space-cost efficiency
The CS1953 boasts the increasingly popular USB-C interface to facilitate a plug-n-play connection to mobile devices (laptops, tablets, smartphones) without going through a docking station, making it a true space and money saver for your desktop workspace. - DisplayPort for exceptional AV performance
The CS1953 supports DisplayPort connectivity between up to two computers, a monitor, and a mobile device (over USB-C). It brings 4K superior viewing quality to your desktop, revealing all your visual content, text and numerical digits in outstanding precision. - Plug in, power on
By enabling the USB-C device power delivery 3.0 standard, your mobile devices start charging upon connection to the CS1953, elevating your desktop productivity with even quicker mobility.
Special Fetures
- One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers and one USB-C device
- Superior video quality
- Provides USB Power Delivery 3.0 for USB-C device charging up to 45W
- Computer selection via pushbuttons, hotkeys, mouse, and remote port selector
Product Specification
| Device Type | KVM / audio / USB switch - 3 ports |
| Enclosure Type | Desktop |
| Subtype | DisplayPort |
| Ports | 3 x KVM / audio / USB |
| KVM Local Users Qty | 2 local users |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | Firmware upgradable, HDCP compliant, metal housing, DP++ technology, DisplayPort Alternate mode, USB Power Delivery (up to 45 watt) |
| Compliant Standards | Power Delivery 3.0 |
| Built-in Devices | 2-port USB 3.1 Gen 1 hub |
| Status Indicators | USB, KVM, audio |
| Expansion / Connectivity | |

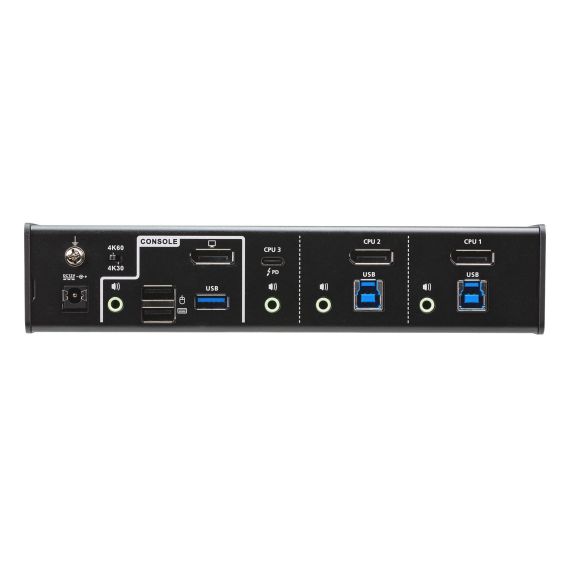

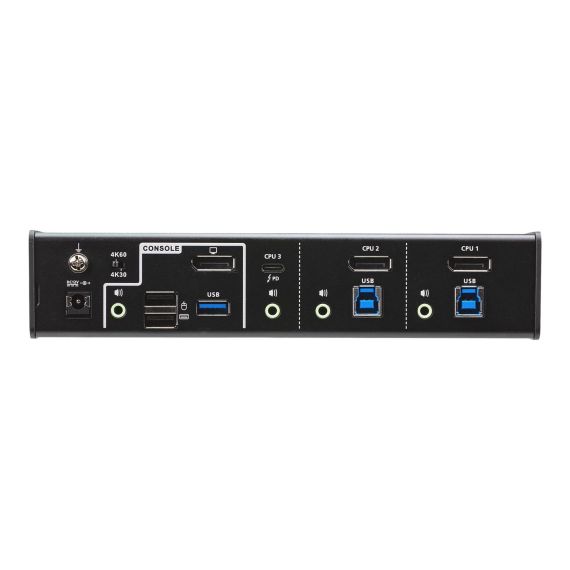

| Interfaces | 2 x keyboard (USB) / mouse (USB) Type A console <br /> 1 x DisplayPort console <br /> 1 x microphone mini-jack console <br /> 1 x headphones mini-jack console <br /> 3 x audio mini-jack <br /> 2 x USB 3.1 Gen 1 Type B <br /> 1 x USB-C <br /> 2 x DisplayPort |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V |
| Power Consumption Operational | 5.78 Watt |
| Miscellaneous | |
| Included Accessories | Remote port selector switch |
| Cables Included | 2 x DisplayPort cable <br /> 1 x USB-C cable <br /> 2 x SuperSpeed USB cable <br /> 3 x audio cable |
| Compliant Standards | DisplayPort 1.2 |
| Dimensions & Weight | |
| Width | 7.54 cm |
| Depth | 20.63 cm |
| Height | 4.4 cm |
| Weight | 500 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 ?C |
| Max Operating Temperature | 40 ?C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 ?C |
| Max Storage Temperature | 60 ?C |
Χαρακτηριστικά
Product Code
03:217861
EAN Code
4719264647529
Manufacturer
Aten
