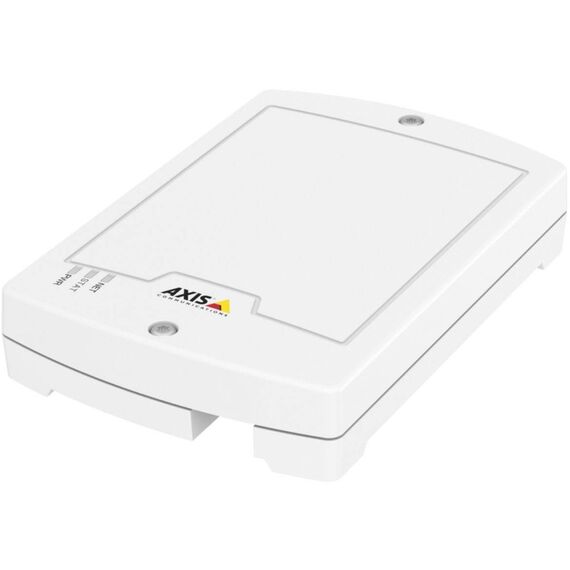

AXIS A9161 Network I/O Relay Module / Expansion module | 0821-001
Description
AXIS A9161 Network I/O Relay Module has 6 configurable I/Os with supervised inputs and a relay. The module reacts on inputs, such as signals from PIR motion detectors or switches, to trigger actions. Its open platform enables a high level of integration with AXIS A1001 Network Door Controller, network cameras, and other facility systems. AXIS A9161 also works standalone. Supplying power to I/O devices, it can extend the functionality of Axis products where additional I/Os or relays are needed. Its convenient size and enclosure makes installation easy and flexible.
AXIS A9161 Network I / O Relay Module | 0821-001
Special Features
- 6 I/Os and 1 form C relays
- 12 and 24 V DC output/input or PoE
- Based on Axis open platforms - VAPIX and ACAP
- Used with AXIS Camera Station or third-party software
Product Specification
| Device Type | Expansion module |
| Form Factor | External |
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, ARP, SMTP, FTP, DHCP, DNS, Bonjour, DDNS, RTP, RTCP, SFTP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Features | DHCP support, ARP support, DiffServ support, IPv6 support, IP address filtering, Quality of Service (QoS), IPv4 support, e-mail notification, passive PoE supported |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, UPnP |
| RAM | 256 MB |
| Flash Memory | 256 MB |
| Interfaces | 1 x 100Base-TX (PoE) - RJ-45 (internal) ¦ 6 x digital input/output - terminal block (internal) ¦ 1 x relay output - terminal block (internal) |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, C-Tick Class B, UL 2043, EN 61000-6-2, EN50130-4, IEC 60950-1, EN 60950-1, VCCI Class B, EN 50581, AS/NZS CISPR 22 Class B, FCC Part 15 Class B |
| Width | 3.5 cm |
| Depth | 17.8 cm |
| Height | 12 cm |
| Weight | 500 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
Features - AXIS - 0821-001
More Details
Product Code
B092935
EAN Code
7331021049901
Manufacturer
AXIS
