AXIS A9161 Network I/O Relay Module / Expansion module | 0821-001

0821-001
314.77

(374.58  με Φ.Π.Α.)
Σε Απόθεμα
Αποστολή από Γερμανία εντός 2-8 εργάσιμων ημερών.

+
Delivery
Payment options
Product CodeB092935 EAN Code7331021049901 ManufacturerAXIS

AXIS A9161 Network I/O Relay Module / Expansion module | 0821-001

Description

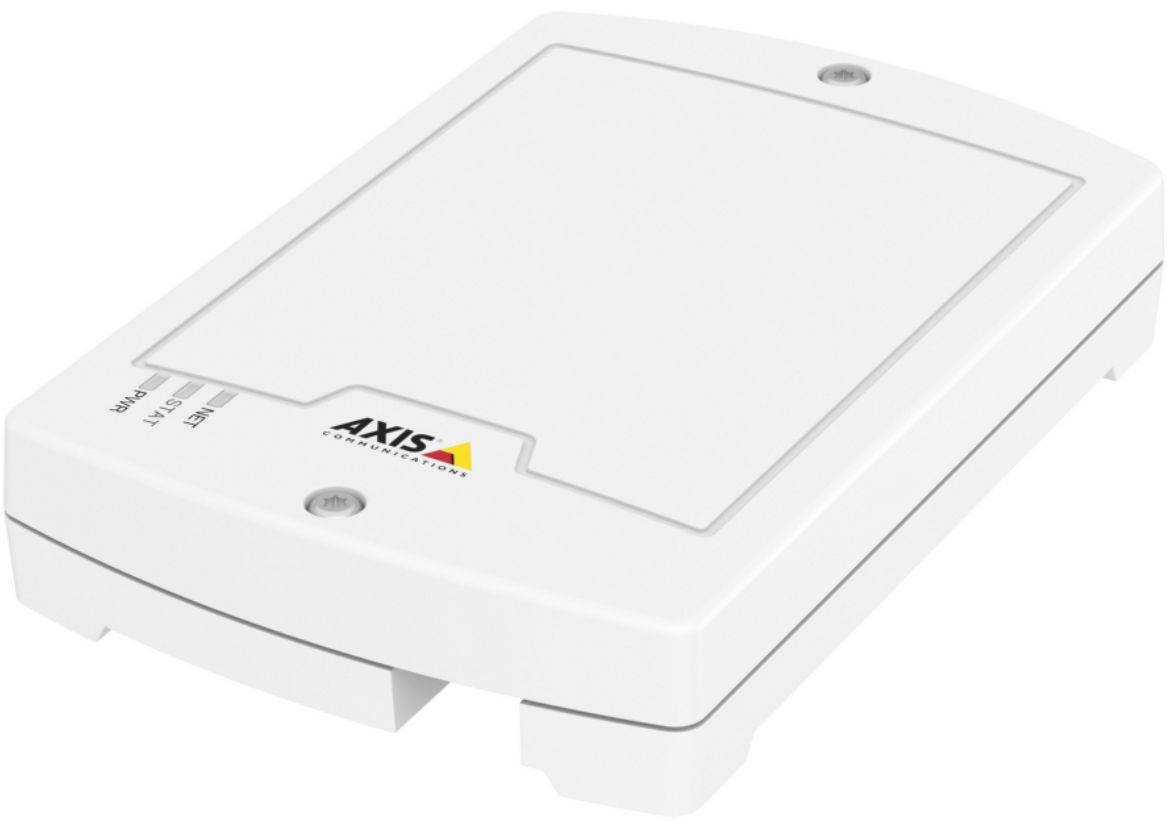

AXIS A9161 Network I/O Relay Module has 6 configurable I/Os with supervised inputs and a relay. The module reacts on inputs, such as signals from PIR motion detectors or switches, to trigger actions. Its open platform enables a high level of integration with AXIS A1001 Network Door Controller, network cameras, and other facility systems. AXIS A9161 also works standalone. Supplying power to I/O devices, it can extend the functionality of Axis products where additional I/Os or relays are needed. Its convenient size and enclosure makes installation easy and flexible.

AXIS A9161 Network I / O Relay Module | 0821-001

Special Features

  • 6 I/Os and 1 form C relays
  • 12 and 24 V DC output/input or PoE
  • Based on Axis open platforms - VAPIX and ACAP
  • Used with AXIS Camera Station or third-party software


Product Specification

Device Type Expansion module
Form Factor External
Connectivity Technology Wired
Network / Transport Protocol TCP/IP, UDP/IP, NTP, ICMP/IP, ARP, SMTP, FTP, DHCP, DNS, Bonjour, DDNS, RTP, RTCP, SFTP
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Features DHCP support, ARP support, DiffServ support, IPv6 support, IP address filtering, Quality of Service (QoS), IPv4 support, e-mail notification, passive PoE supported
Compliant Standards IEEE 802.3af, IEEE 802.1x, UPnP
RAM 256 MB
Flash Memory 256 MB
Interfaces 1 x 100Base-TX (PoE) - RJ-45 (internal) ¦ 6 x digital input/output - terminal block (internal) ¦ 1 x relay output - terminal block (internal)
Compliant Standards EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, C-Tick Class B, UL 2043, EN 61000-6-2, EN50130-4, IEC 60950-1, EN 60950-1, VCCI Class B, EN 50581, AS/NZS CISPR 22 Class B, FCC Part 15 Class B
Width 3.5 cm
Depth 17.8 cm
Height 12 cm
Weight 500 g
Service & Support Limited warranty - 3 years
Min Operating Temperature -40 °C
Max Operating Temperature 55 °C
Humidity Range Operating 20 - 85% (non-condensing)
