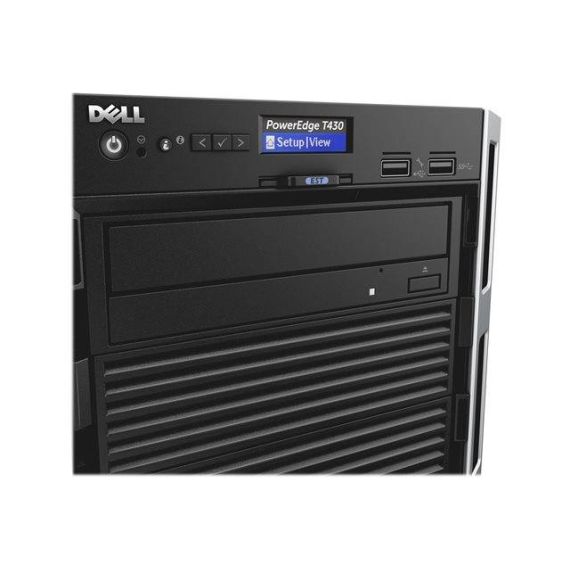

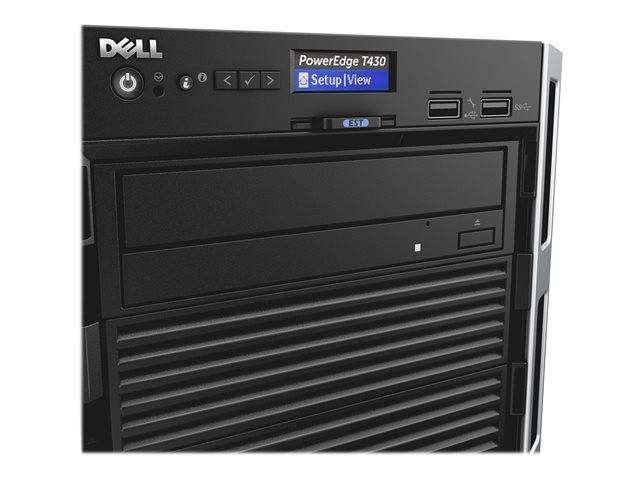

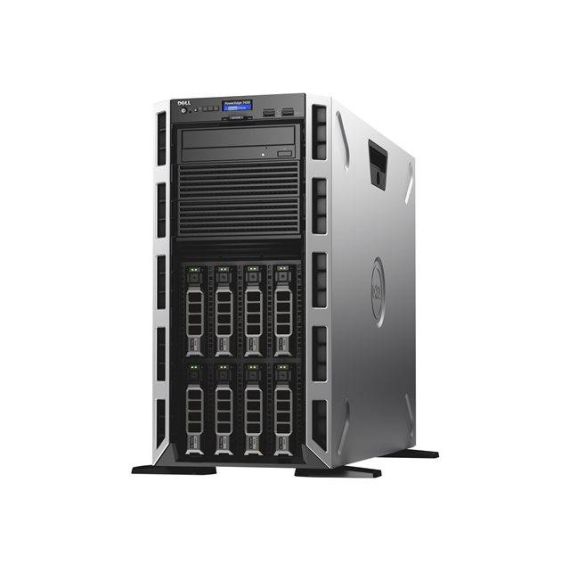

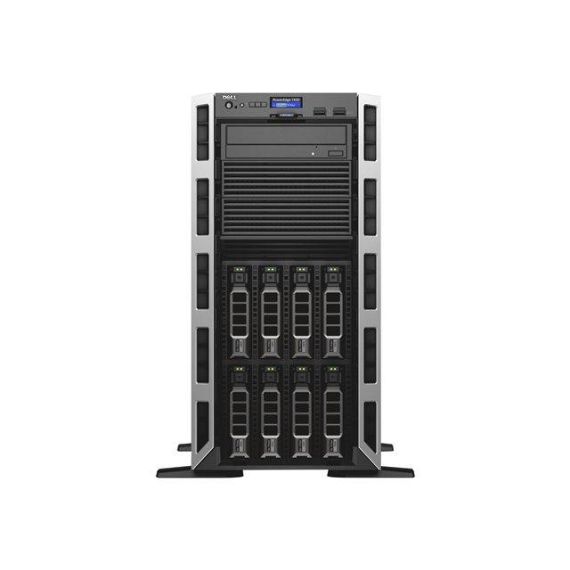

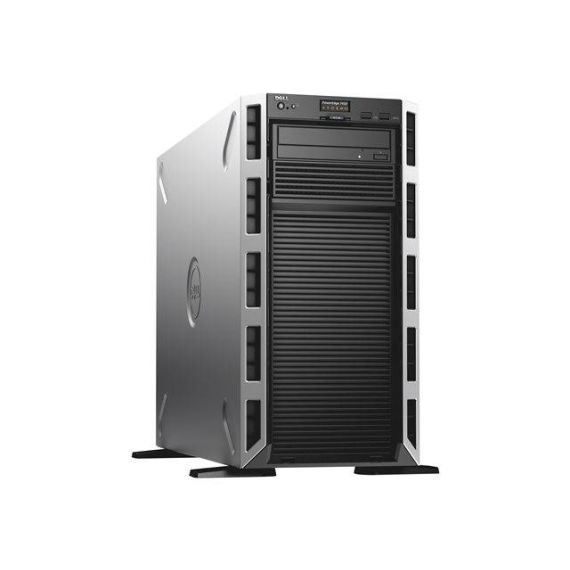

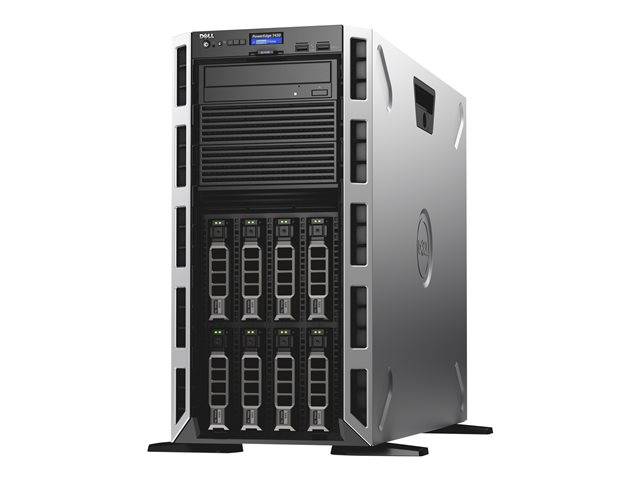

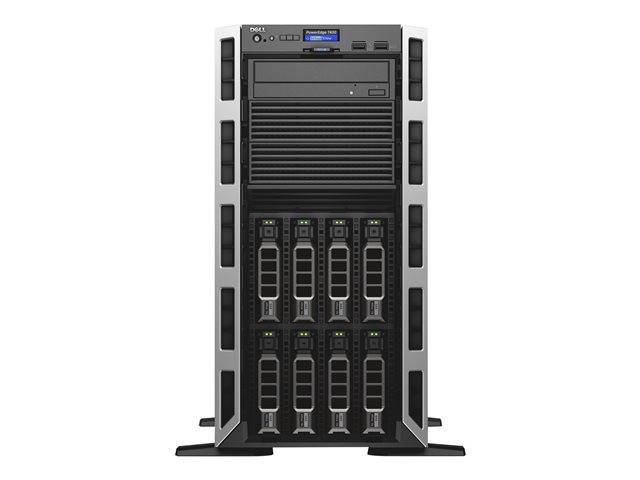

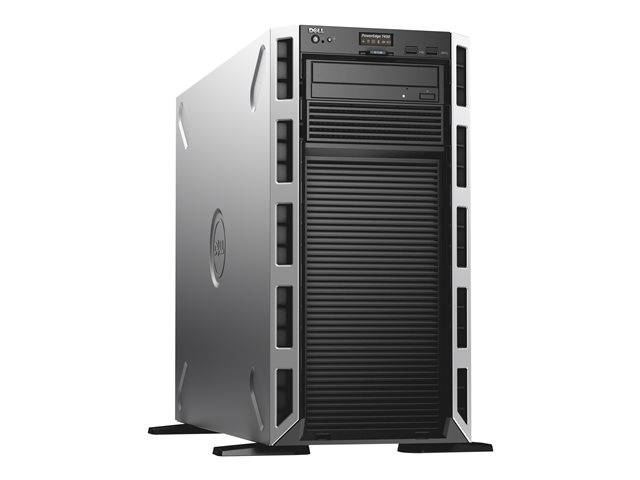

Dell PowerEdge T430 / Server / tower / 5U / 2-way / Xeon E5-2609V4 / 1.7 GHz / RAM 8 GB / SATA / hot-swap 3.5" / HDD 1 TB / DVD-Writer / Matrox G200 / GigE / no OS | 1RWH6
Dell PowerEdge T430 / Server / tower / 5U / 2-way / Xeon E5-2609V4 / 1.7 GHz / RAM 8 GB / SATA / hot-swap 3.5" / HDD 1 TB / DVD-Writer / Matrox G200 / GigE / no OS | 1RWH6
|
Description The PowerEdge T430 tower server delivers powerful 2-socket performance, expandability and quiet operation to small businesses and organizations. The T430 is an ideal choice for a wide range of office workloads, such as: Workgroup collaboration and productivity; Mail and messaging; File and print serving; Web serving.Accelerate your applications with the latest Intel Xeon processor E5-2600 v4 product family and boost memory and I/O performance with: DDR4 memory that provides as much as 15 percent greater memory bandwidth than previous-generation DDR3 RAM; 12 DIMM slots that enable you to expand memory capacity as needed; Six PCIe Gen3 slots that deliver twice the data throughput compared to PCIe Gen2.A highly flexible design lets you deploy server performance where it's needed and adapt as your requirements change over time. Install the T430 in a range of environments, thanks to a rackable tower design, short 22-inch depth and quiet acoustics. Expand your storage with your choice of internal hard-drive form factors and capacities, while protecting data with RAID options. Adapt to evolving workload demands with an expandable, virtualization-ready platform.Save time and reduce potential for error with simplified, intuitive systems management, and help reduce costs with energy-efficient features. Simplify administration by automating deployment, management and updates with the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller. Control server availability more effectively by monitoring and managing the health and availability of PowerEdge servers anytime, anywhere through OpenManage Mobile and a handheld device. Harness your budget with energy-efficient processors, memory and power supplies. Fresh Air 2.0 configurations allow you to operate at extended temperatures without chilled air. Special Features
Product features
|
Product Specification
| Type | Server |
| Product Form Factor | Tower - 5U |
| Built-in Devices | Status LCD |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Colour | Black |
| CPU | Intel Xeon E5-2609V4 / 1.7 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C612 |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| Installed Size | 8 GB / 384 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Features | Registered, single rank |
| Configuration Features | 1 x 8 GB |
| Type | HDD - hot-swap |
| Capacity | 1 x 1 TB |
| Interface Type | SATA |
| Spindle Speed | 7200 rpm |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | Dell PERC H330 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Type | DVD-Writer |
| Monitor Type | None. |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Integrated Dell Remote Access Controller 8 Express (iDRAC8) |
| Bays | 8 (total) / 7 (free) x hot-swap 3.5" ¦ 1 (total) / 0 (free) x external 5.25" |
| Slots | 1 PCIe 2.0 x4 - half-length, full-height ¦ 1 PCIe 2.0 x1 - half-length, full-height ¦ 2 PCIe 3.0 x16 - full-length, full-height ¦ 2 PCIe 3.0 x8 - half-length, full-height ¦ 2 (total) / 1 (free) x CPU ¦ 12 (total) / 11 (free) x DIMM 288-pin |
| Interfaces | 6 x USB 2.0 (1 front, 5 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management (NIC) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x serial ¦ 2 x USB 3.0 (1 front, 1 rear) |
| Pricing Type | Build To Plan (BTP) |
| Manufacturer Selling Program | Dell Smart Value |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 495 Watt |
| OS Provided | No operating system |
| Service & Support | Limited warranty - 1 year - response time: next business day |
| Width | 30.45 cm |
| Depth | 54.22 cm |
| Height | 44.33 cm |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 80% |
