Elo Open-Frame Touchmonitors 2293L / Rev B / LED monitor / 21.5" / open frame / touchscreen / 1920 x 1080 Full HD (1080p) / 250 cd/m / 1000:1 / 5 ms / HDMI, VGA, DisplayPort / black | E327345
|

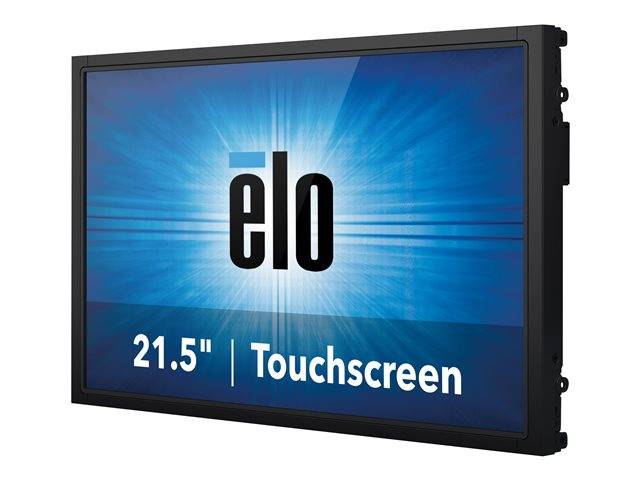

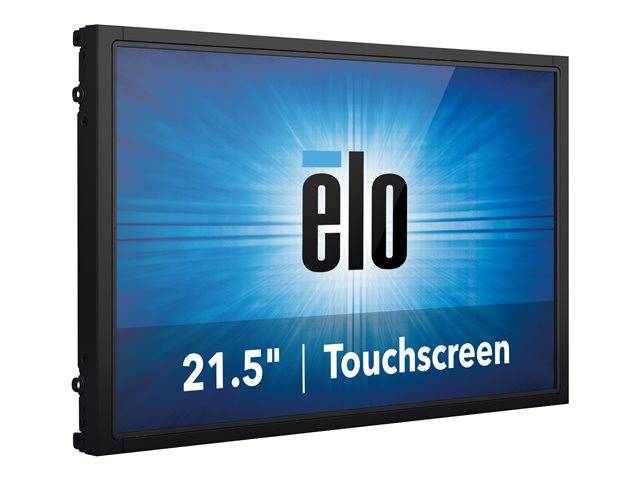

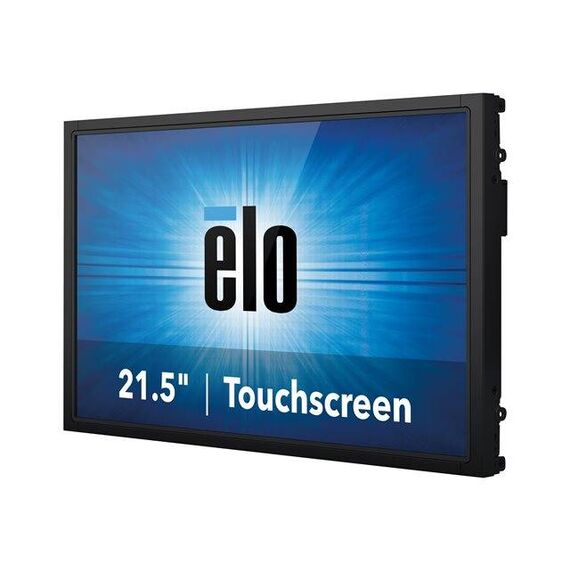

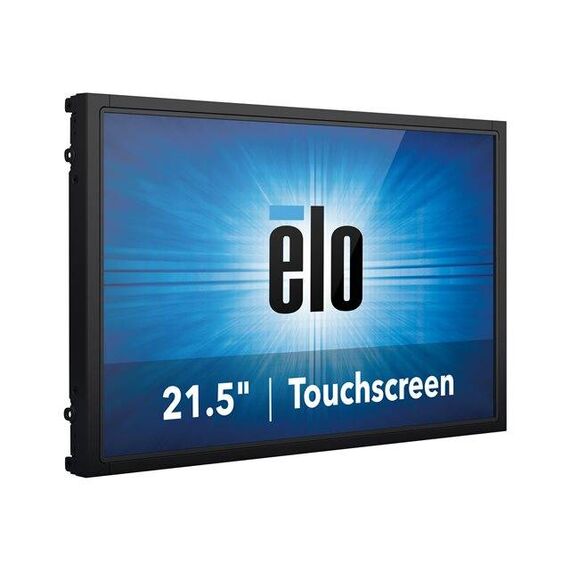

Description The Elo 2293L 22-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 2293L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 2293L open is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Elo Open-Frame Touchmonitors 2293L / Rev B | E327345Special Features
|
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 21.5" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 5 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Backlight Technology | LED backlight |
| Features | Zero-Bezel Design, IntelliTouch Surface Acoustic Wave |
| Colour | Black |
| Dimensions (WxDxH) | 51.18 cm x 4.2 cm x 29.82 cm |
| Weight | 5.1 kg |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Intellitouch SAW |
| Interfaces | USB (Type B) ¦ VGA ¦ DisplayPort ¦ Management (RJ-45) ¦ HDMI ¦ Serial (DB-9) |
| Flat Panel Mount Interface | 100 x 100 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, IMERC |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 18 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Χαρακτηριστικά
Product Code
0V00611
EAN Code
0815335025846
Manufacturer
Elo Touch Solutions
