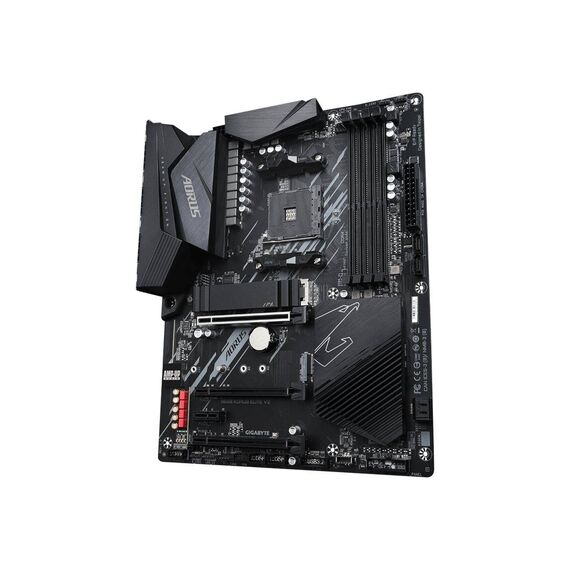

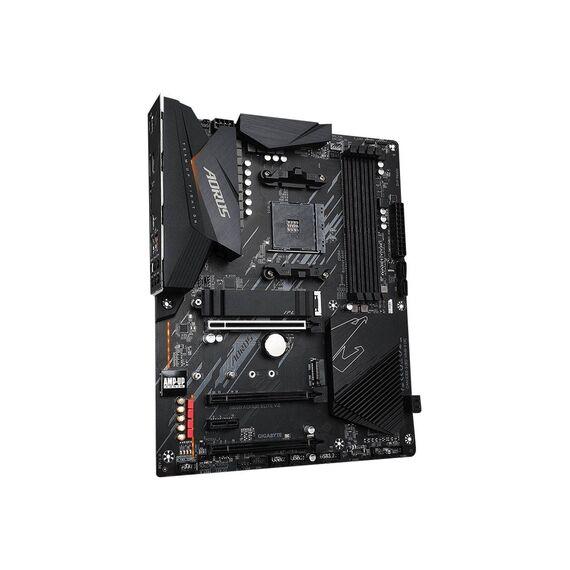

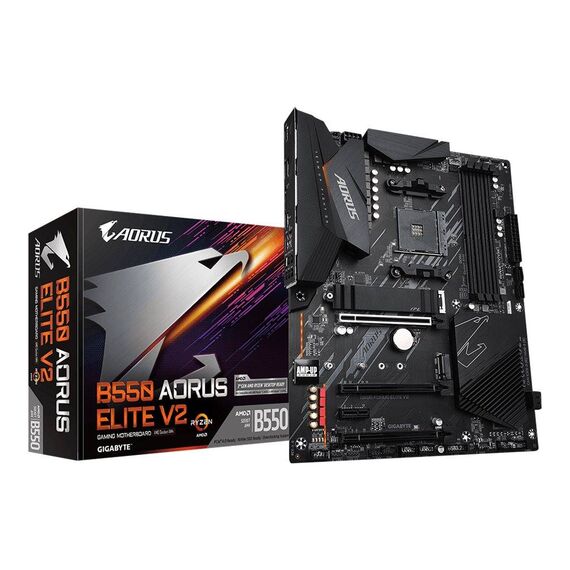

Gigabyte B550 AORUS Elite V2 / 1.0 / motherboard / ATX / Socket AM4 / AMD B550 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B550 AORUS ELITE V2
Please sign in so that we can notify you about a reply
Product Features
- Ultimate power design
B550 AORUS motherboards equip the ultimate power solution which is power balanced. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiasts. - Unparalleled performance
GIGABYTE realizes that customers won't stop chasing a better computing performance. GIGABYTE offers plenty of M.2 storage with thermal guards to ensure unthrottled performance. - Advanced thermal solution
Unthrottled performance is guaranteed by the advanced thermal solution which includes enlarged heatsinks, high-quality thermal conductivity pads and thermal guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. - Powerful connectivity
B550 AORUS motherboards provide all network, storage, and Wi-Fi connectivity to keep you up to speed. - Hi-fi audio system
For enthusiasts, sound quality is essential to the gaming experience. B550 motherboards are equipped with high-quality audio components to provide a superb audio experience. - Ultra-durable construction
GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, it uses high-quality components on B550 motherboards.
Special Features
- Advanced thermal design with enlarged surface heatsinks
- Durable PCIe 4.0 x16 slot
- Blazing-fast LAN with bandwidth management
- Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for multiple displays
- Supports addressable LED & RGB LED strips
- Pre-installed I/O shield for easy and quick installation
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Graphics | Graphics |
| Max Allocated RAM Size | 16 GB |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1200 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x16 (x1 mode) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |

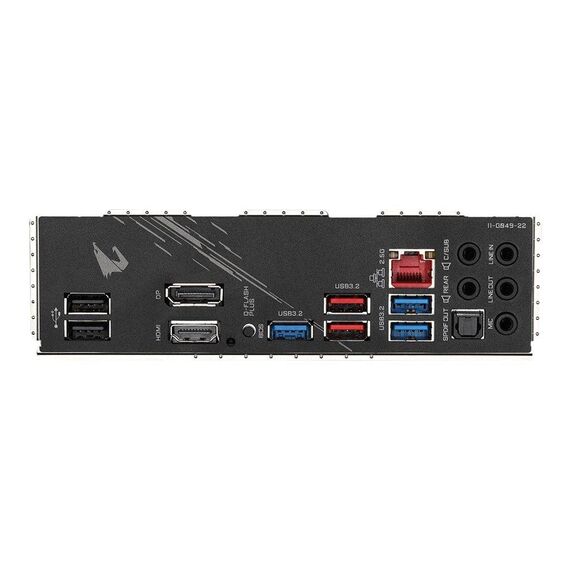

| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x DisplayPort ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate |
| Hardware Features | Q-Flash, 12+2 Phase Power Design, On/Off Charge, GIGABYTE AMP-UP Audio, 2x Copper PCB, Q-Flash Plus, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0 |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - B550 AORUS ELITE V2
CPU Socket
- Socket AM4
More Details
Product Code
04:338301
EAN Code
4719331809898
Manufacturer
GigaByte
