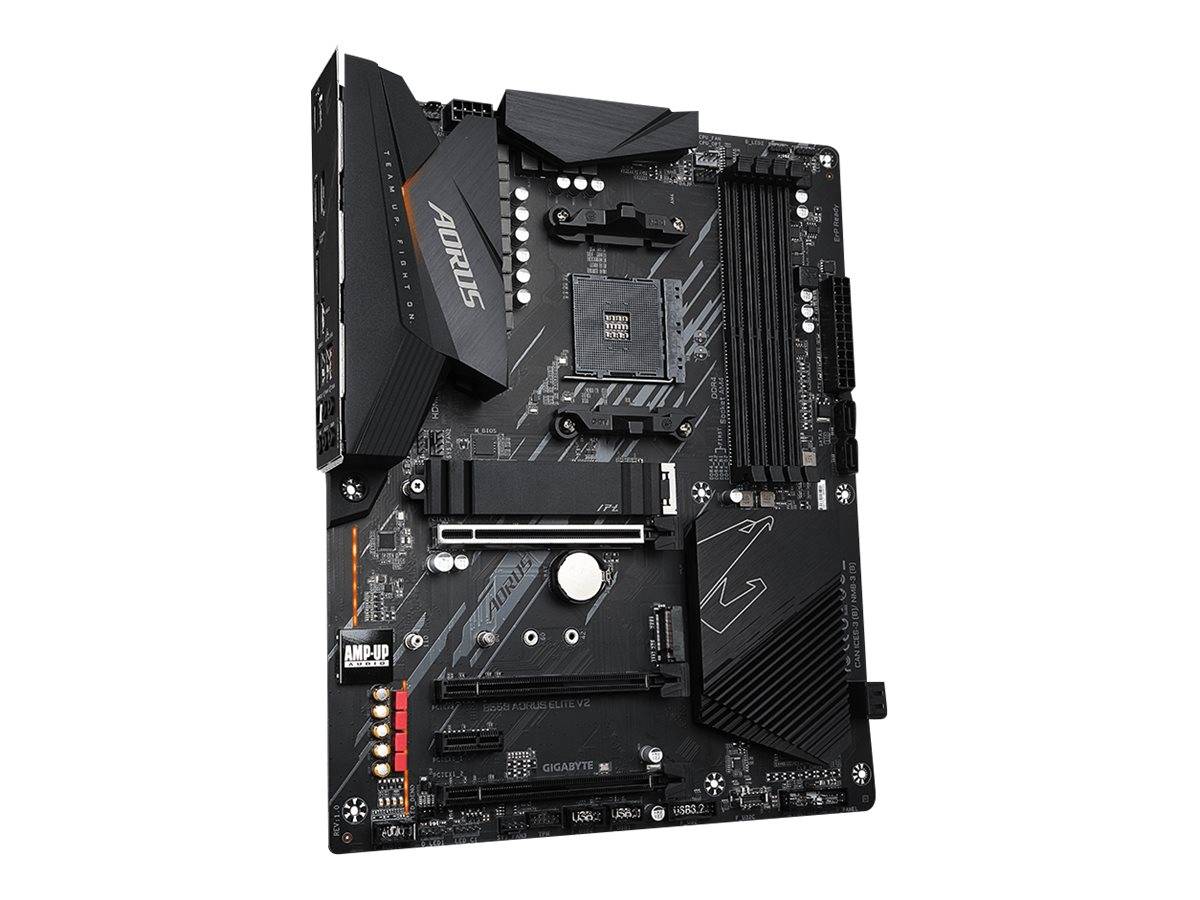

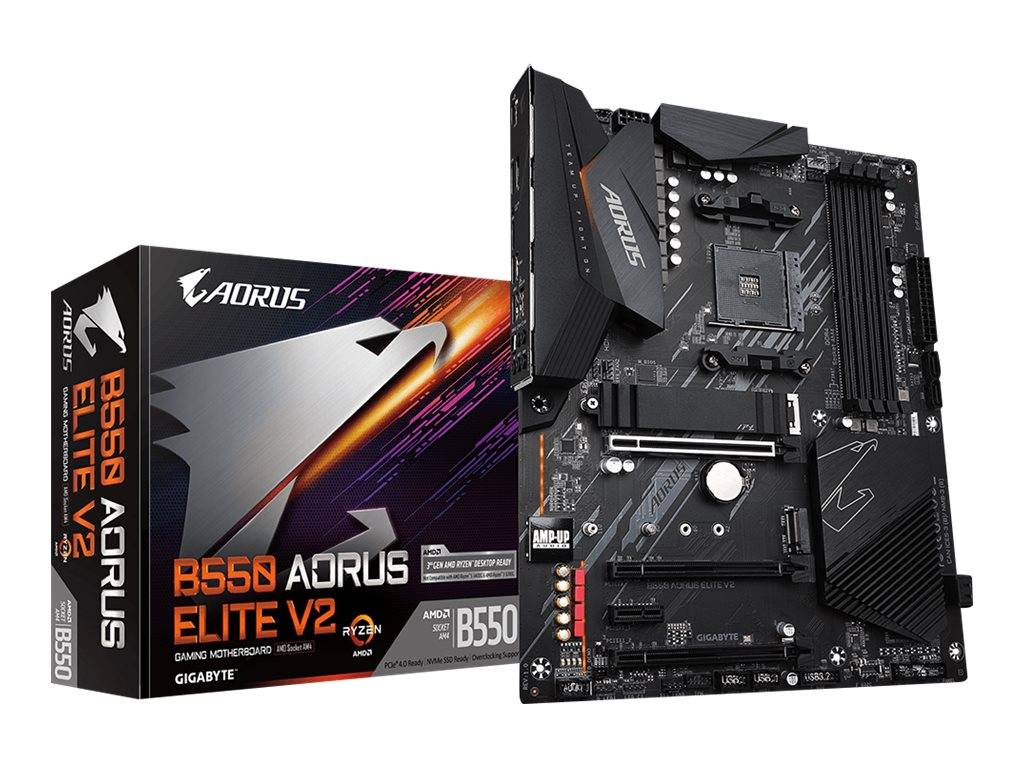

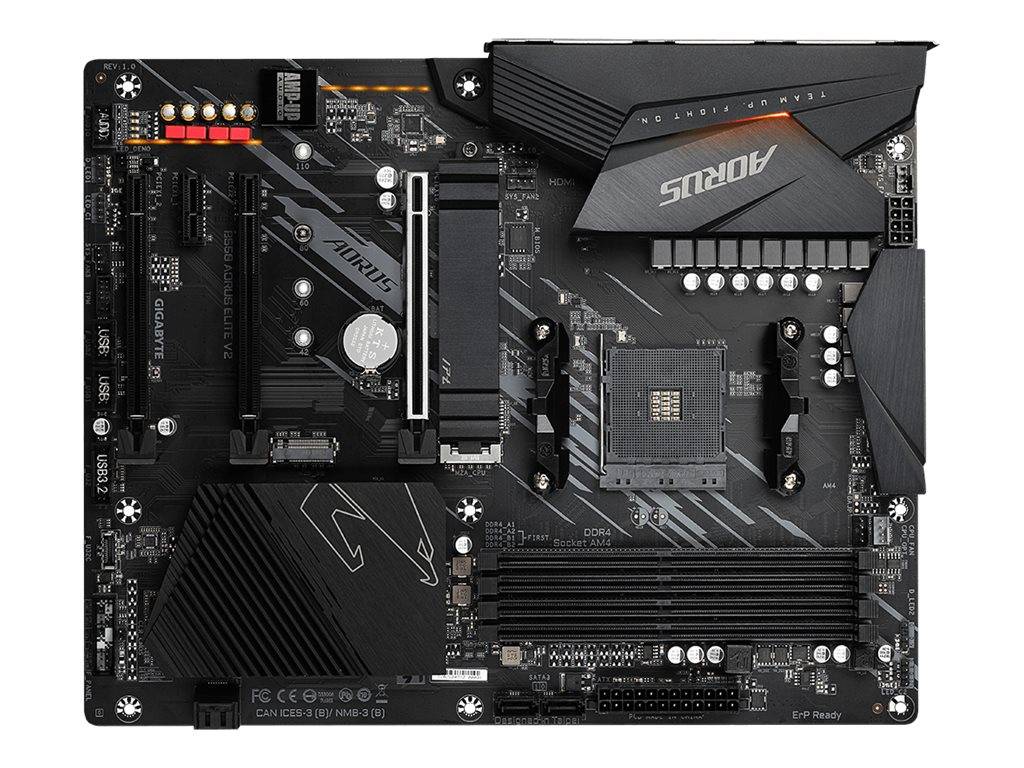

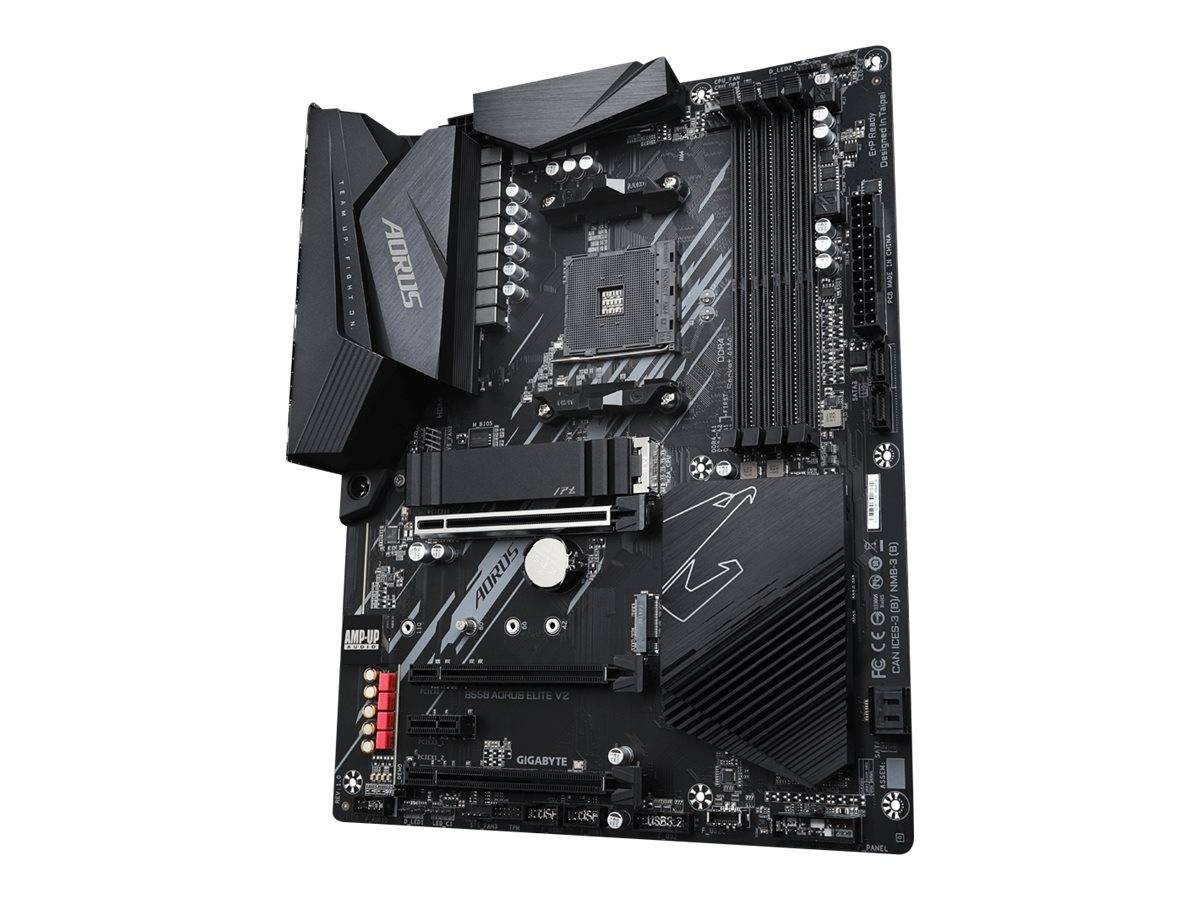

Gigabyte B550 AORUS Elite V2 / 1.0 / motherboard / ATX / Socket AM4 / AMD B550 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B550 AORUS ELITE V2

(174.01 με Φ.Π.Α.) Κερδίζετε: 12.72
Διαθεσιμότητα: 27 Είδη
Standard DeliveryStandard delivery εντός 4 με 8 εργάσιμων ημερών.
Find similar
Payment options
Product Code04:338301 EAN Code4719331809898 ManufacturerGigaByte CPU SocketSocket AM4

Product Features

  • Ultimate power design
    B550 AORUS motherboards equip the ultimate power solution which is power balanced. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiasts.
  • Unparalleled performance
    GIGABYTE realizes that customers won't stop chasing a better computing performance. GIGABYTE offers plenty of M.2 storage with thermal guards to ensure unthrottled performance.
  • Advanced thermal solution
    Unthrottled performance is guaranteed by the advanced thermal solution which includes enlarged heatsinks, high-quality thermal conductivity pads and thermal guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading.
  • Powerful connectivity
    B550 AORUS motherboards provide all network, storage, and Wi-Fi connectivity to keep you up to speed.
  • Hi-fi audio system
    For enthusiasts, sound quality is essential to the gaming experience. B550 motherboards are equipped with high-quality audio components to provide a superb audio experience.
  • Ultra-durable construction
    GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, it uses high-quality components on B550 motherboards.

Special Features

  • Advanced thermal design with enlarged surface heatsinks
  • Durable PCIe 4.0 x16 slot
  • Blazing-fast LAN with bandwidth management
  • Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for multiple displays
  • Supports addressable LED & RGB LED strips
  • Pre-installed I/O shield for easy and quick installation

Product Specification

Product Type Motherboard - ATX
Chipset Type AMD B550
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
Supported RAM Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.)
Supported RAM Integrity Check Non-ECC, ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics Graphics
Max Allocated RAM Size 16 GB
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC1200
Compliant Standards High Definition Audio
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x16 (x1 mode) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 1 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2

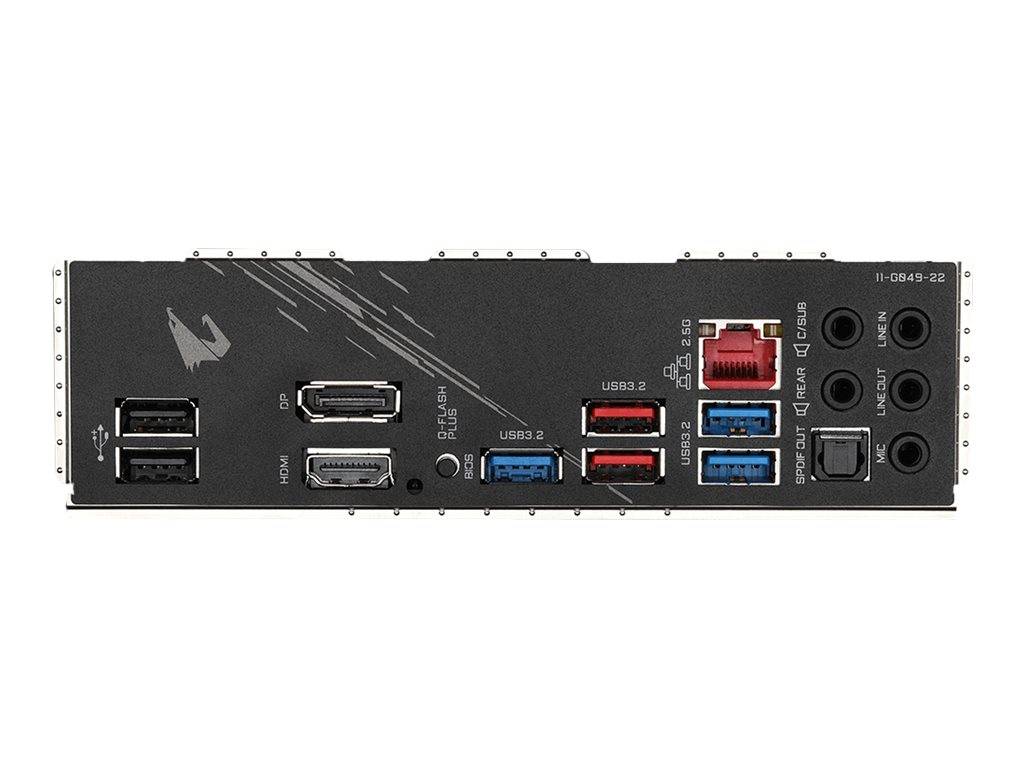

Interfaces 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x DisplayPort ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack
Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate
Hardware Features Q-Flash, 12+2 Phase Power Design, On/Off Charge, GIGABYTE AMP-UP Audio, 2x Copper PCB, Q-Flash Plus, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0
Miscellaneous Miscellaneous
Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Width 30.5 cm
Depth 24.4 cm

CPU Socket
  • Socket AM4
