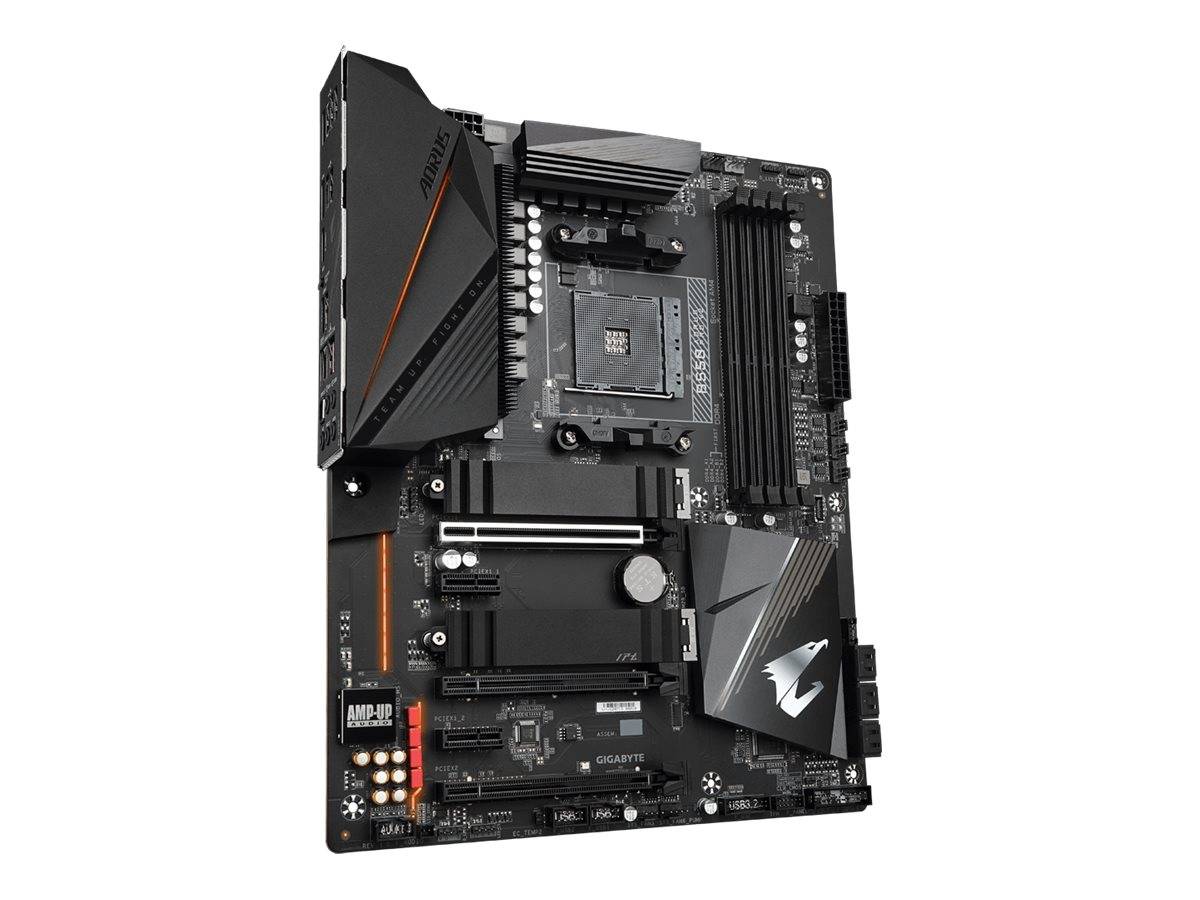

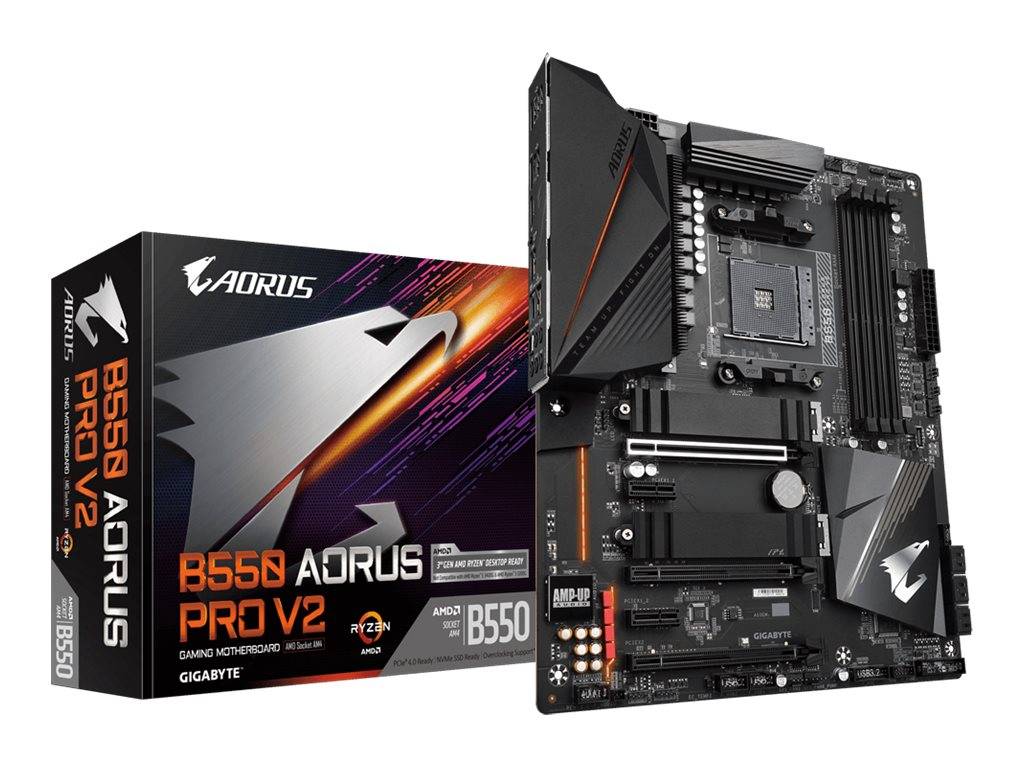

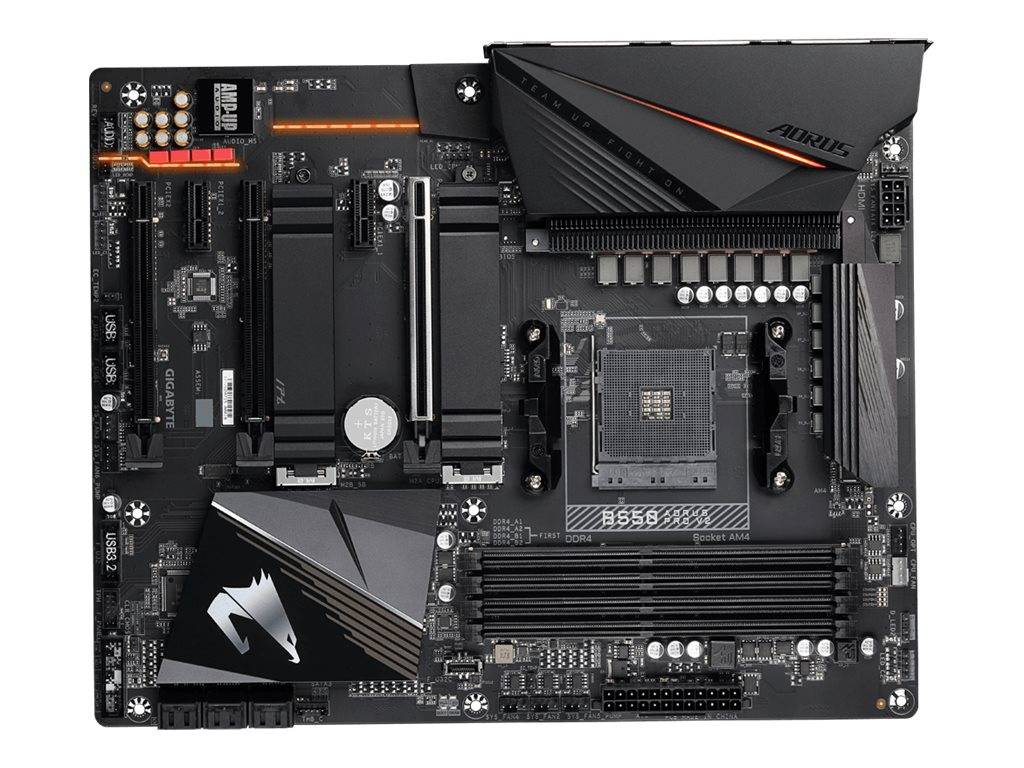

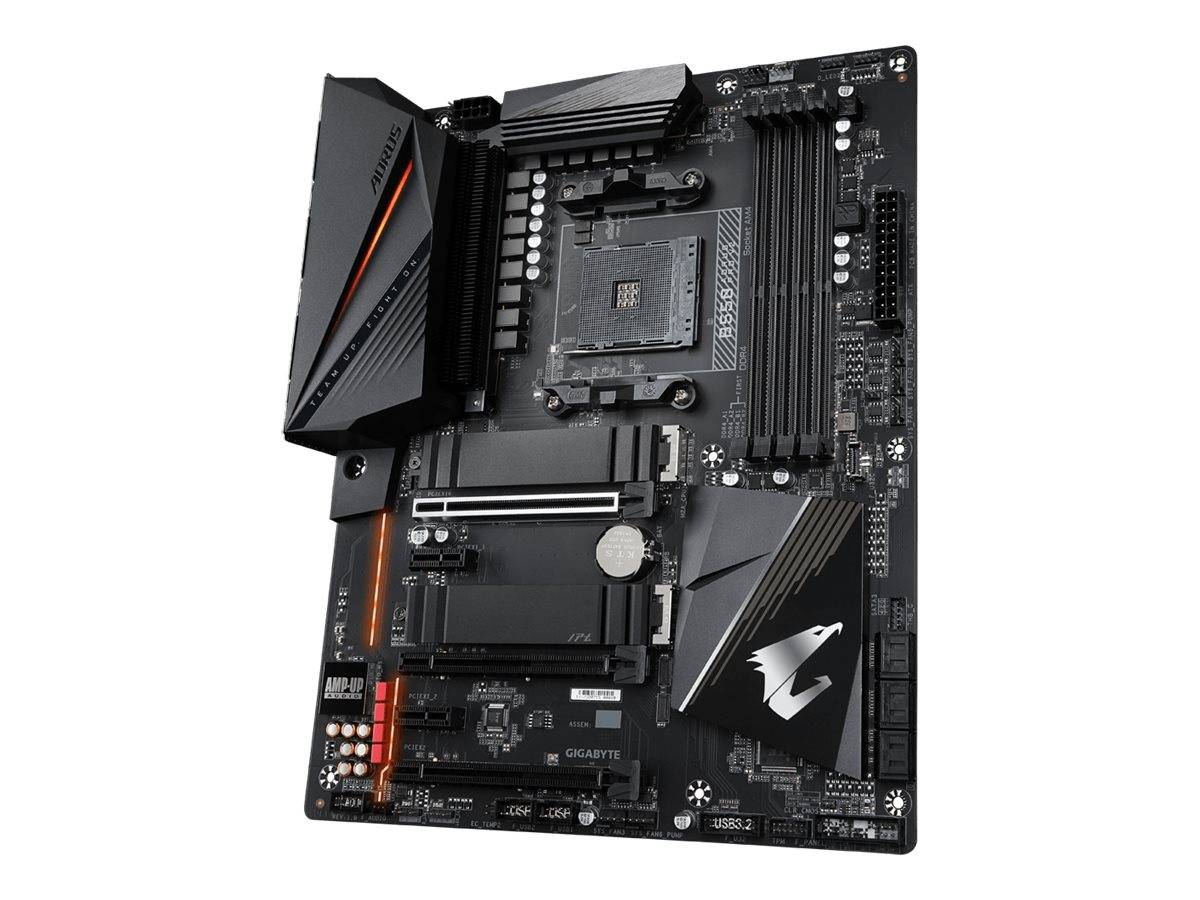

Gigabyte B550 AORUS PRO V2 / 1.0 / motherboard / ATX / Socket AM4 / AMD B550 Chipset / USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | B550 AORUS PRO V2
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- PCIe 4.0 for everyone
The AMD B550 chipset makes PCIe 4.0 possible for anyone who wants higher performance, bandwidth and speed. - Advanced power design
B550 AORUS motherboard equips with the advanced power solution which is power-balanced, digital and multiple phases. No compromise and never stop to achieve higher. - 12+2 phases digital twin power design
B550 AORUS PRO V2 motherboard uses a 12+2 phases digital twin power design which includes PWM controller, DrMOS and Ferrite core choke as high-quality selected components. This digital controller offers incredible precision in delivering power to the motherboard's power-hungry and energy-sensitive components, allowing enthusiasts to get the maximum performance from processors. - 2X Copper PCB
GIGABYTE's exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking. - Powerful performance
Protective and optimized memory trace enhances the performance. Faster read and write are needed to save time and improve efficiency. Plenty of M.2 storage with thermal guards to ensure unthrottled read and write. - Performance with PCIe 4.0 x4 + PCIe 3.0 x4 NVMe PCIe SSDs
B550 AORUS motherboard offers excellent compatibility in terms of NVMe storage for users who demand high capacity and seek better performance. AORUS' unique design can be configured in RAID for record speeds of up to 6560 MB/s. - Advanced thermal solution
Unthrottled performance is ensured by the advanced thermal solution including fins-array heatsink, direct-touch heat pipe and Thermal Guards. B550 AORUS motherboard is cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers and professional gamers. - Ultra-efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Next-generation connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the technology. B550 AORUS motherboard provides all next-generation network and storage to keep you up to speed. - USB-C front-panel connector
Equipped with next-generation connectivity, AORUS gaming motherboard already supports the chassis of the future. The onboard USB-C header for USB 3.2 Gen 1 makes access convenient when connecting the USB 3.2 Gen 1 device or charging your mobile device. - HDMI 2.1 for 4K / 60p / 21:9 / HDCP 2.3 support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio, Full HDR and HDCP 2.3 support, to offer better visual experience for viewers. - Hi-Fi audio system
For enthusiasts, sound quality is just as essential to the gaming experience. B550 AORUS motherboard is equipped with high-quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide an outstanding audio experience. The exclusive AORUS AMP-UP audio technology makes for the ideal onboard sound solution for the demanding audiophiles. - High-end WIMA and audio capacitors
The AORUS motherboard boasts a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Nichicon Fine Gold audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state-of-the-art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in high-grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP audio technology makes for the ideal onboard sound solution for the demanding audiophiles. - Definitive aesthetics
B550 motherboard features RGB FUSION 2.0 and offers the option to control onboard, external light strips to make your PC unique and stylish. - Multizone light show design
Offering more LED customizations, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. - Ultra Durable PCIe Armor
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. - Solid pin power connectors
B550 AORUS motherboard features solid-plated ATX 24-pin and ATX 12V 8-pin power connectors to offer a stable power supply during CPU overloading.
Special Features
- Dual-channel ECC / non-ECC unbuffered DDR4, 4 DIMMs
- 12+2 phases digital twin power design with 50 A DrMOS
- Advanced thermal design with fins-array heatsink and direct-touch heat pipe
- Ultra Durable PCIe 4.0 ready x16 slot
- Dual ultrafast NVMe PCIe 4.0 / 3.0 x4 M.2 with Dual Thermal Guards
- AMP-UP audio with ALC1220-VB and WIMA capacitors for rear 120 dB SNR
- Blazing-fast 2.5 GbE LAN with bandwidth management
- Front and rear USB-C 3.2 and HDMI support
- RGB FUSION 2.0 supports addressable LED and RGB LED strips
- Smart Fan 5 features multiple temperature sensors, hybrid fan headers
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | AMD B550 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
Supported RAM | Supported RAM |
Max Size | 128 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode |
Audio | Audio |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1220-VB |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Interfaces | 2.5 Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 2 x PCIe x1 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |

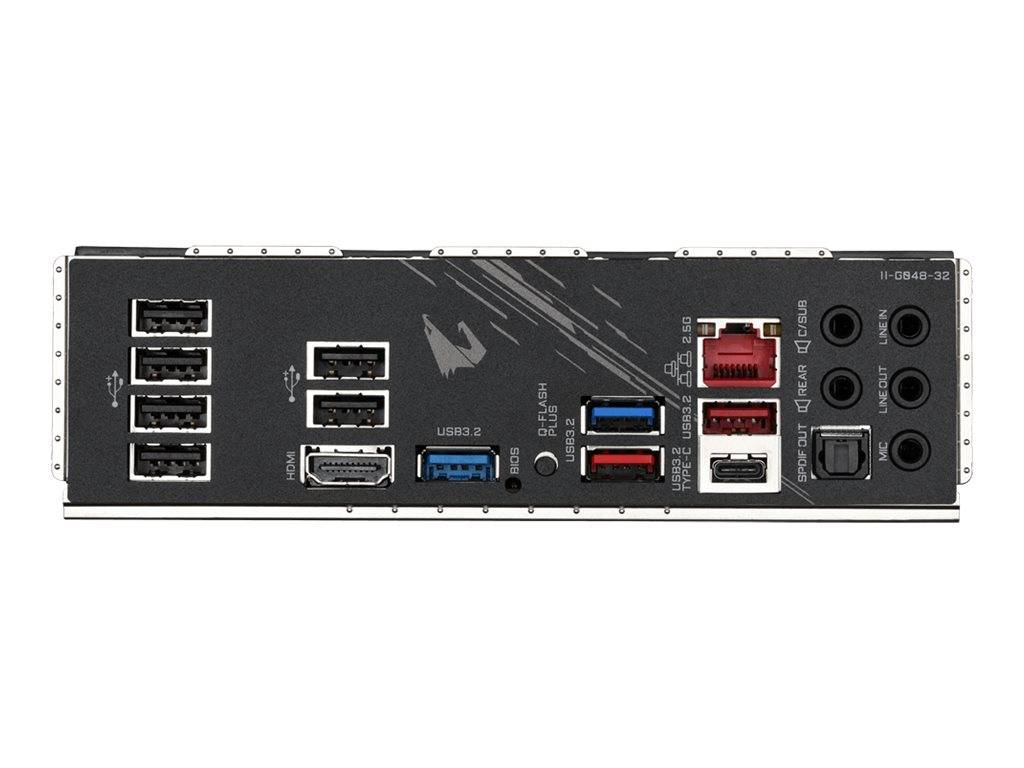

Interfaces | 1 x USB-C Gen2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x TOSLINK ¦ 6 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features | Features |
BIOS Type | AMI |
BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
Hardware Features | Q-Flash, 12+2 Phase Power Design, HDCP compliant, On/Off Charge, Ultra Durable, GIGABYTE AMP-UP Audio, 2x Copper PCB, WIMA film capacitors, Q-Flash Plus, Nichicon Fine Gold Series Audio Capacitors, Game Boost, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0 |
Miscellaneous | Miscellaneous |
Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, XSplit Gamecaster (1 year licence), XSplit Broadcaster (1 year licence), Realtek Gaming LAN Bandwidth Control |
Compliant Standards | Plug and Play, HDCP 2.3 |
Width | 30.5 cm |
Depth | 24.4 cm |
CPU Socket
- Socket AM4
Χαρακτηριστικά
Product Code
03:151492
EAN Code
4719331810566
Manufacturer
GigaByte
