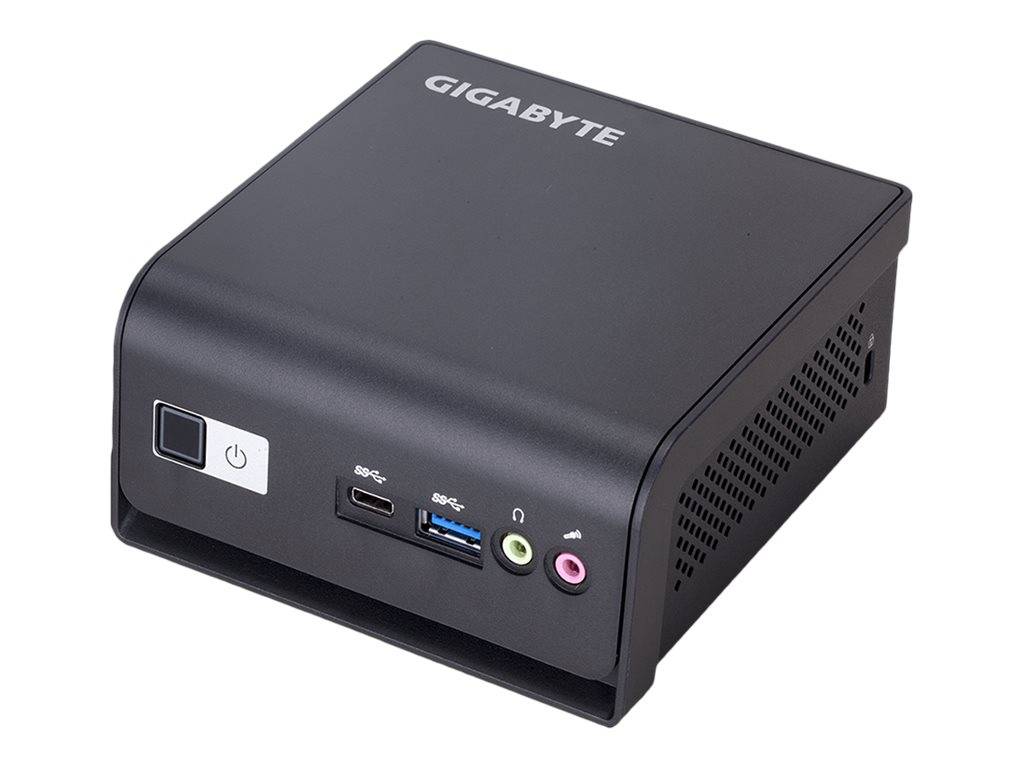

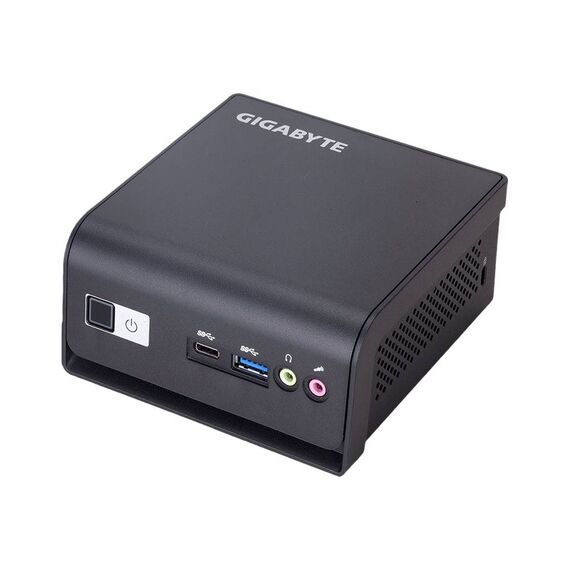

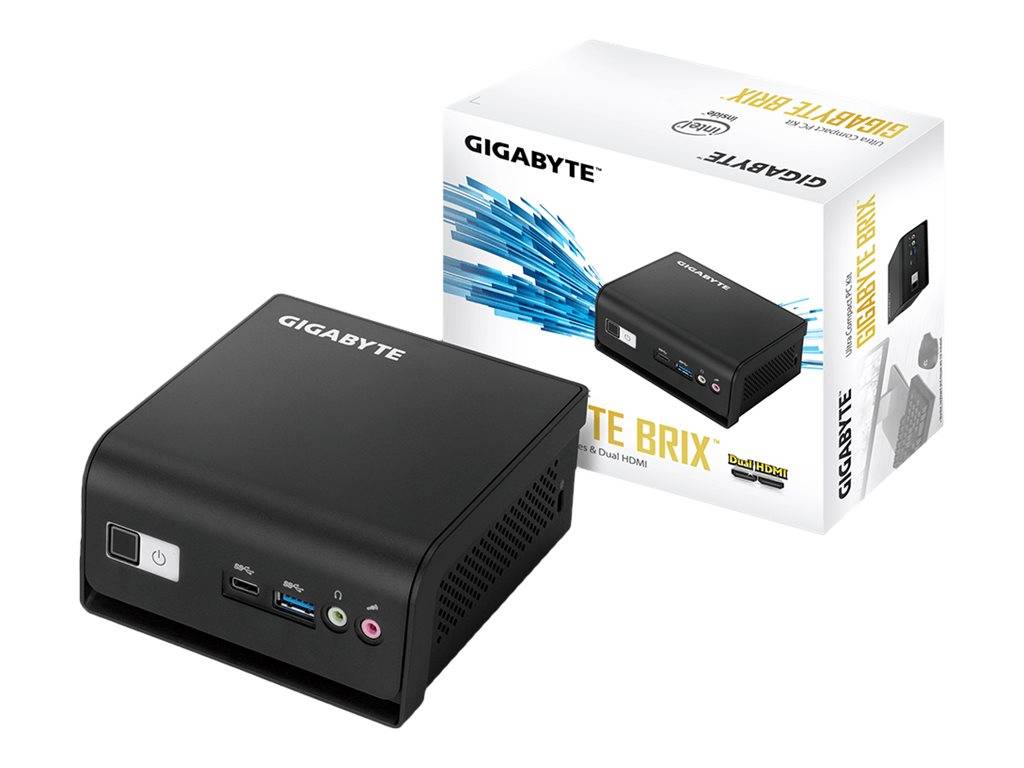

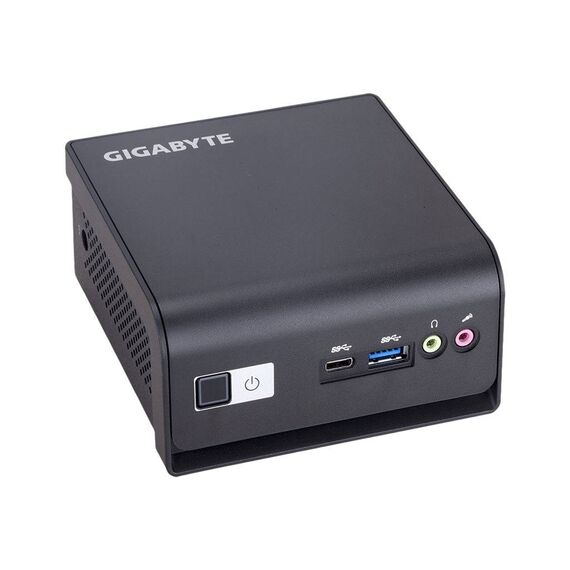

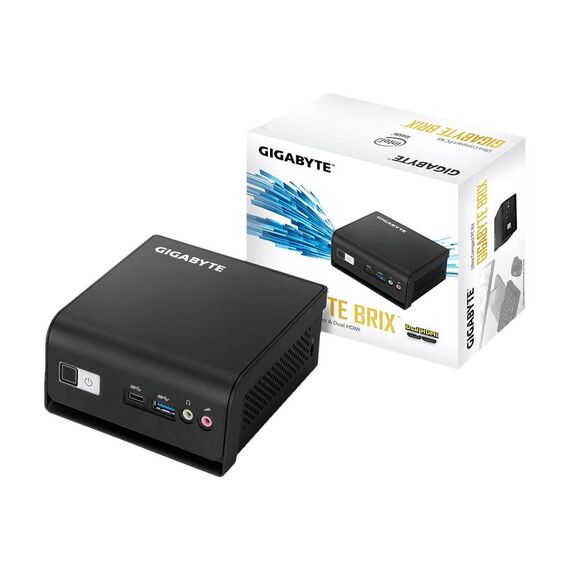

Gigabyte BRIX GB-BLCE-4105R (rev. 1.0) / Barebone / Ultra Compact PC Kit / 1 x Celeron J4105 / 1.5 GHz / RAM 0 GB / UHD Graphics 600 / GigE | GB-BLCE-4105
Product Features
- Perfect fit for any space
Challenging the essence of how you define a desktop PC, Gigabyte engineers have developed an ultra-compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. It sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. - Reversible USB Type-C with USB 3.0
The USB Type-C is a reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed. - Enjoy always available responsiveness with Intel Ready Mode Technology
Now there's no waiting to resume activity on your PC. With Intel Ready Mode Technology, your PC resumes to fully functional in an instant. It works by providing an alternative to traditional sleep - a quiet, low power state similar to the kind used by your cell phone and tablet. - VESA support
Bundled with a VESA bracket, the Gigabyte BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
Special Features
- Perfect fit for any space
- Reversible USB Type-C with USB 3.0
- Enjoy always available responsiveness with Intel Ready Mode Technology
- VESA support
Product Specification
Type | PC barebone |
Product Form Factor | Ultra Compact PC Kit |
Processor / Chipset | Processor / Chipset |
CPU | Intel Celeron J4105 |
Clock Speed | 1.5 GHz |
Max Turbo Speed | 2.5 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
RAM | RAM |
Installed Size | 0 GB / 8 GB (max) |
Technology | DDR4 SDRAM |
Form Factor | SO-DIMM 260-pin |
Slots | 1 (Total) / 1 (empty) |
Hard Drive | Hard Drive |
Type | No HDD |
Storage Controller | Storage Controller |
Type | 1 x SATA |
Controller Interface Type | SATA 6Gb/s |
Channel Qty | 1 |
Optical Storage | Optical Storage |
Type | No optical drive |
Monitor | Monitor |
Monitor Type | None. |
Graphics Controller | Graphics Controller |
Graphics Processor | Intel UHD Graphics 600 |
Video Interfaces | HDMI |
Audio Output | Audio Output |
Sound Output Mode | Stereo |
Networking | Networking |
Ethernet Controller | Realtek RTL8111HS |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Bays | 1 (total) / 1 (free) x internal 2.5" |
Slots | 1 M.2 Card - 2230 (Key A-E) |

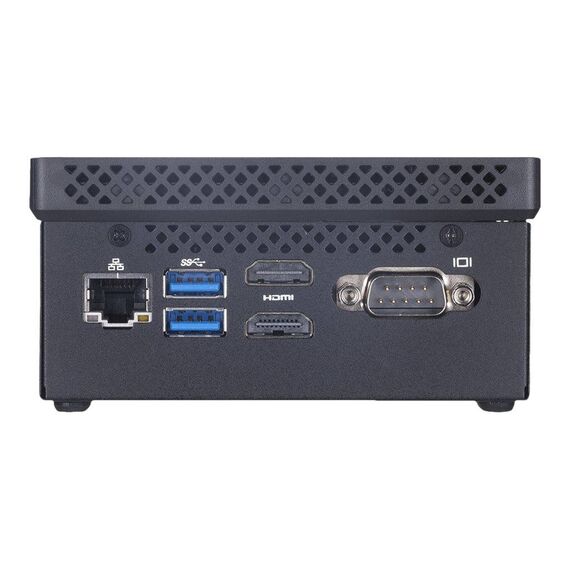

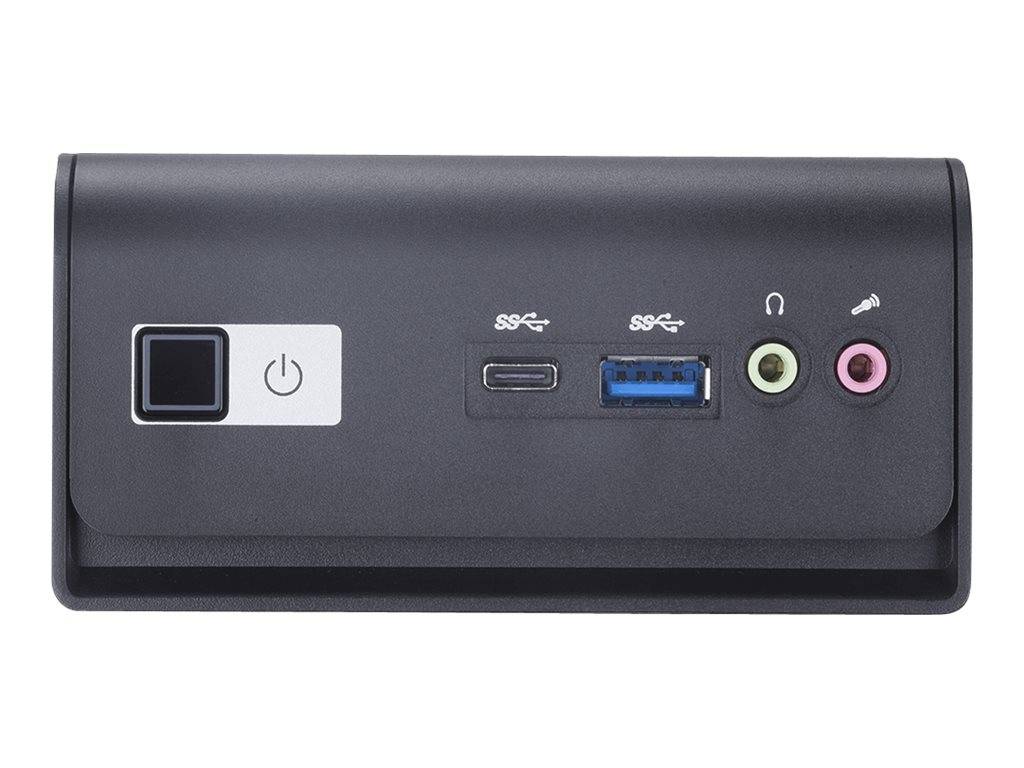

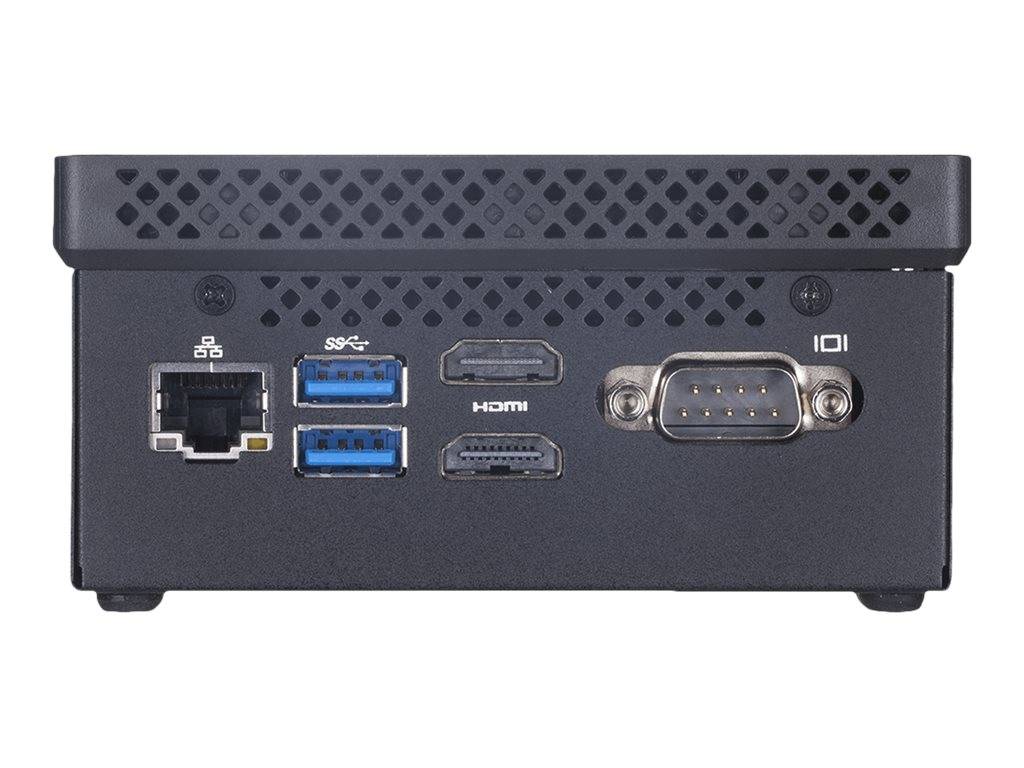

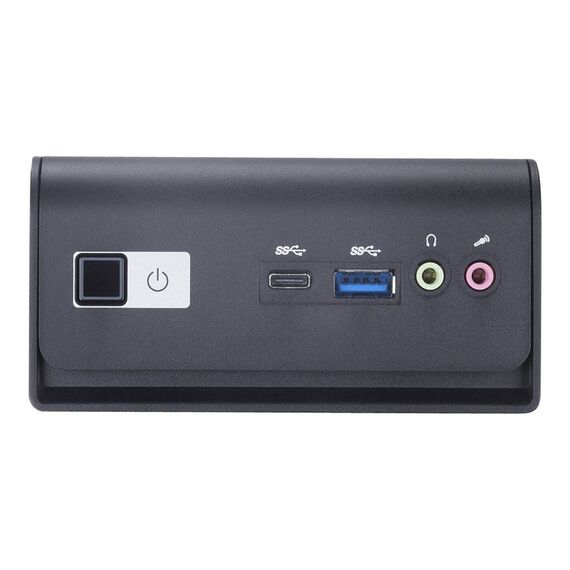

Interfaces | 3 x USB 3.0 (1 front, 2 rear) ¦ 2 x HDMI ¦ 1 x serial ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x headphones (1 in front) ¦ 1 x microphone (1 in front) ¦ 1 x USB-C 3.0 (1 in front) |
Miscellaneous | Miscellaneous |
Included Accessories | VESA wallmount adapter |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
Power | Power |
Device Type | Power adapter |
Voltage Required | AC 120/230 V |
Operating System / Software | Operating System / Software |
OS Provided | No operating system |
Dimensions & Weight | Dimensions & Weight |
Width | 10.3 cm |
Depth | 11.652 cm |
Height | 5.622 cm |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 35 °C |
