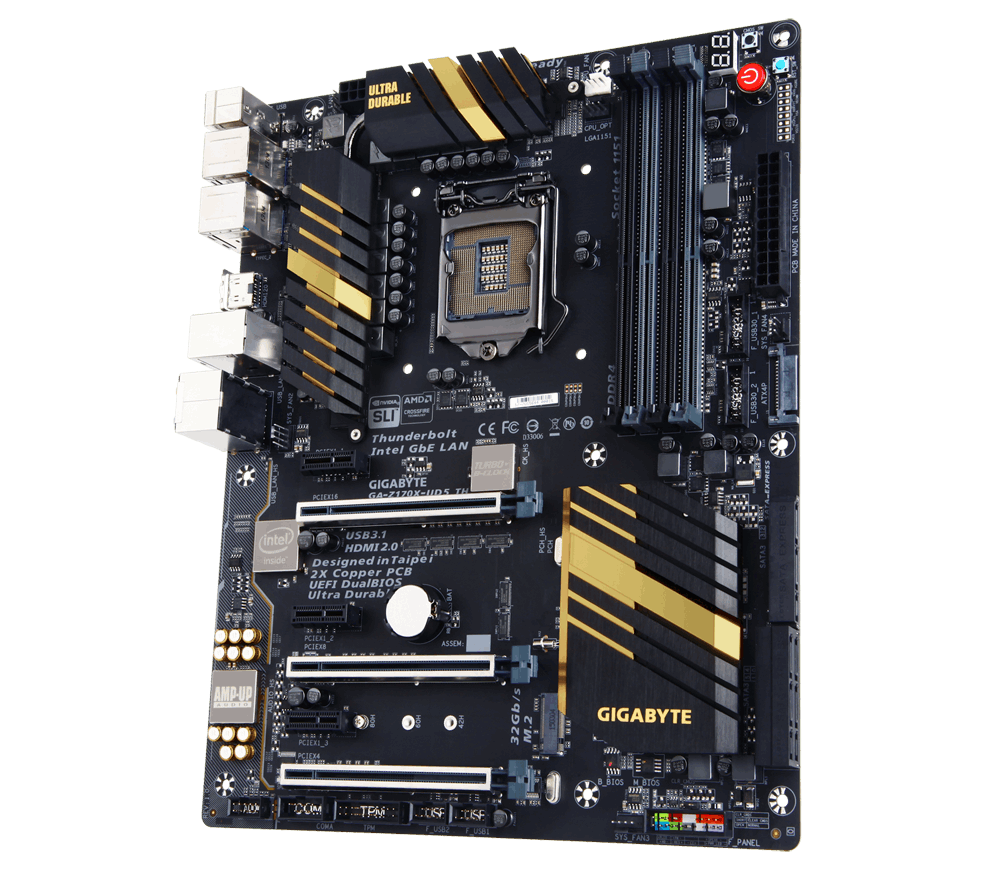

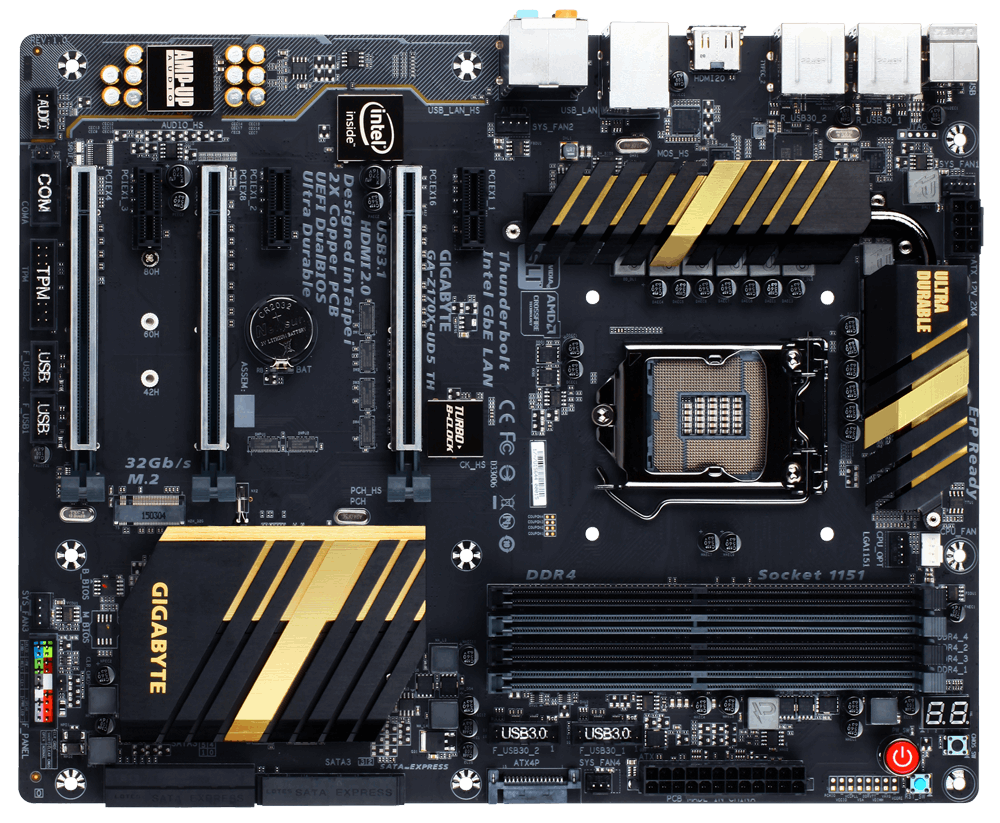

GigaByte GA-Z170X-UD5 TH S1151 Z170 ATX (GA-Z170X-UD5 TH)

Μάρκα: GigaByte

ΚΩΔΙΚΟΣ (SKU):

GA-Z170X-UD5 TH

€258.06 €280.50

€307.09 με Φ.Π.Α.

Μη Διαθέσιμο

Στα αγαπημένα Κάνε μια ερώτηση

Product CodeE081878 EAN Code0889523002827 ManufacturerGigaByte

Sales 8%

Find similar

Delivery

Payment options

Προδιαγραφές
Χαρακτηριστικά

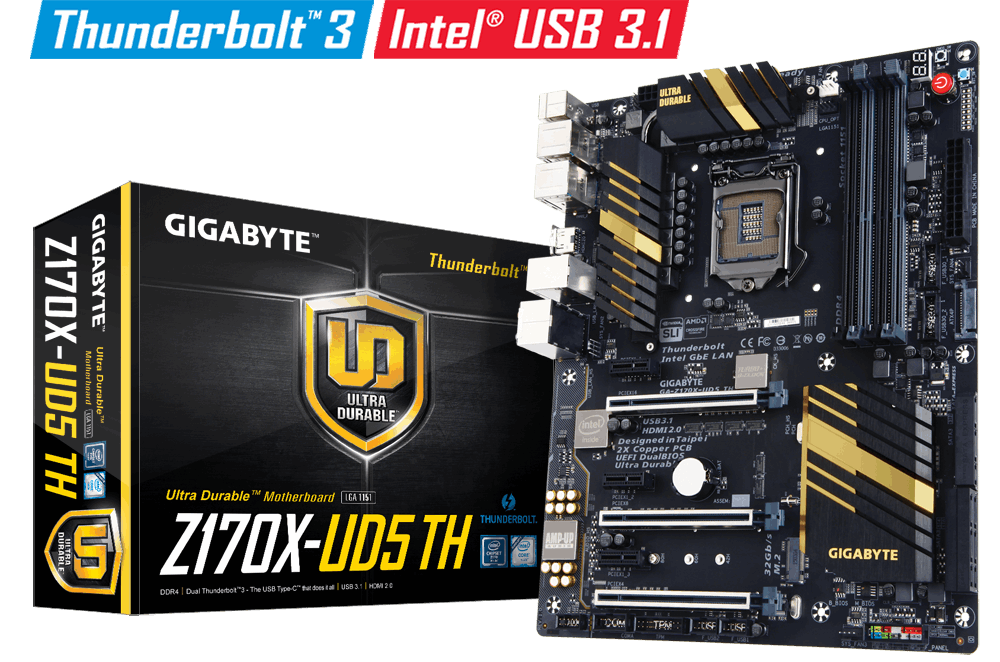

World's First Intel^® Thunderbolt™ 3 Certified Motherboard
Supports 6^th Generation Intel^® Core™ Processor
Dual Channel DDR4, 4 DIMMs
Thunderbolt™ 3 brings Thunderbolt to USB Type-C™ at speeds up to 40 Gbps
Intel^® USB 3.1 with USB Type-C™ support Power Delivery 2.0 for up to 36W
3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
3 SATA Express Connectors for up to 16Gb/s Data Transfer
HDMI 2.0 for 4K@60Hz and 21:9 aspect ratio provide the finest viewing experience
115dB SNR HD Audio with Built-in Rear Audio Amplifier
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Intel^® GbE LAN with cFosSpeed Internet Accelerator Software
Gold Plating for CPU Socket, Memory DIMMs with 2X Copper PCB
APP Center Including EasyTune™ and Cloud Station™ Utilities
GIGABYTE UEFI DualBIOS™ Technology

Specifications

CPU	Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® Z170 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 3800(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor+Intel^® Thunderbolt™ 3 Controller: 2 x Intel^® Thunderbolt™ 3 connectors, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-9, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.2 version. Integrated Graphics Processor+MegaChips MCDP2800 chip: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version. Support for up to 3 displays at the same time Maximum shared memory of 512 MB
Audio	Realtek^® ALC1150 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector. 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	Support for 3-Way/2-Way AMD CrossFire™and 2-Way NVIDIA^® SLI™ Technology
Storage Interface	Chipset: 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support) 3 x SATA Express connectors 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-9 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB	Chipset+Intel^® Thunderbolt™ 3 Controller: 2 x USB Type-C™ ports on the back panel, with USB 3.1 support Chipset: 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 5 x USB 2.0/1.1 ports (4 ports on the back panel, 1 port available through the internal USB header) Chipset+GENESYS LOGIC USB 2.0 Hub: 3 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x PCIe power connector 3 x SATA Express connectors 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 4 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.0/2.0 headers 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header 1 x power button 1 x reset button 1 x Clear CMOS button Voltage Measurement Points

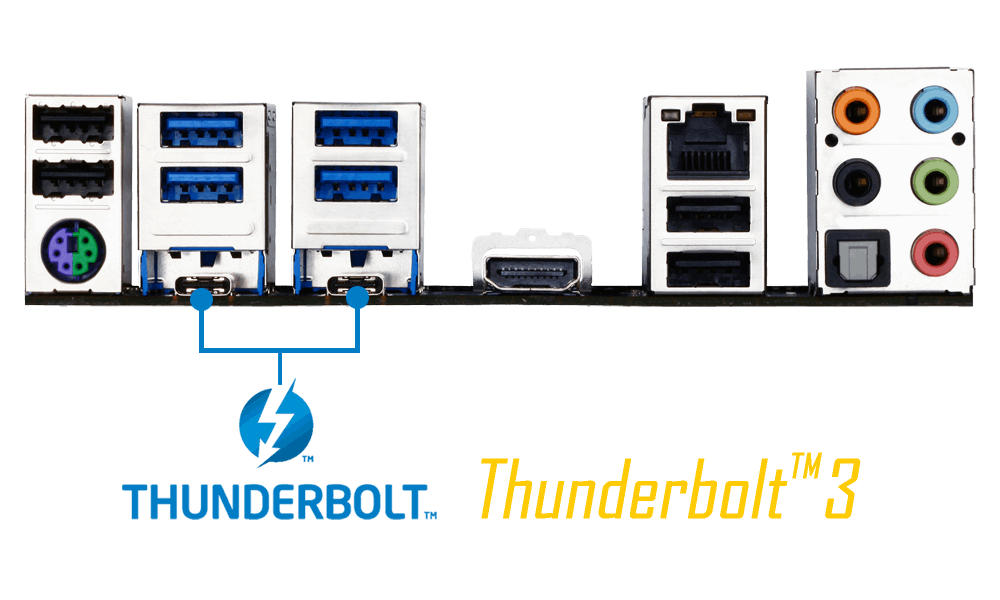

Back Panel Connectors	1 x PS/2 keyboard/mouse port 2 x Thunderbolt™3 ports 4 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System/Chipset temperature detection CPU/CPU OPT/System fan speed detection CPU/System/Chipset overheating warning CPU/CPU OPT/System fan fail warning CPU/CPU OPT/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install
Bundle Software	Norton^® Internet Security (OEM version) Intel^® Smart Response Technology cFosSpeed
Operating System	Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Box Contents	GA-Z170X-UD5 TH motherboard Motherboard driver disk User's Manual Quick Installation Guide Four SATA cables I/O Shield One 2-Way SLI bridge connector One G Connector One pack of back I/O dust covers
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
