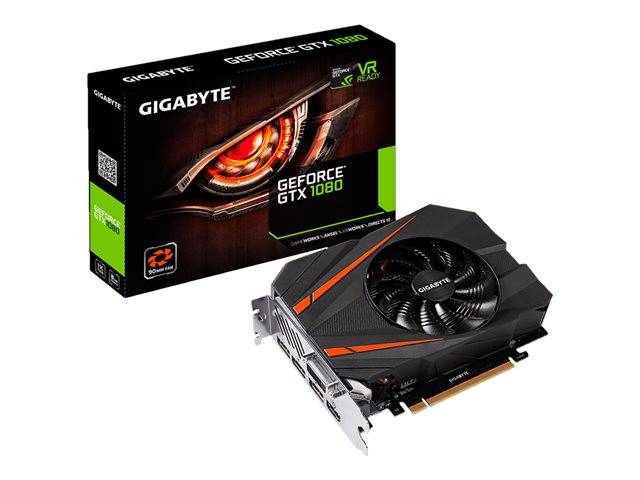

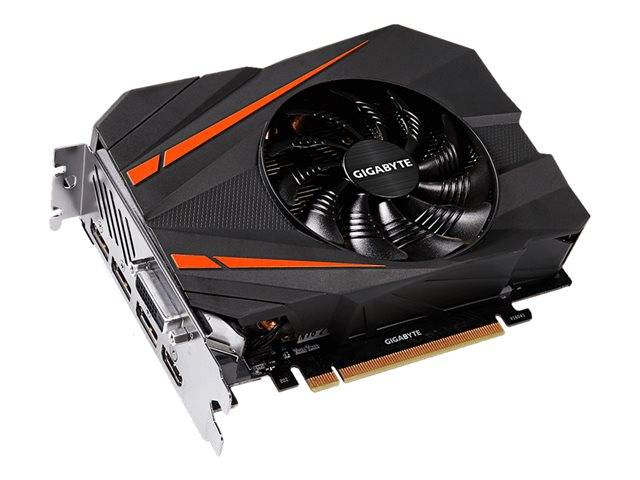

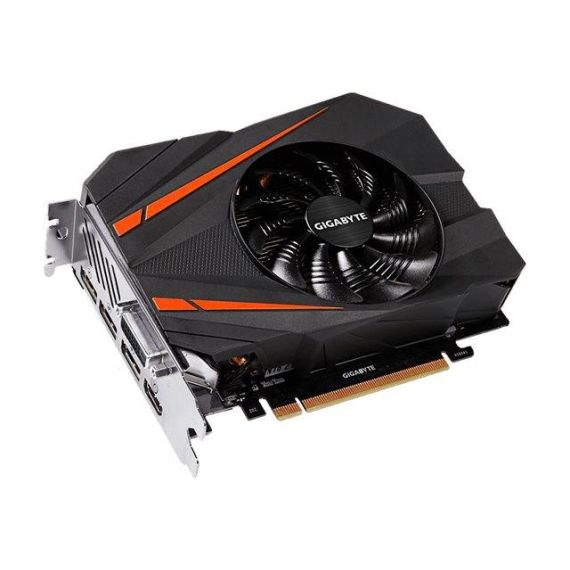

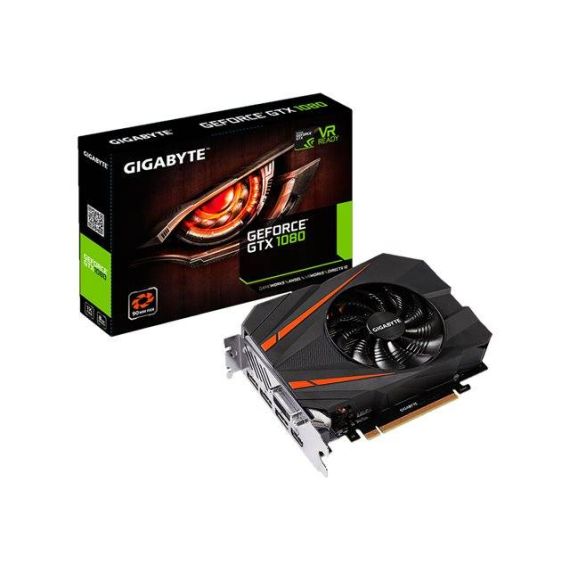

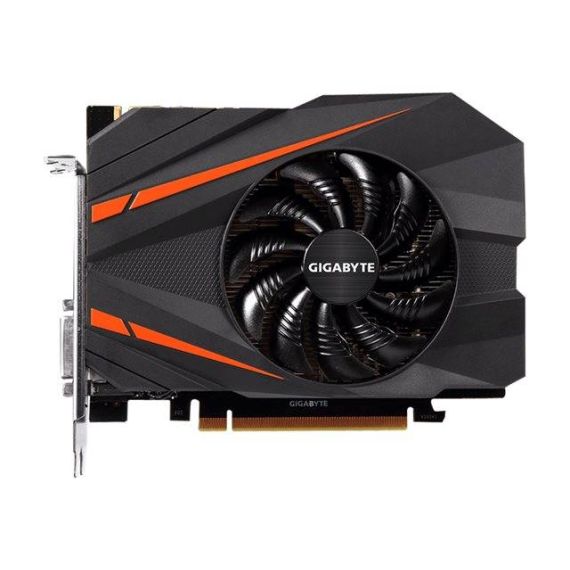

Gigabyte GeForce GTX 1080 Mini ITX 8G / Graphics card / GF GTX 1080 / 8 GB GDDR5X / PCIe 3.0 x16 / DVI, HDMI, 3 x DisplayPort | GV-N1080IX-8GD
Gigabyte GeForce GTX 1080 Mini ITX 8G / Graphics card / GF GTX 1080 / 8 GB GDDR5X / PCIe 3.0 x16 / DVI, HDMI, 3 x DisplayPort | GV-N1080IX-8GD
Description Embedded with powerful Geforce GTX 1080 in an extremely compact graphics card, GTX 1080 mini ITX is capable to fit into any small chassis and delivers a great gaming performance. The GIGABYTE custom-designed cooling system features fan, 3 pure copper composite heat-pipes, unique blade fan design, heat pipes direct touch technology together delivering an effective heat dissipation capacity for higher performance at lower temperatures. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow over traditional fans. The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. Engineered with the high-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan. Gigabyte GeForce GTX 1080 Mini ITX 8G / GF GTX 1080 / 8 GB GDDR5X | GV-N1080IX-8GDSpecial Features
Product features
|
Product Specification
Device Type | Graphics card |
Bus Type | PCI Express 3.0 x16 |
Graphics Engine | NVIDIA GeForce GTX 1080 |
Core Clock | 1632 MHz |
Boost Clock | 1771 MHz |
Max Resolution | 7680 x 4320 |
Max Monitors Supported | 4 |
Interfaces | DVI-D (dual link) ¦ 3 x DisplayPort ¦ HDMI |
API Supported | DirectX 12, OpenGL 4.5 |
Features | Ultra Durable VGA, GIGABYTE Super Overclock, NVIDIA G-Sync ready, NVIDIA GameWorks, Heat Pipe Direct Touch technology, Nvidia GeForce GTX VR Ready, FinFET technology, Nvidia SLI with HB Bridge Support, 90mm Unique blade fan design, NVIDIA Pascal GPU technology, NVIDIA VRWorks, AORUS Graphics Engine, 5+2 Phase Power Design |
Size | 8 GB |
Technology | GDDR5X SDRAM |
Effective Clock Speed | 10.01 GHz |
Bus Width | 256-bit |
Required Power Supply | 500 W |
Additional Requirements | 8 pin PCI Express power connector |
Software Included | GeForce Experience |
Width | 3.7 cm |
Depth | 16.9 cm |
Height | 13.1 cm |
