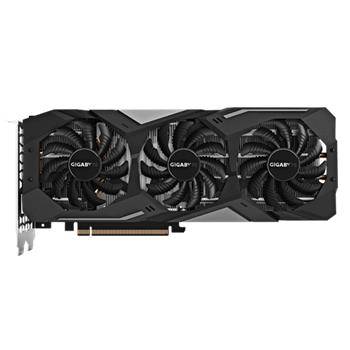

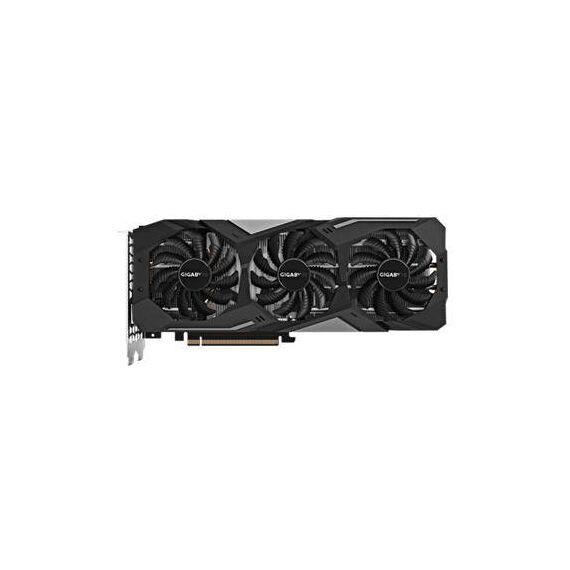

Gigabyte GeForce RTX 2070 GAMING OC 8G / Graphics card / GF RTX 2070 / 8 GB GDDR6 / PCIe 3.0 x16 / HDMI, 3 x DisplayPort, USB-C | GV-N2070GAMING OC-8GC

Description

The GIGABYTE patent "Alternate Spinning" is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

Gigabyte GeForce RTX 2070 GAMING OC 8G / Graphics card | GV-N2070GAMING OC-8GC

Special Features

• Powered by GeForce RTX 2070
• Integrated with 8GB GDDR6 256-bit memory interface
• WINDFORCE 3X Cooling System with alternate spinning fans
• RGB Fusion - 16.7M customizable color lighting
• Metal back plate

Product features

• WINDFORCE 3X cooling system
  The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
• Alternate spinning
  The GIGABYTE patent "Alternate Spinning" is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
• Unique blade fan
  The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
• 3D Active Fan
  The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
• Heat pipes direct touch
  The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
• Composite heat-pipes
  The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
• Extreme durability and overclocking
  The graphics card uses the 8+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
• Power indicators
  The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
• Protection metal back plate
  The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
