Gigabyte X570S AERO G / 1.0 / motherboard / ATX / Socket AM4 / AMD X570 Chipset / USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8-cha | X570S AERO G
X570S AERO G
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- High-bandwidth and low-latency access
The adoption of Intel 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2x faster transfer speeds compared to general 1GbE networking. It gives an immediate boost to overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads. - Make your expandability flexible
Multi-graphics configurations offer better graphics performance for applications that demand the highest frame rates without compromising on resolution. - Fast speed, more space
To equip with four PCIe M.2 sockets, delivering superior bandwidth and upgrading your storage capacity to accelerate creative workflow. M.2 PCIe SSD gives you 7X faster data transferring experience compared to 2.5" SATA solid-state drives. - Thermal technology
An effective cooling solution is essential for a heavy design workload to get away with slow down, crashes, and unexpected shutdown. GIGABYTE advanced thermal solution adopts the large curved aluminum heat sink to improve heat dissipation and ensures stability during creative work. - Immersive sounds to go
DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting level.
Special Features
- High-bandwidth and low-latency access
- Make your expandability flexible
- Fast speed, more space
- Thermal technology
- Immersive sounds to go
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5100 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Graphics | Graphics |
| Max Allocated RAM Size | 16 GB |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220-VB |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
| LAN | LAN |
| Network Controller | Intel AX200 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x8 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 3 x M.2 |

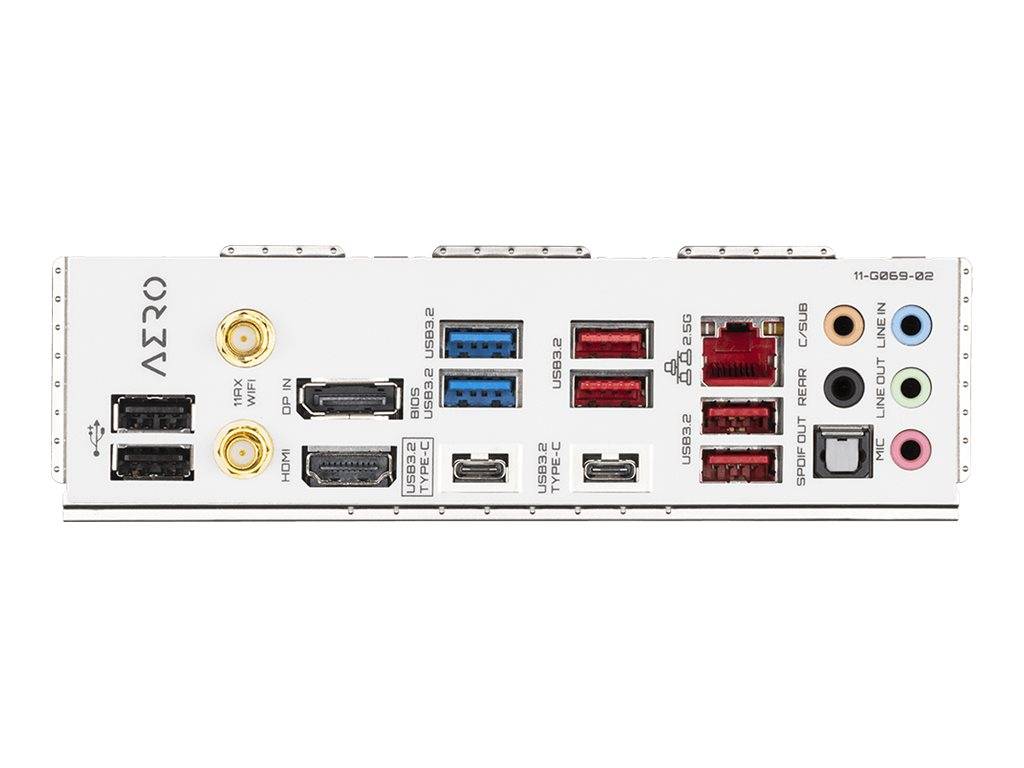

| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2x2 ¦ 1 x USB-C Gen1 ¦ 1 x HDMI ¦ 1 x DisplayPort input |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate |
| Hardware Features | Q-Flash, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Q-Flash Plus, RGB FUSION 2.0, GIGABYTE VisionLINK, GIGABYTE Smart Fan 6, M.2 Thermal Guard III |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, cFosSpeed, GIGABYTE Fast Boot, GIGABYTE Smart Backup |
| Compliant Standards | Plug and Play, USB Power Delivery |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Χαρακτηριστικά
Product Code
07:124564
EAN Code
4719331823665
Manufacturer
GigaByte
