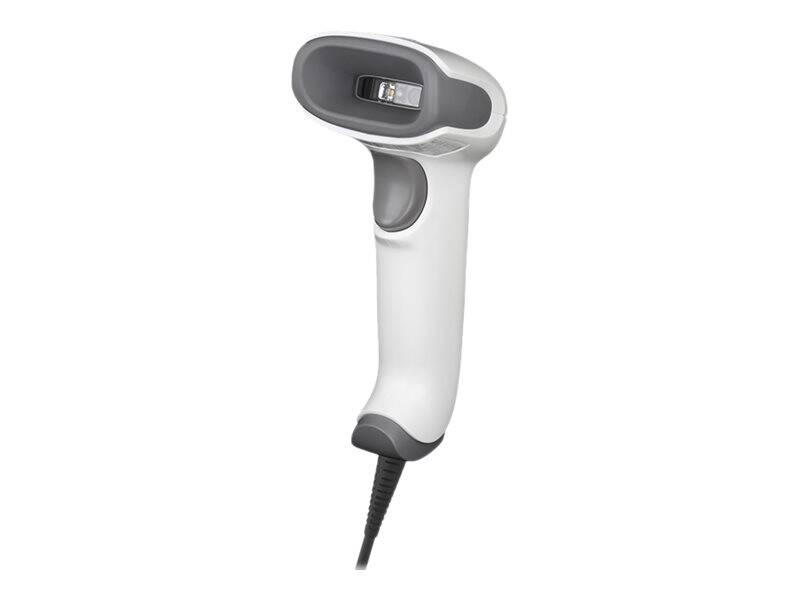

Honeywell Voyager 1470G2D - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB | 1470G2D-1USB-R
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - handheld |
| Colour | White |
| Barcode | |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - Red LED |
| Sensor Resolution | 1040 x 720 |
| Light Source Wave Length | 624 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 61.5 cm |
| Skew (Degrees) | 70 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Pharmacode 39, Code 93, Matrix 2 of 5, Code 39, ISBT 128, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, TLC39, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, MacroPDF417, Hong Kong 2 of 5, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Composites, Codablock A, MSI, GS1-128, NEC 2 of 5, Straight 2 of 5, Han Xin |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator, vibration |
| Features | ESD (electrostatic discharge) safe |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | |
| Included Accessories | Stand |
| Cables Included | 1 x USB cable - 1.5 m |
| Compliant Standards | IP40 |
| Power | |
| Power Consumption Operational | 2 Watt |
| Electric Current Required | 400 mA (operating), 90 mA (standby) |
| Dimensions & Weight | |
| Width | 6 cm |
| Depth | 8.2 cm |
| Height | 16.9 cm |
| Weight | 130 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Honeywell - 1470G2D-1USB-R
More Details
Product Code
1T73212
EAN Code
-
Manufacturer
Honeywell
