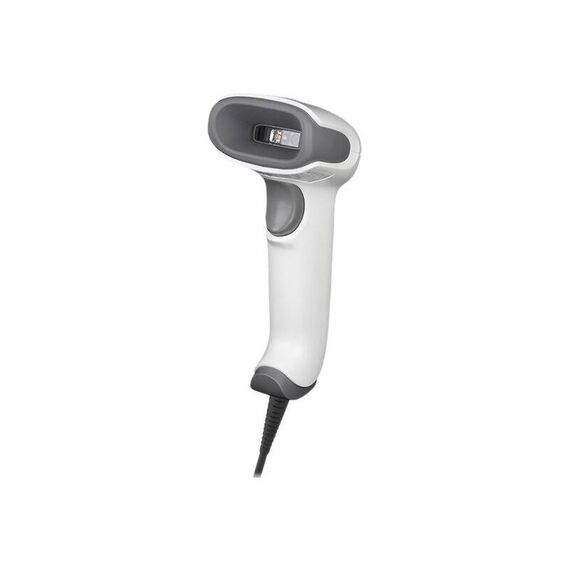

Honeywell Voyager 1470G2D - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB | 1470G2D-1USB-R
Brand: Honeywell
1470G2D-1USB-R
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - handheld |
| Colour | White |
| Barcode | |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - Red LED |
| Sensor Resolution | 1040 x 720 |
| Light Source Wave Length | 624 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 61.5 cm |
| Skew (Degrees) | 70 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Pharmacode 39, Code 93, Matrix 2 of 5, Code 39, ISBT 128, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, TLC39, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, MacroPDF417, Hong Kong 2 of 5, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Composites, Codablock A, MSI, GS1-128, NEC 2 of 5, Straight 2 of 5, Han Xin |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator, vibration |
| Features | ESD (electrostatic discharge) safe |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | |
| Included Accessories | Stand |
| Cables Included | 1 x USB cable - 1.5 m |
| Compliant Standards | IP40 |
| Power | |
| Power Consumption Operational | 2 Watt |
| Electric Current Required | 400 mA (operating), 90 mA (standby) |
| Dimensions & Weight | |
| Width | 6 cm |
| Depth | 8.2 cm |
| Height | 16.9 cm |
| Weight | 130 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Honeywell - 1470G2D-1USB-R
More Details
Product Code
1T73212
EAN Code
8596375556201
Manufacturer
Honeywell
