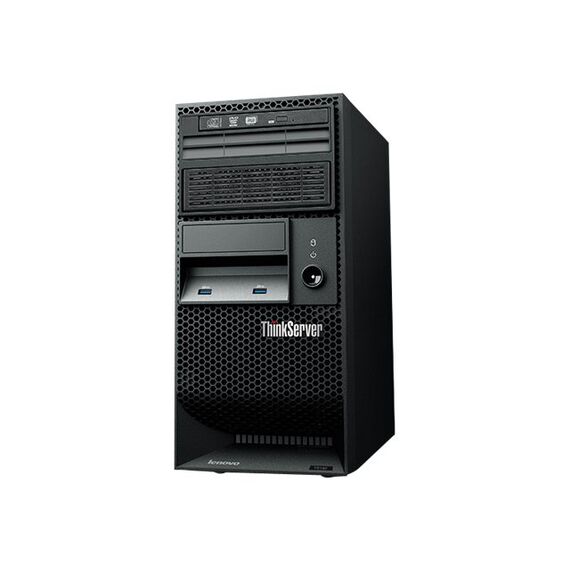

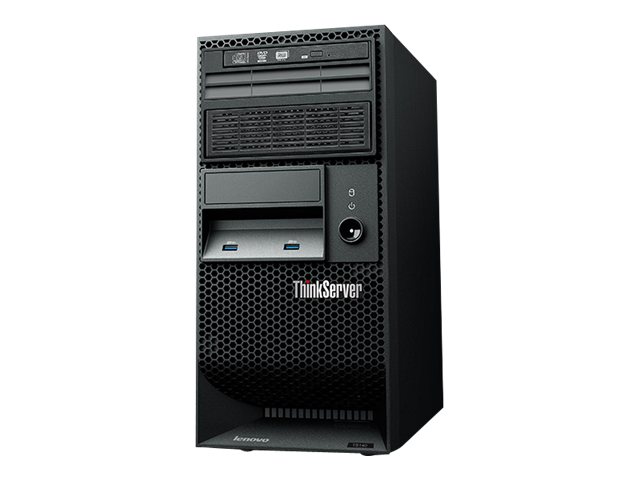

Lenovo ThinkServer TS140 70A4 Server tower 4U Xeon E3-1226V3 3.3GHz / RAM 8GB / HDD 2 x 1TB / HD Graphics P4600
Lenovo ThinkServer TS140 70A4 Server tower 4U Xeon E3-1226V3 3.3GHz / RAM 8GB / HDD 2 x 1TB / HD Graphics P4600 | 70A4003MGE
Description If your business is moving up from a desktop environment to its first server, you'll find everything you need in the TS140 - an affordable, durable server with impeccable productivity and manageability features.The TS140 makes clever use of Intel AMT 9.0 to provide out-of-band, cost-effective, remote management of end-user environments - regardless of the managed server's status. Intuitive and secure, the web console works directly out of the box to give point-and-click management tools perfect for branch offices or remote deployments with limited IT resources.At 26 dB, the acoustics of the TS140 are impressively quiet for any server - that's less noise than you'll find in a typical library. Plus, it's ENERGY STAR-certified, so it's easy on the environment and easy on your power bills. Special Features
Product features
|
Product Specification
Type | Server |
Product Form Factor | Tower - 4U |
Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
Server Scalability | 1-way |
Internal Bays Qty | 2 |
Front Accessible Bays Qty | 1 |
Colour | Raven black |
Localisation | German / Germany |
CPU | Intel Xeon E3-1226V3 / 3.3 GHz |
Max Turbo Speed | 3.7 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Processor Main Features | Intel Turbo Boost Technology 2 |
CPU Socket | LGA1150 Socket |
Chipset Type | Intel C226 |
Installed Size | 8 MB |
Cache Per Processor | 8 MB |
Installed Size | 8 GB / 32 GB (max) |
Technology | DDR3 SDRAM - ECC |
Memory Speed | 1600 MHz |
Memory Specification Compliance | PC3-12800 |
Form Factor | DIMM 240-pin |
Features | Unbuffered |
Configuration Features | 1 x 8 GB |
Type | HDD |
Capacity | 2 x 1 TB |
Interface Type | SATA 6Gb/s |
Type | 1 x RAID - integrated |
Controller Interface Type | SATA 6Gb/s |
Storage Controller Name | ThinkServer RAID 100 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Type | DVD-Writer - SATA |
Monitor Type | None. |
Type | Integrated |
Graphics Processor | Intel HD Graphics P4600 |
Video Interfaces | VGA, DisplayPort |
Type | Integrated |
Type | Integrated |
Ethernet Controller | Intel I217 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Bays | 1 (total) / 0 (free) x external 5.25" x 1/2H ¦ 2 (total) / 0 (free) x internal 3.5" x 1/3H |
Slots | 1 (total) / 0 (free) x CPU ¦ 4 (total) / 3 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 2.0 x1 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height ( x4 mode ) ¦ 1 (total) / 1 (free) x PCI - half-length, full-height |
Interfaces | 6 x USB 3.0 ( 2 front, 4 rear ) ¦ 1 x VGA ¦ 2 x DisplayPort ¦ 2 x USB 2.0 ¦ 1 x serial ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 1 x microphone |
Features | Power-on password, serial port I/O control, USB port control, boot sequence control, Intel Active Management Technology (iAMT), boot without keyboard or mouse or diskette, rack-mountable |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
Compliant Standards | RoHS, GREENGUARD |
Manufacturer Selling Program | TopSeller |
Device Type | Power supply |
Nominal Voltage | AC 120/230 V ( 50/60 Hz ) |
Power Provided | 280 Watt |
80 PLUS Certification | 80 PLUS Bronze |
ENERGY STAR Qualified | Yes |
Service & Support | 1 year warranty |
Service & Support Details | Limited warranty - 1 year - on-site |
Width | 17.5 cm |
Depth | 43.1 cm |
Height | 37.5 cm |
Weight | 13 kg |
