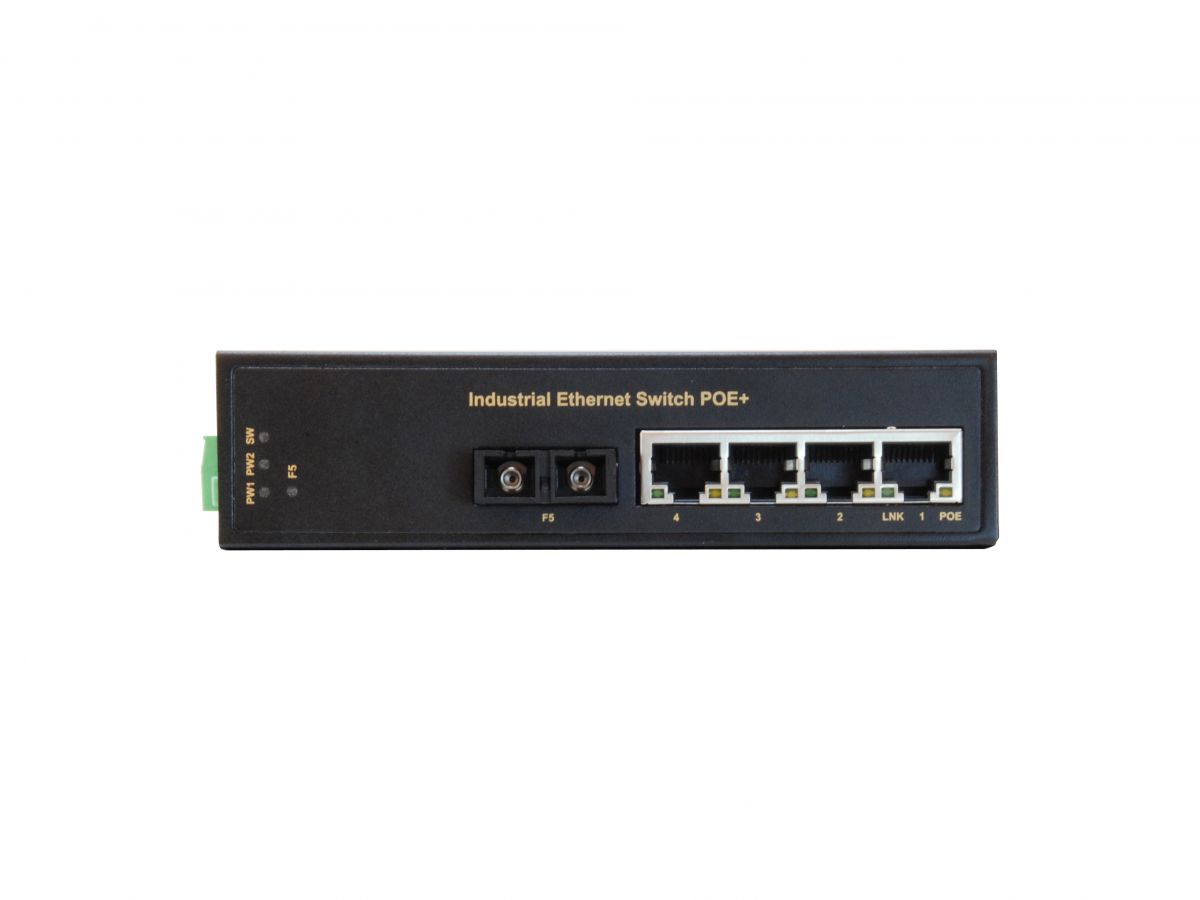

LevelOne IFP-0503 / Switch / 4 x 10/100 (PoE+) + 1 x 100Base-FX / desktop, DIN rail mountable, wall-mountable / PoE+ (126 W) / DC power | IFP-0503
LevelOne IFP-0503 / Switch / 4 x 10/100 (PoE+) + 1 x 100Base-FX / desktop, DIN rail mountable, wall-mountable / PoE+ (126 W) / DC power | IFP-0503
€340.73 inc. VAT
IFP-0503
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Special Features
- Single-mode fiber with SC connector for transmission of up to 30 km
- Provides flexibility of 4 x 10/100BASE-TX PoE ports
- PoE ports can support the IEEE 802.3at standard and power up 30 W devices
- 10/100 Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- 40°C to 75°C (-40°F to 167°F) operating temperture range
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case
- Redundant power inputs with Terminal Block
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE+) + 1 x 100Base-FX |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 126 W |
| Max Transfer Distance | 30 km |
| Performance | Backplane switching capacity: 1 Gbps ¦ Forwarding performance: 148000 packets per second |
| MAC Address Table Size | 1K entries |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 1MB packet buffer, metal housing, Power Sourcing Equipment (PSE) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 100Base-TX RJ-45 PoE+ - 36 W ¦ 1 x 100Base-FX SC single-mode |
| Power | Power |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | DC 9 - 56 V |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VCCI, EN55022, EN55024, FCC, EN 60950-1, EN 55011, EN50155, EN 50121-4, IP30, EN 50121-3-2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3.62 cm |
| Depth | 10.5 cm |
| Height | 14.2 cm |
| Weight | 460 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
General
5-Port
Χαρακτηριστικά
Product Code
04:165327
EAN Code
4015867192405
Manufacturer
LevelOne
Δεν βρέθηκαν δημοσιεύσεις
