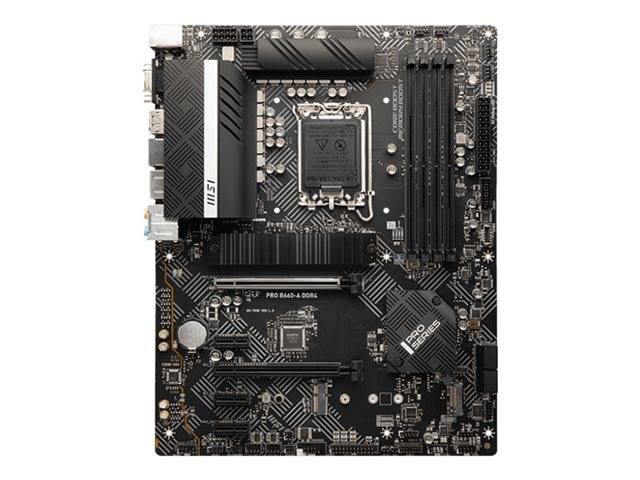

MSI PRO B660-A DDR4 / Motherboard / ATX / LGA1700 Socket / B660 Chipset / USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D59-001R

7D59-001R
175.51
190.77
(208.86 με Φ.Π.Α.) Κερδίζετε: 15.26
Μη Διαθέσιμο
Find similar
Delivery
Payment options
Product Code07:125802 EAN Code4719072912451 ManufacturerMSI CPU SocketSocket 1700

MSI PRO B660-A DDR4 / Motherboard / ATX / LGA1700 Socket / B660 Chipset / USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D59-001R

Product Specification

Product Type Motherboard - ATX
Chipset Type Intel B660 / Nuvoton NCT6687-R
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Size 128 GB
Technology DDR4
Bus Clock 3600 MHz (O.C.), 4000 MHz (O.C.), 4800 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type HD Audio (8-channel)
Audio Codec Realtek ALC897
Compliant Standards High Definition Audio
Network Controller Realtek RTL8125BG
Network Interfaces 2.5 Gigabit Ethernet
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
RAID Features Intel Smart Response Technology
Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA
Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
BIOS Features MSI ClickBIOS 5
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer
Hardware Features AMD CrossFireX technology support, Debug LED, 6 Layer PCB, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, Windows 11 compatible, Surface Mount Technology (SMT)
Included Accessories Case badge, IO shield, m.2 screw / standoff sets, M.2 clip
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities
Width 30.5 cm
Depth 24.4 cm
Service & Support Limited warranty - 3 years

CPU Socket
  • Socket 1700
Χαρακτηριστικά
Product Code
07:125802
EAN Code
4719072912451
Manufacturer
MSI
