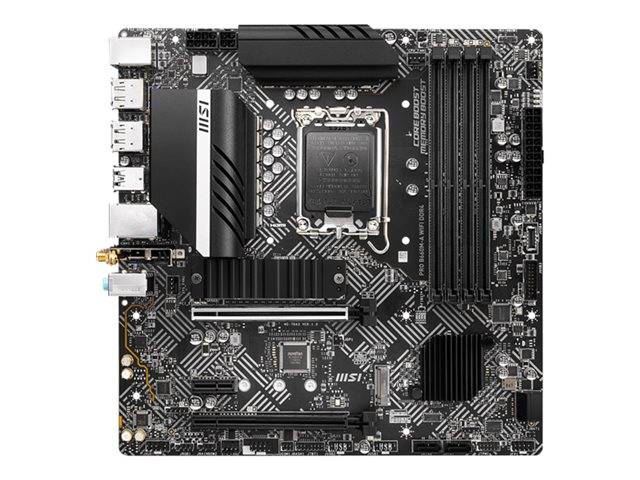

MSI PRO B660M-A WIFI DDR4 / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7D43-002R
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
MSI PRO B660M-A WIFI DDR4 / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7D43-002R
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B660 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 2 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Hardware Features | Debug LED, Intel Optane Memory Ready |
| Included Accessories | Case badge, 2 x M.2 screws, IO shield, 2 x standoff for M.2 socket, Wi-Fi aerial, M.2 clip |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Compliant Standards | DisplayPort 1.4 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
CPU Socket
- Socket 1700
Χαρακτηριστικά
Product Code
07:125181
EAN Code
4719072912444
Manufacturer
MSI
