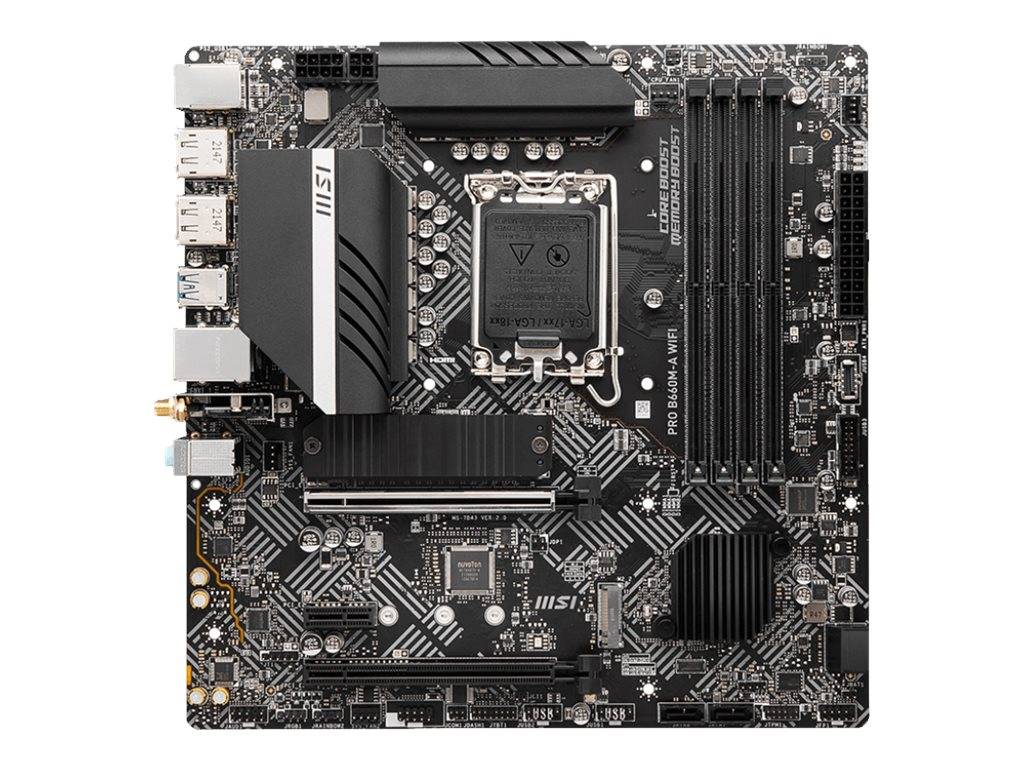

MSI PRO B660M-A WIFI / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D43-006R
7D43-006R
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B660 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 2 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 2 ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, MSI Audio Boost, Debug LED, MSI Mystic Light, Intel Optane Memory Ready, M.2 Shield FROZR, MSI Core Boost, NVIDIA Resizable BAR Support |
| Miscellaneous | Miscellaneous |
| Included Accessories | Case badge, 2 x M.2 screws, IO shield, 2 x standoff for M.2 socket, M.2 clip |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Compliant Standards | DisplayPort 1.4 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
CPU Socket
- Socket 1700
Χαρακτηριστικά
Product Code
07:129842
EAN Code
4719072942755
Manufacturer
MSI
