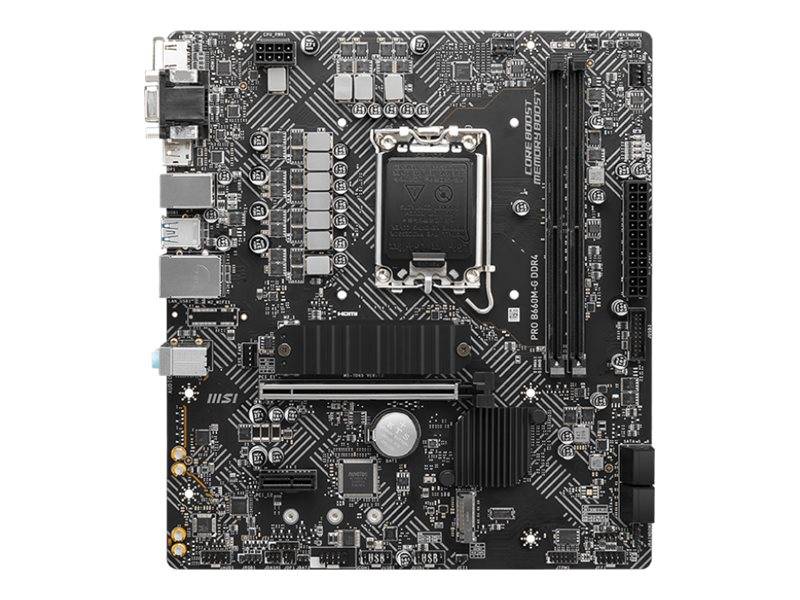

MSI PRO B660M-G DDR4 / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D45-001R
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- M.2 SHIELD FROZR
Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. - FROZR AI cooling
Detecting CPU and GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. - Fully controllable in BIOS and software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. - High-bandwidth and low-latency network
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. - Optimize network for lower latency
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. - A huge step of DDR performance
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
Special Features
- M.2 SHIELD FROZR
- FROZR AI cooling
- Fully controllable in BIOS and software
- High-bandwidth and low-latency network
- Optimize network for lower latency
- A huge step of DDR performance
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel B660 |
Processor Socket | LGA1700 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
Supported RAM | Supported RAM |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | Audio |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC897 |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Controller | Realtek RTL8125BG |
Network Interfaces | 2.5 Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |
Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features | Features |
BIOS Type | AMI |
BIOS Features | Multilingual BIOS, UEFI BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.4 support |
Hardware Features | MSI Audio Boost, anti-pop function, Debug LED, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, MSI Core Boost, Windows 11 compatible |
Miscellaneous | Miscellaneous |
Included Accessories | Case badge, IO shield, 2 x M.2 clips |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities |
Width | 24.4 cm |
Depth | 22 cm |
CPU Socket
- Socket 1700
Χαρακτηριστικά
Product Code
03:190383
EAN Code
4719072912475
Manufacturer
MSI
