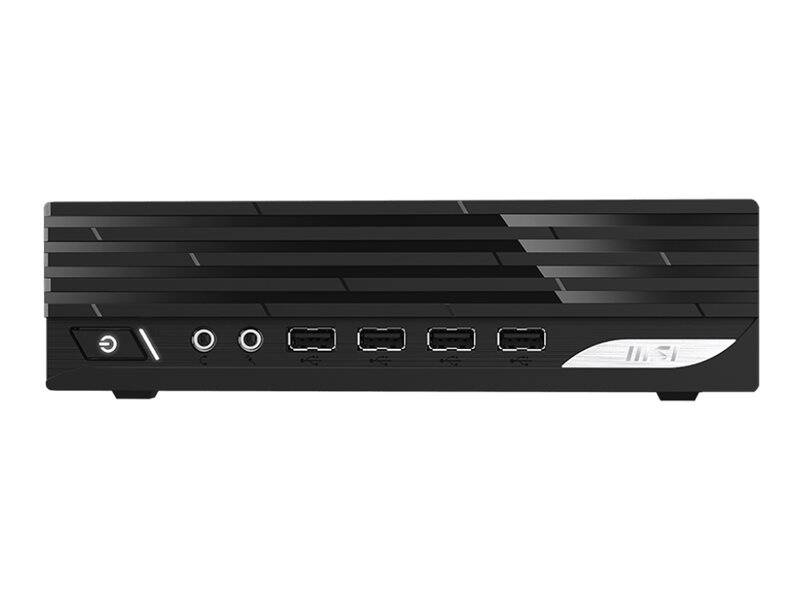

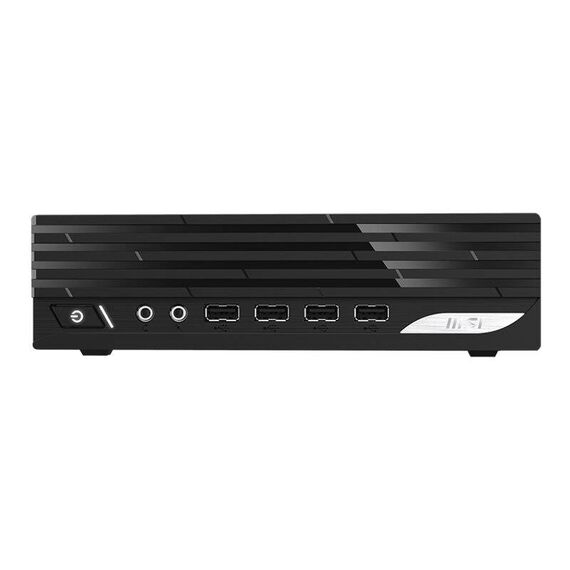

MSI PRO DP21 13M 485DE - SFF - Core i3 13100 / 3.4 GHz - RAM 8 GB - SSD 256 GB - NVMe - UHD Graphics 730 - GigE, 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - WLAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Home - monitor: none - black | 00B0A421-485
Product Features
- Tiny yet powerful
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday. - Ready for various scenarios
MSI always focuses on how to improve the efficiency, stability and flexibility for users in any kinds of situations. - Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector and a fast USB 3.2 Gen 2 Type-A port. - COM port device support
With a COM port and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more. The COM port can also communicate with the programmable logic controllers (PLCs) or with other module such as operator/HMI, motor controller, a robot or vision system in the intelligent factory. - Various I/O ports
With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devices to make you work more efficiently.
Special Fetures
- Tiny yet powerful
- Ready for various scenarios
- Reversible Type-C With USB 3.2 Gen 2
- COM Port Device Support
- TPM design secures your confidential data with encryption keys
- Various I/O Ports
- Support 4K UHD Display
Product Specification
Type | Personal computer |
Product Form Factor | Small form factor |
Built-in Devices | 65W airflow cooler |
Embedded Security | Trusted Platform Module (TPM) Security Chip |
Colour | Black |
Processor / Chipset | |
CPU | Intel Core i3 (13th Gen) 13100 |
Clock Speed | 3.4 GHz (P-core) / 1.8 GHz (E-core) |
Max Turbo Speed | 4.5 GHz (P-core) / 3.3 GHz (E-core) |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Chipset Type | Intel H610 |
Cache Memory | |
Installed Size | 12 MB |
Cache Per Processor | 12 MB |
RAM | |
Installed Size | 8 GB / 64 GB (max) |
Technology | DDR4 SDRAM |
Effective Memory Speed | 3200 MHz |
Rated Memory Speed | 3200 MHz |
Form Factor | SO-DIMM 260-pin |
Configuration Features | 1 x 8 GB |
Hard Drive | |
Type | SSD - M.2 |
Capacity | 1 x 256 GB |
Interface Type | PCI Express 3.0 x4 |
Features | NVM Express (NVMe) |
Storage Controller | |
Type | 1 x SATA |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | Intel UHD Graphics 730 |
Video Interfaces | HDMI, DisplayPort |
Audio Output | |
Sound Output Mode | 5.1 channel surround |
Compliant Standards | High Definition Audio |
Networking | |
Ethernet Controller | Realtek RTL8111H |
Wireless LAN Supported | Yes |
Wireless NIC | Intel Wi-Fi 6E AX 211 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
Expansion / Connectivity | |
Bays | 2 (total) / 2 (free) x internal 2.5" |
Slots | 1 (total) / 0 (free) x M.2 Card |
Interfaces | 1 x headphones (1 in front) ¦ 2 x microphone (1 front, 1 rear) ¦ 4 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ 1 x HDMI output ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial (1 rear) ¦ 1 x audio line-out (1 rear) ¦ 1 x DisplayPort 1.4 ¦ 1 x USB 3.2 Gen 2 (1 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) |
Miscellaneous | |
VESA Mounting Interface | 100 x 100 mm |
Compliant Standards | FCC Class B certified, UL, BSMI, cUL, CB |
Power | |
Device Type | Power adapter |
Power Provided | 120 Watt |
Operating System / Software | |
OS Provided | Windows 11 Home |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Dimensions & Weight | |
Width | 20.4 cm |
Depth | 20.8 cm |
Height | 5.49 cm |
Weight | 1.27 kg |
- Intel Core i3
