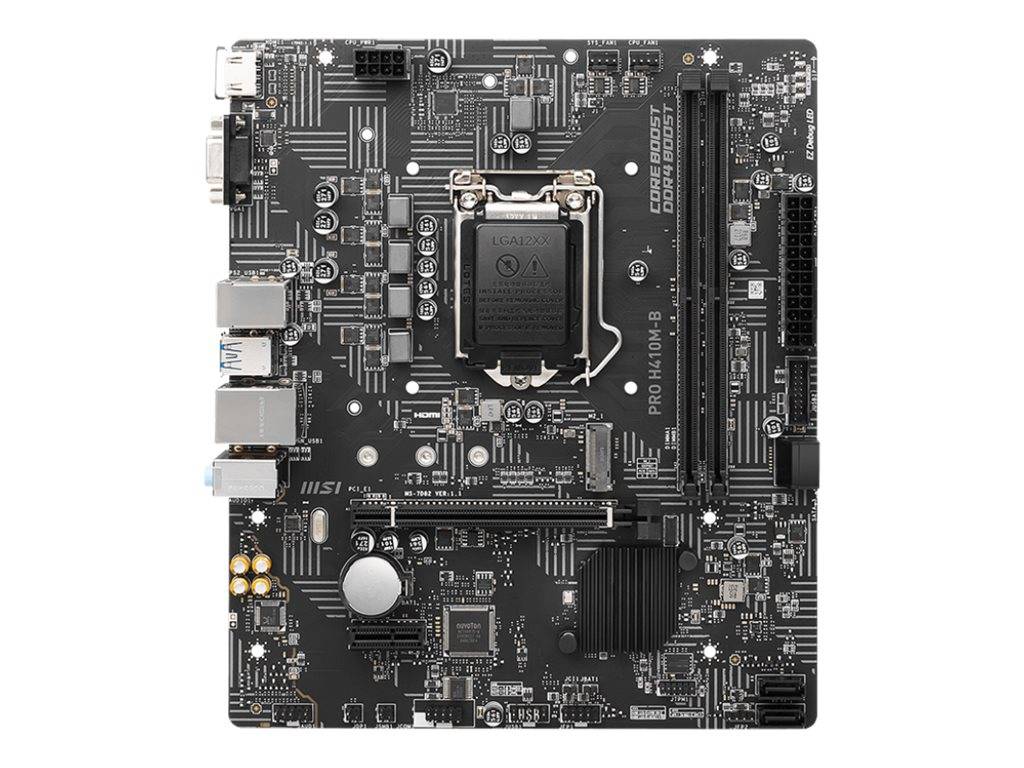

MSI PRO H410M-B / Motherboard / micro ATX / LGA1200 Socket / H410 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D82-001R
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Total Fan Control
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. - EZ Debug LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again. - Ultimate motherboard protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. - Optimize network for lower latency
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. - Fast and future-ready storage
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. - USB 3.2 Gen 1
Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices. - Core Boost technology
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. - Isolated audio design
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. - Separated audio layers for clean left & right channels
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. - De-pop protection
Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off. - Secure Boot
Secure Boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
Special Features
- Supports 10th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel H410 |
Processor Socket | LGA1200 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM | Supported RAM |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | Audio |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC892/ALC897 |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Controller | Realtek RTL8111 |
Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Miscellaneous | Miscellaneous |
Included Accessories | I/O back plate, case badge |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities |
Width | 23.6 cm |
Depth | 20.2 cm |
CPU Socket
- Socket 1200
Χαρακτηριστικά
Product Code
03:188797
EAN Code
4719072917395
Manufacturer
MSI
