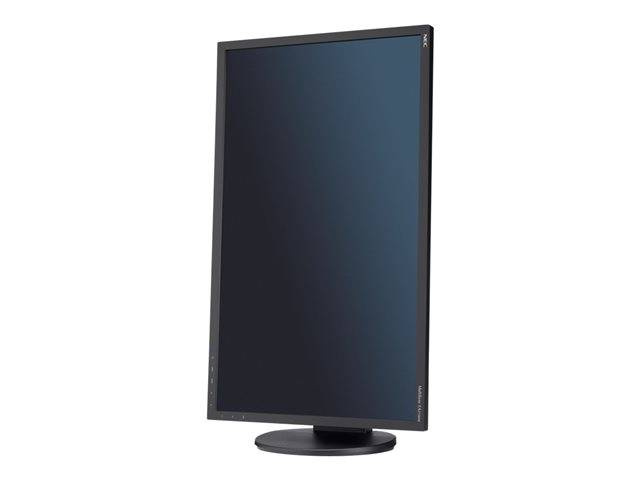

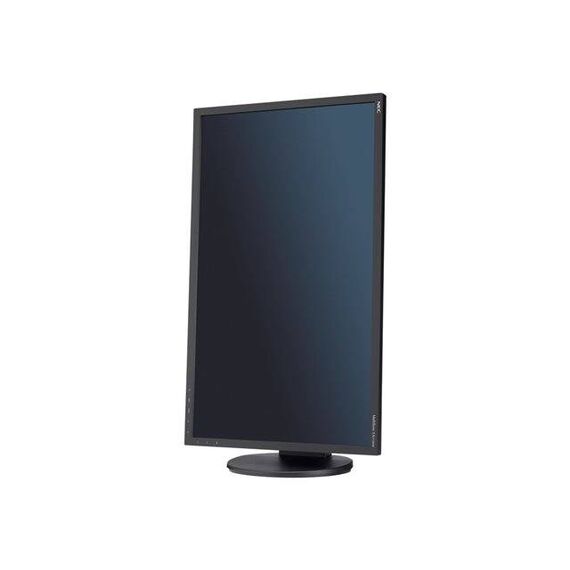

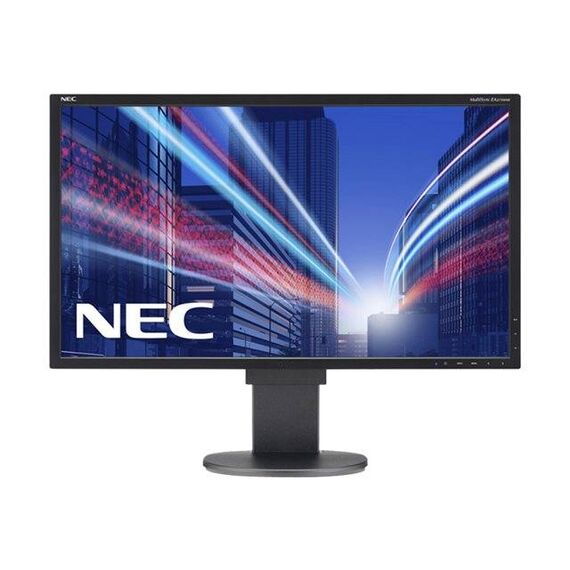

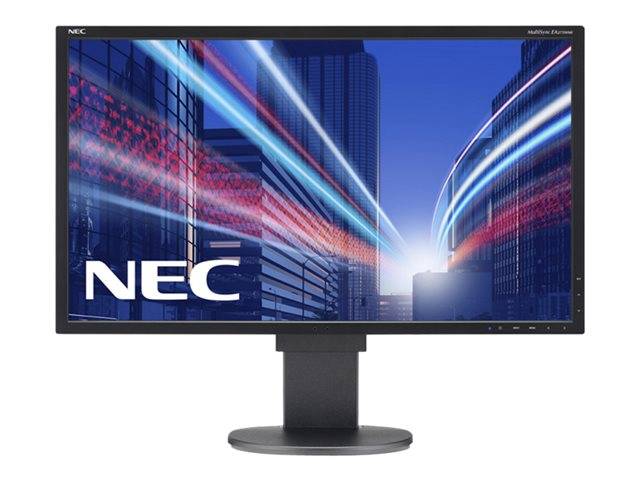

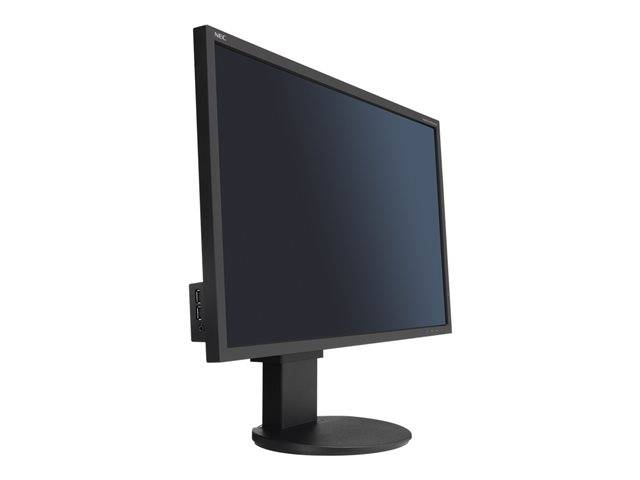

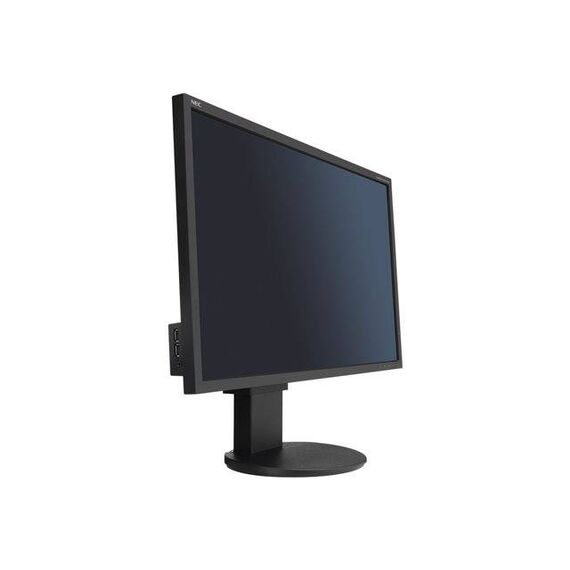

NEC MultiSync EA275WMi / LED monitor / 27" / 2560 x 1440 / IPS / 350 cd/m2 / 1000:1 / 6 ms / HDMI, DVI-I, DisplayPort / speakers / black | 60003813
NEC MultiSync EA275WMi / LED monitor / 27" / 2560 x 1440 / IPS / 350 cd/m2 / 1000:1 / 6 ms / HDMI, DVI-I, DisplayPort / speakers / black | 60003813
Description The 27" NEC MultiSync EA275WMi is a WQHD LCD designed for multiple-monitor configurations. This widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand (130 mm) and full connectivity with DisplayPort, HDMI and DVI-I inputs as well as a DisplayPort output. The EA275WMi includes touch-sensitive On Screen Display controls, a Picture by Picture (PBP) mode for two inputs onscreen at the same time, streamlined cable management and ControlSync technology, which allows users to control the settings of up to six units in a multi-monitor configuration. Special Features
|
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Energy Class | Class C |
Energy Consumption per Year | 64 kWh |
Power Consumption (On mode) | 47 W |
Diagonal Size | 27" |
Built-in Devices | USB 3.0 hub |
Panel Type | IPS |
Aspect Ratio | Widescreen - 16:9 |
Native Resolution | 2560 x 1440 at 60 Hz |
Pixel Pitch | 0.233 mm |
Brightness | 350 cd/m² |
Contrast Ratio | 1000:1 / 20000:1 (dynamic) |
Response Time | 6 ms |
Vertical Refresh Rate | 56 - 75 Hz |
Horizontal Refresh Rate | 31.5 - 83 kHz |
Horizontal Viewing Angle | 178 |
Vertical Viewing Angle | 178 |
Backlight Technology | WLED |
Controls & Adjustments | Brightness, contrast, colour temperature |
Features | Ambient light sensor, Intelligent Power Manager (IPM), power off timer, sRGB colour management, Eco-Mode, ControlSync, OSD lock, integrated cable management, Human Sensor, NaViSet Administrator 2, DICOM Simulation |
Colour | Black |
Dimensions (WxDxH) | 63.92 cm x 23 cm x 41.79 cm - with stand |
Weight | 8.7 kg |
Type | Speakers - stereo |
Output Power / Channel | 1 Watt |
Interfaces | DVI-I ¦ HDMI ¦ DisplayPort ¦ DisplayPort output ¦ USB 3.0 upstream ( Type B ) ¦ 2 x USB 3.0 downstream ( Type A ) ¦ Headphones ¦ Audio line-in ¦ USB 2.0 downstream ( Type A ) |
Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
Tilt Angle | -5/+30 |
Swivel Angle | 340 |
Rotation Angle | 90 |
Height Adjustment | 130 mm |
Flat Panel Mount Interface | 100 x 100 mm |
Features | Security lock slot (cable lock sold separately) |
Cables Included | 1 x DisplayPort cable - DisplayPort to DisplayPort ¦ 1 x ControlSync cable ¦ 1 x USB cable |
Compliant Standards | FCC Class B certified, MPR II, CSA, UL, TUV GS, GOST, cUL, DDC-2B, DDC-2Bi, MPR III, TUV Ergo, DDC/CI, RoHS, ISO 9241-307, TCO Certified Edge, TCO Displays 6.0, EDID compatible |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operational | 57 Watt |
Power Consumption Stand by | 0.47 Watt |
Service & Support | Limited warranty - 3 years ¦ Limited warranty - backlight - 3 years |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 - 80% |
