Home/Hard drives/Solid State Drives (SSD)/Samsung 970 EVO Plus MZ-V75S500BW / Solid state drive / encrypted / 500 GB / internal / M.2 2280 / PCI Express 3.0 x4 (NVMe) / buffer: 512 MB / 256-bit AES / TCG Opal Encryption | MZ-V7S500BW

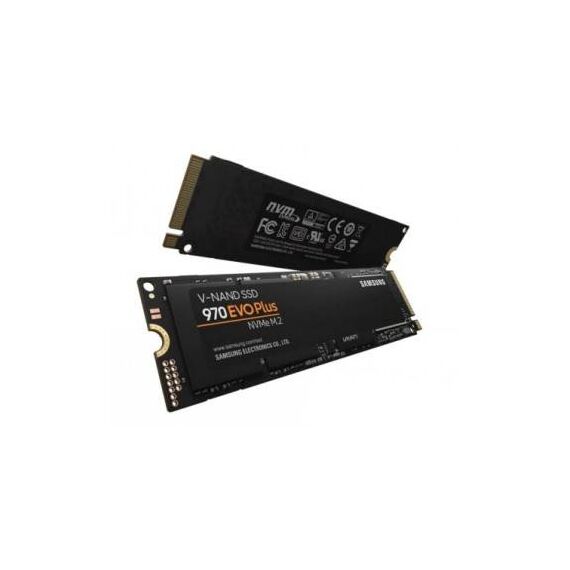

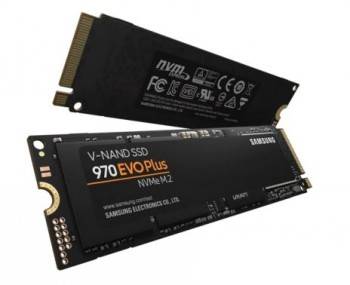

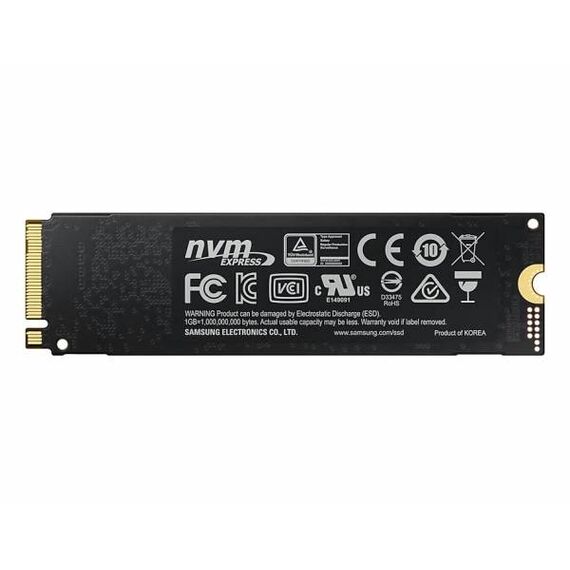

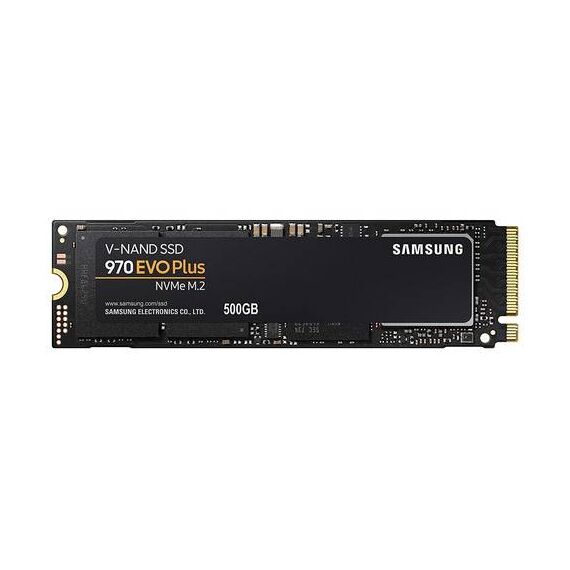

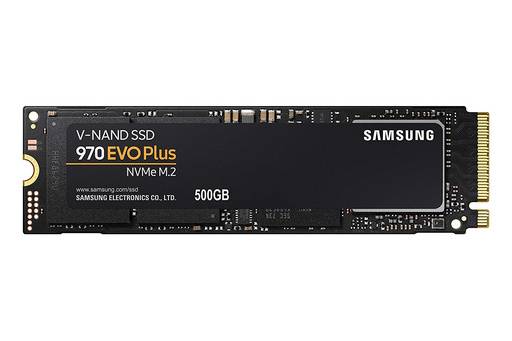

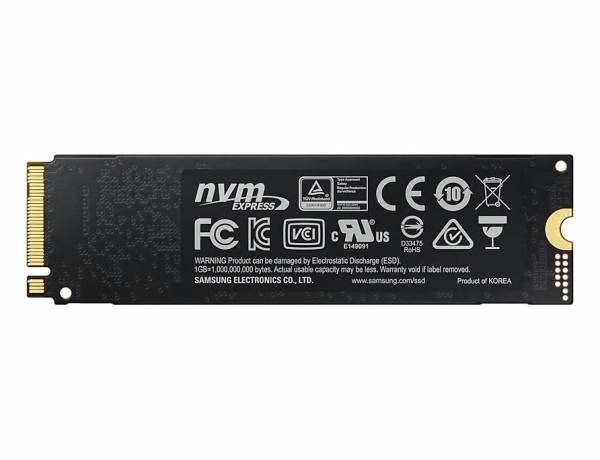

Samsung 970 EVO Plus MZ-V75S500BW / Solid state drive / encrypted / 500 GB / internal / M.2 2280 / PCI Express 3.0 x4 (NVMe) / buffer: 512 MB / 256-bit AES / TCG Opal Encryption | MZ-V7S500BW

Brand: Samsung

Samsung 970 EVO Plus 500GB M.2 2280 SSD MZ-V7S500BW

Write a review

CODE (SKU):

MZ-V7S500BW

€95.53 €106.15

€113.68 inc. VAT

Out of stock

Add to wish list Ask a question

Form Factor2.5", Internal Capacity500GB InterfaceM.2 Product Code07:334061 EAN Code8801643628116 ManufacturerSamsung

Sales 10%

Find similar

Delivery

Payment options

Description
Features
Reviews

Samsung 970 EVO Plus MZ-V75S500BW / Solid state drive / encrypted / 500 GB / internal / M.2 2280 / PCI Express 3.0 x4 (NVMe) / buffer: 512 MB / 256-bit AES / TCG Opal Encryption | MZ-V7S500BW

Description

The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by Samsung's V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for superb computing.

Samsung 970 EVO Plus MZ-V75S500BW / Solid state drive | MZ-V7S500BW

Special Features

V-NAND technology
Dynamic Thermal Guard
Intelligent TurboWrite

Product features

Level up performance
Samsung's V-NAND technology - which brings greater NAND performance and higher power efficiency - along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speeds.
Design flexibility
The 970 EVO Plus fits high capacity onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.
Unparalleled reliability
Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable remarkable heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to help minimize performance drops.

Product Specification

Device Type	Solid state drive - internal
Capacity	500 GB
Hardware Encryption	Yes
Encryption Algorithm	256-bit AES
NAND Flash Memory Type	Triple-level cell (TLC)
Form Factor	M.2 2280
Interface	PCI Express 3.0 x4 (NVMe)
Buffer Size	512 MB
Features	TRIM support, sleep mode, Auto Garbage Collection Algorithm, V-NAND Technology, NVM Express (NVMe) 1.3, Samsung Phoenix Controller, S.M.A.R.T.
Width	22.15 mm
Depth	80.15 mm
Height	2.38 mm
Weight	8 g
SSD Endurance	300 TB
Internal Data Rate	3500 MBps (read) / 3200 MBps (write)
4KB Random Read	19000 IOPS
4KB Random Write	60000 IOPS
Maximum 4KB Random Write	550000 IOPS
Maximum 4KB Random Read	480000 IOPS
MTBF	1,500,000 hours
Interfaces	PCI Express 3.0 x4 (NVMe) - M.2 Card
Compatible Bay	M.2 2280
Power Consumption	5.8 Watt (average) ¦ 9 Watt (maximum) ¦ 30 mW (idle max)
Compliant Standards	IEEE 1667
Service & Support	Limited warranty - 5 years
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
Shock Tolerance (operating)	1500 g @ 0.5 ms half-sine
