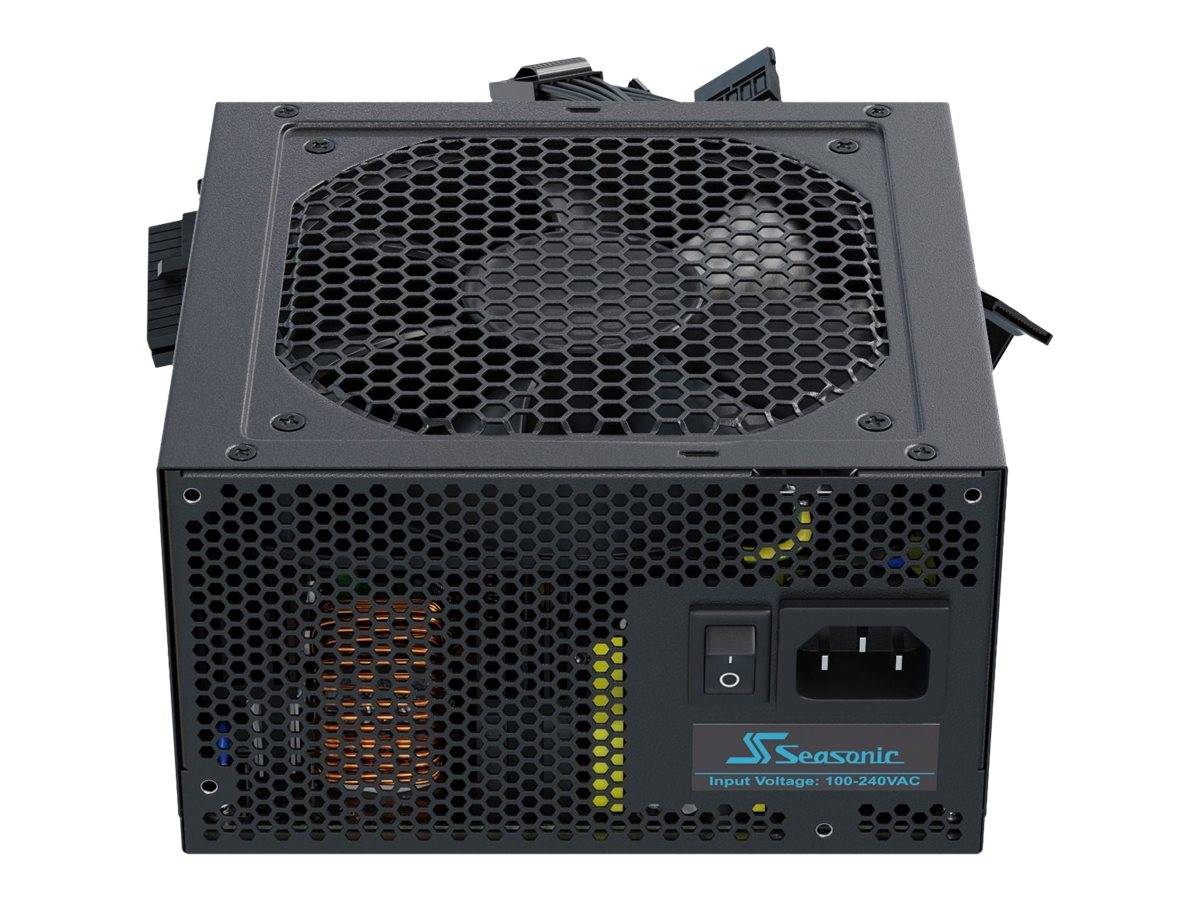

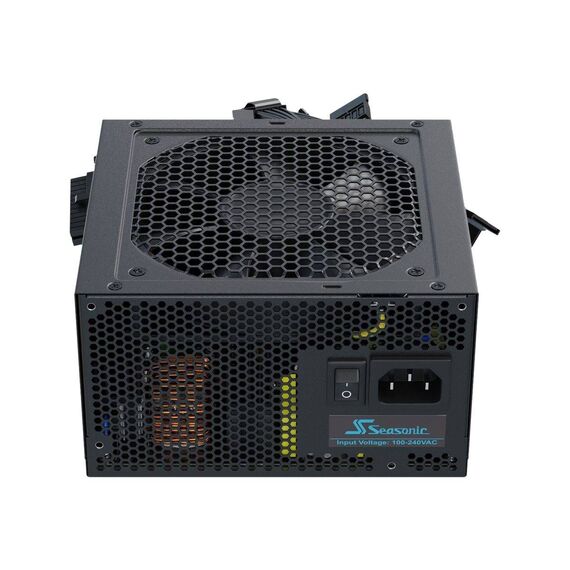

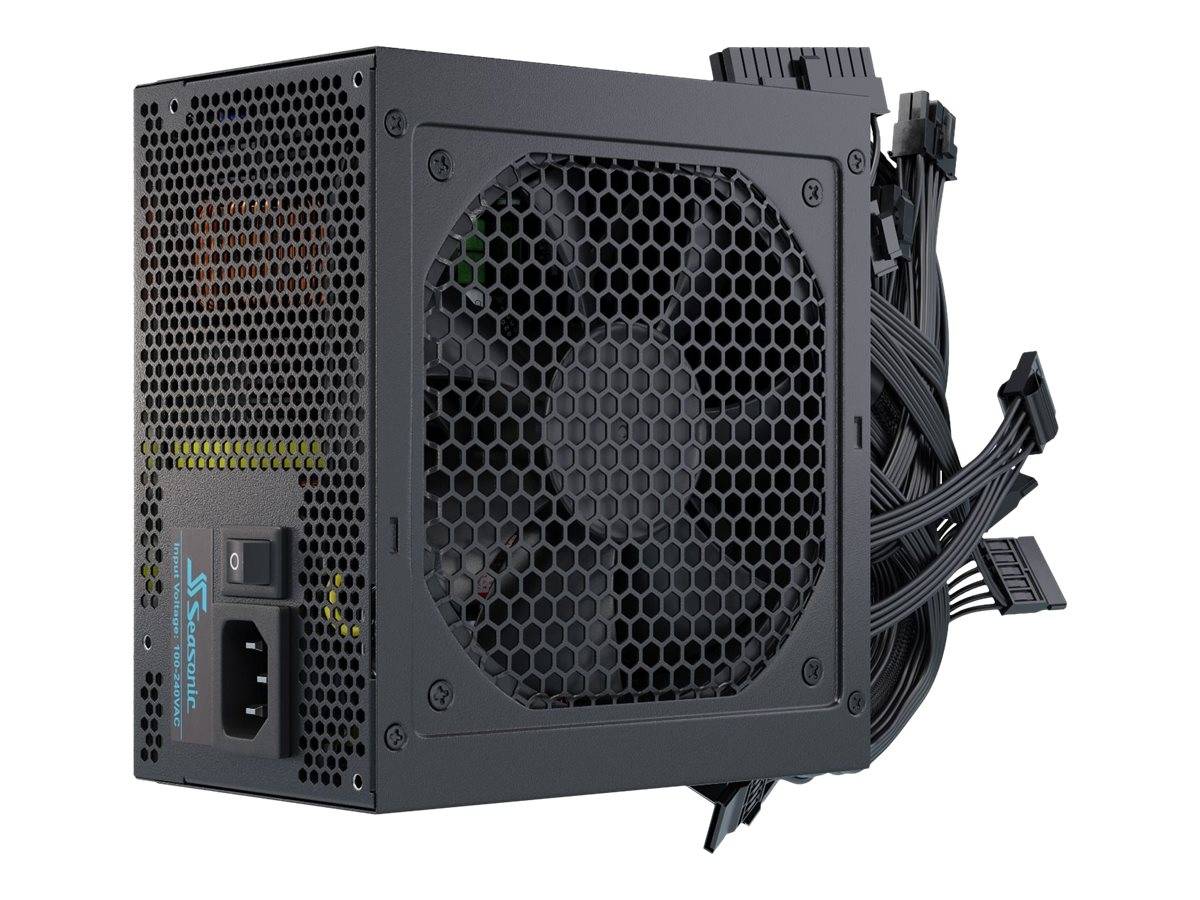

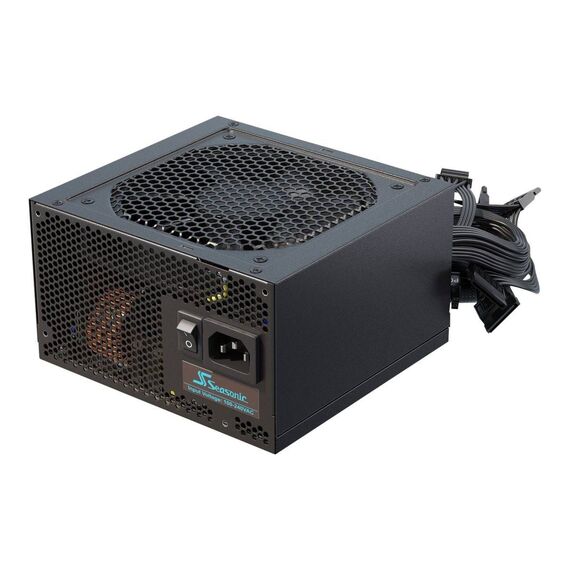

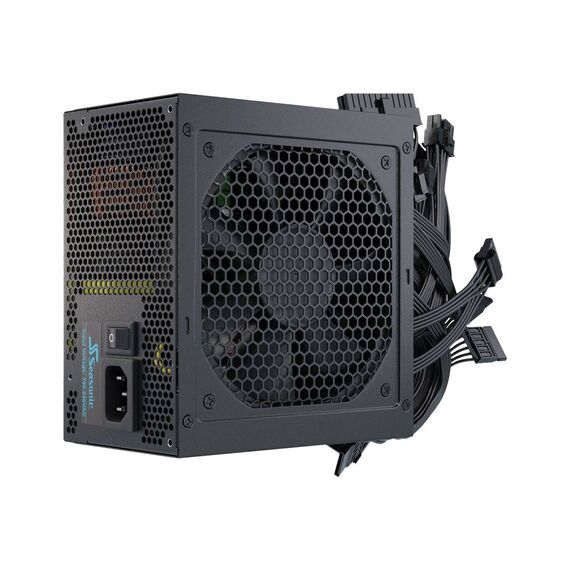

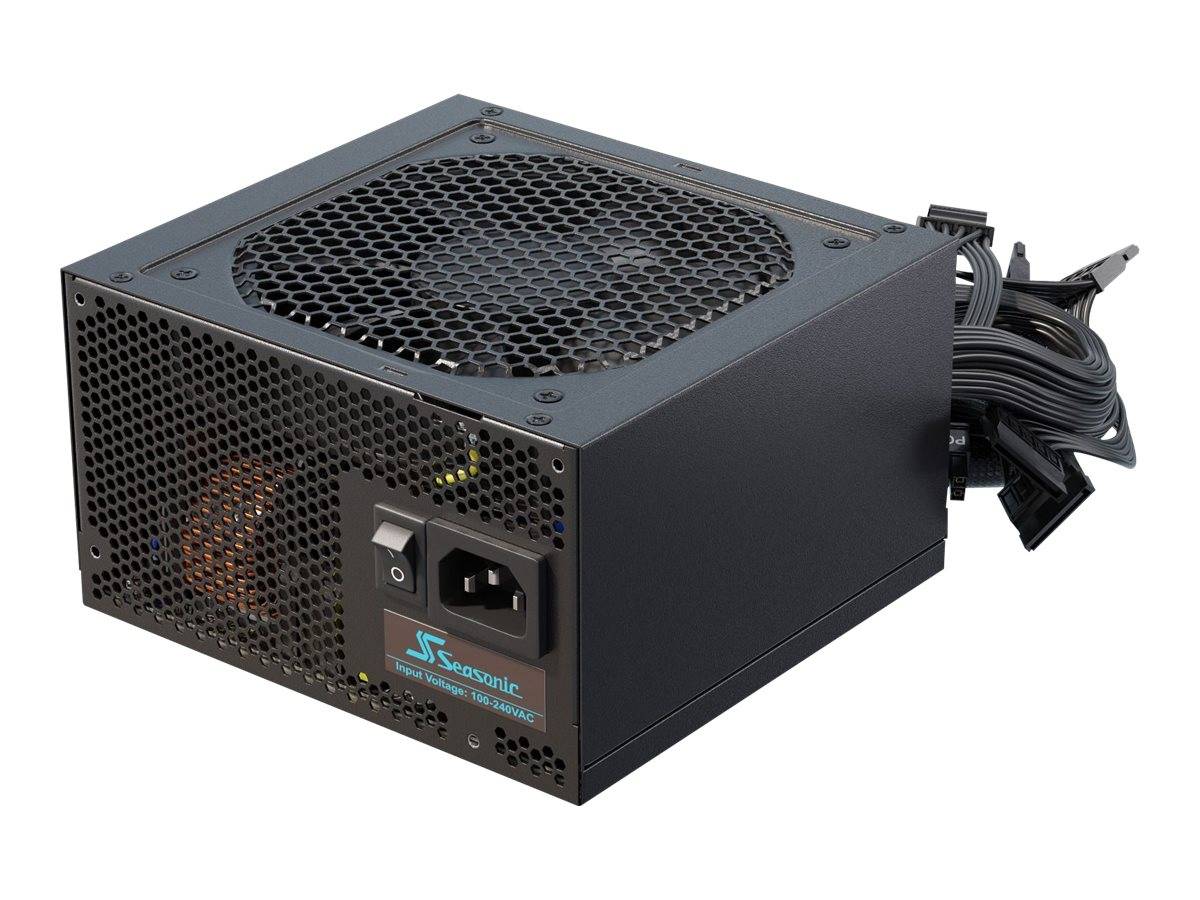

Seasonic G12 GC-850 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 850 Watt / active PFC | G12-GC-850
G12-GC-850
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- 80 PLUS Gold
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load. - S2FC - smart and silent fan control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
Special Features
- 80 PLUS Gold certified
- Fixed cables
- Tight voltage regulation
- S2FC - smart and silent fan control
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +5V - 15 A ¦ +3.3V - 15 A ¦ +12V - 70 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 87% at 20% Load, 90% at 50% Load, 87% at 100% Load |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, short-circuit protection, Smart & Silent Fan Control (S2FC), sleeve bearing cooling fan, non-modular |
| Compliant Standards | TUV, CB, CCC, FCC, WEEE, cTUVus, REACH, EAC, ErP Lot 6 2013 Ready |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Χαρακτηριστικά
Product Code
07:126252
EAN Code
4711173876755
Manufacturer
Sea Sonic
