Shuttle SERIAL PORT RS232
Shuttle H-RS232 SERIAL PORT RS232

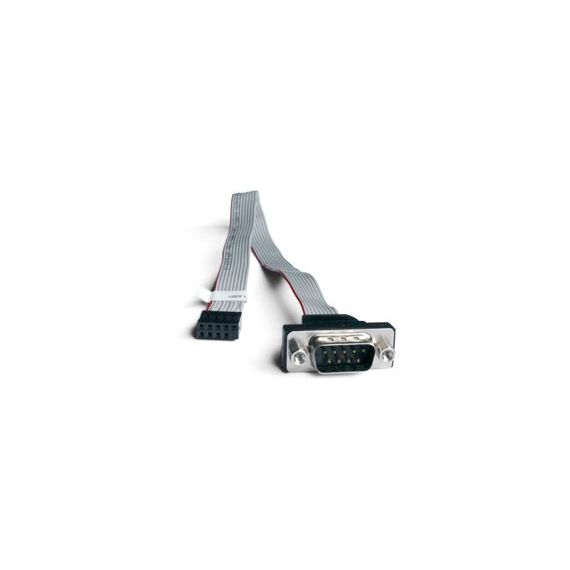

SERIAL PORT RS232Shuttle XPC Accessory H-RS232 - Serial Port Adapter RS232
With the help of this adapter, several Shuttle XPCs can be equipped with a serial RS232 port.
Doing so, a Sub-D connector is added to the backpanel which is connected to the serial interface on the mainboard.
Scope of delivery:
- Adapter with installation guide
- External: Sub-D, 9 pins, male;
- Internal: 10-pin 2×5, female, 2.54mm pitch.
- 9 pin ribbon cable, length: 32cm.
- This accessory is compatible with the Shuttle XPCs SH67H3, SH67H7, SH61R4, SA76R4 and SZ68R5.
|Cable length:||0.32 m|
|Connector 1:||9-p Sub-D M|
|Connector 2:||10-p RS-232 F|
|Colour of product:||Black, Grey|
