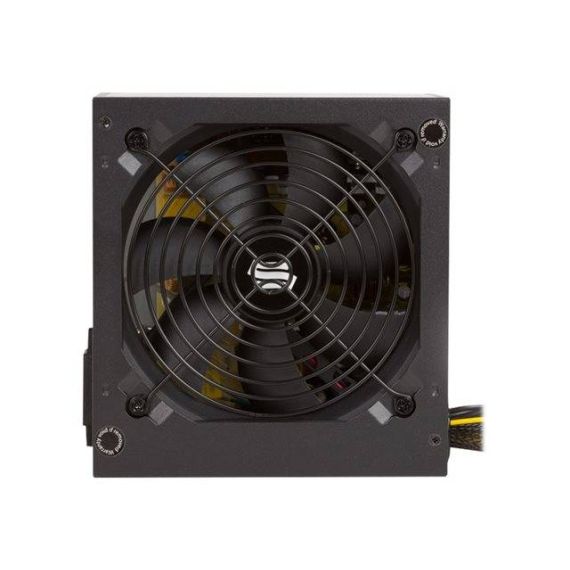

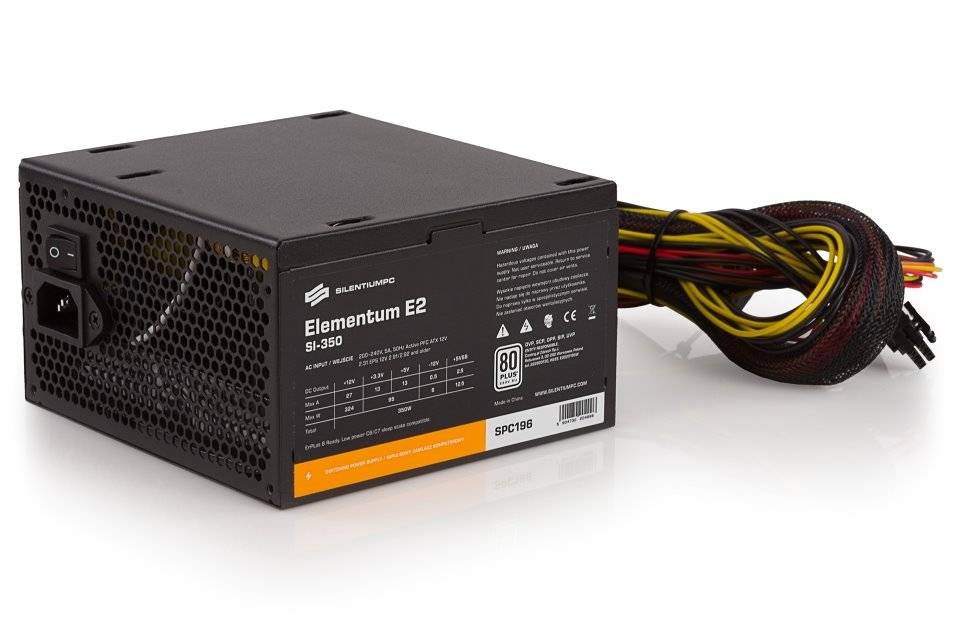

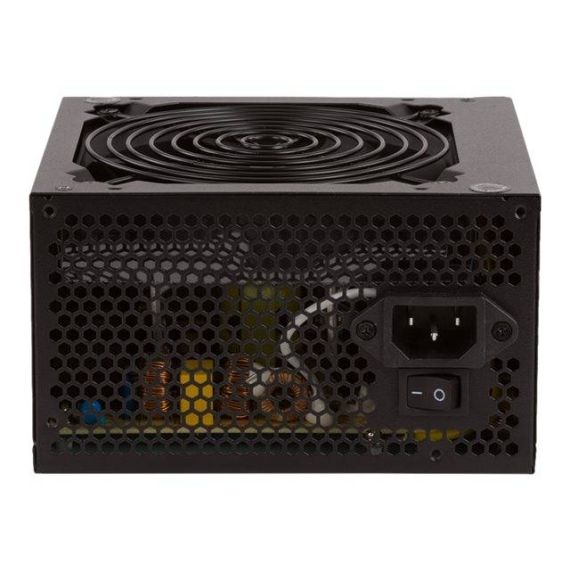

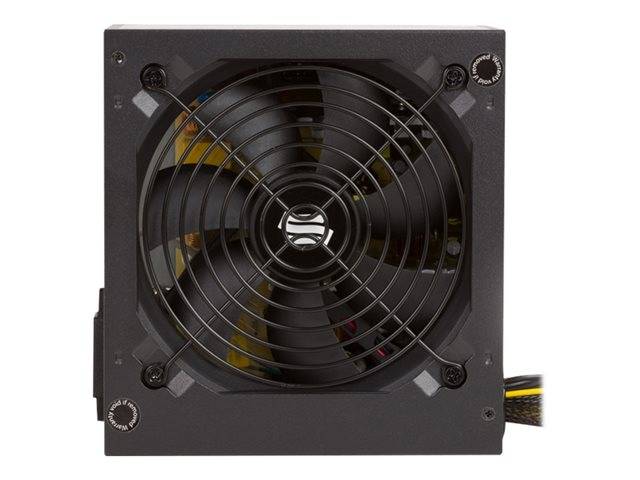

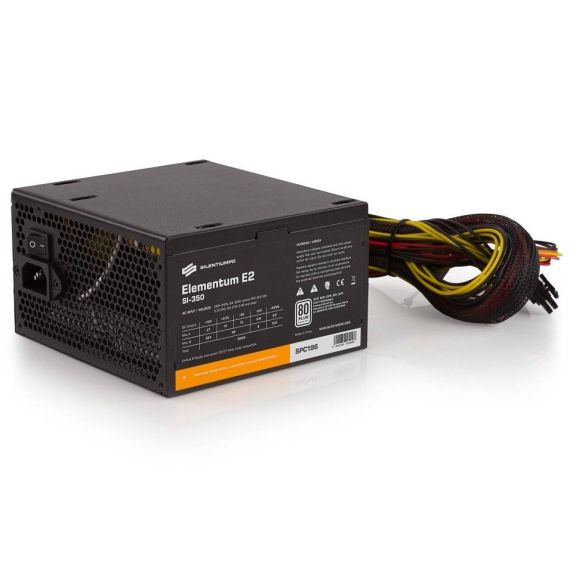

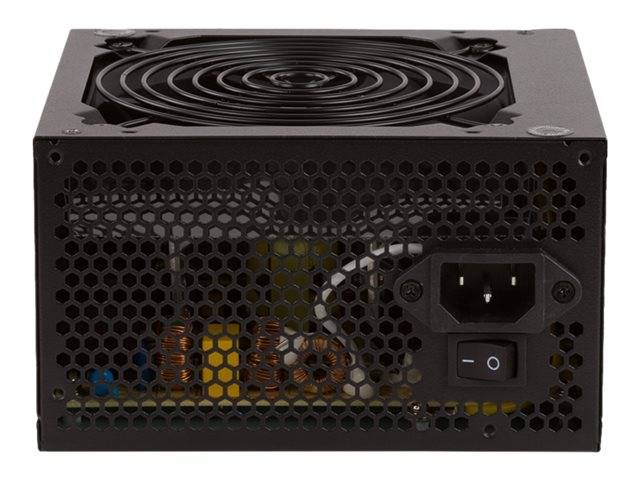

SilentiumPC Elementum E2 SI / Power supply (internal) / ATX12V 2.31 / 80 PLUS / AC 200-240 V / 350 Watt / active PFC / Europe | SPC196
Description
The Elementum E2 SI unit is specifically targeted at value-oriented system builders. It supports single GPU configurations while ensuring stable and reliable operation.
SilentiumPC Elementum E2 SI / Power supply (internal) | SPC196
Special Features
- Silent operation
- High efficiency
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Output Current | +3.3V - 13 A ¦ +5V - 13 A ¦ +12V - 27 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| Efficiency | 82% at 20% Load, 85% at 50% Load, 85% at 100% Load |
| Power Factor (PF) | 0.99 |
| 80 PLUS Certification | 80 PLUS |
| Cables Included | Power cable 1.5 m |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, fan speed control |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 6 |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 3 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.27 kg |
Χαρακτηριστικά
Product Code
03:141501
EAN Code
5904730204996
Manufacturer
Silentium PC
