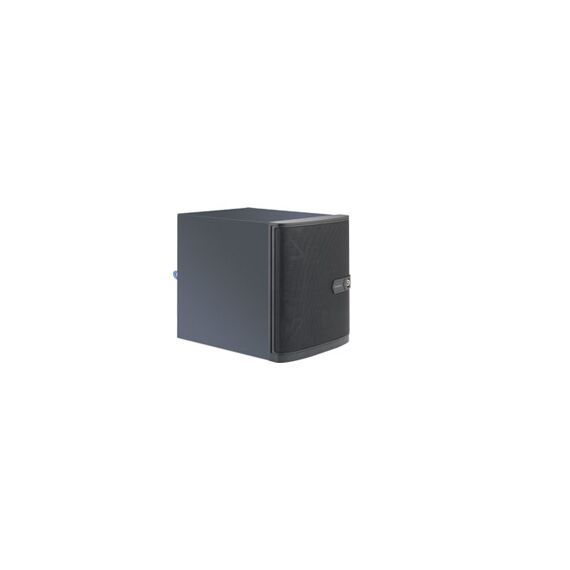

Supermicro SuperServer 5028D-TN4T / Server / MT / Xeon D-1540 / 2 GHz / RAM 0 MB / SATA / hot-swap 3.5" / no HDD / AST2400 / GigE, 10 GigE / no OS / monitor: none | SYS-5028D-TN4T
SYS-5028D-TN4T
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Supermicro SuperServer 5028D-TN4T / Server / MT / Xeon D-1540 / 2 GHz / RAM 0 MB / SATA / hot-swap 3.5" / no HDD / AST2400 / GigE, 10 GigE / no OS / monitor: none | SYS-5028D-TN4T
|
Description Supermicro's systems based on the Intel Xeon processor system-on-chip are well-suited for space-efficient, compact design, network security appliance, high performance NAS servers. Applications includes cloud and virtualization, corporate-WINS, DNS, and business critical applications. Special Features
|
Product Specification
| Type | Server |
| Product Form Factor | Mini tower |
| Internal Bays Qty | 2 |
| Hot-Swap Bays Qty | 4 |
| Colour | Black |
| CPU | Intel Xeon D-1540 / 2 GHz |
| Max Turbo Speed | 2.6 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Installed Size | 0 MB / 128 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Features | Unbuffered, registered |
| RAM Supported | 128 GB - registered - ECC ¦ 64 GB - unbuffered - ECC ¦ 64 GB - unbuffered - non-ECC |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 6 |
| Monitor Type | None. |
| Graphics Processor | ASPEED AST2400 |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | DMI 2.3, IPMI 2.0 |
| Features | ACPI support, KVM over IP support |
| Bays | 2 (total) / 2 (free) x internal 2.5" ¦ 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 1 (free) x 5.25" Slim Line / 2.5" shared |
| Slots | 4 (total) / 4 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x M.2 Card ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 2 x USB 3.0 ¦ 1 x VGA ¦ 2 x USB 2.0 ( 2 in front ) ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 |
| Cables Included | Serial ATA cable ( 5 pcs.) ¦ SGPIO cable |
| Features | UEFI BIOS |
| Compliant Standards | Plug and Play, RoHS, ACPI 4.0 |
| Device Type | Power supply |
| Nominal Voltage | AC 120/230 V ( 50 - 60 Hz ) |
| Power Provided | 250 Watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| OS Provided | No operating system |
| Service & Support | Limited warranty - labour - 3 years ¦ Limited warranty - parts - 1 year |
| Width | 21 cm |
| Depth | 27.9 cm |
| Height | 24 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
Χαρακτηριστικά
Product Code
S680951
EAN Code
0672042189205
Manufacturer
SUPERMICRO
