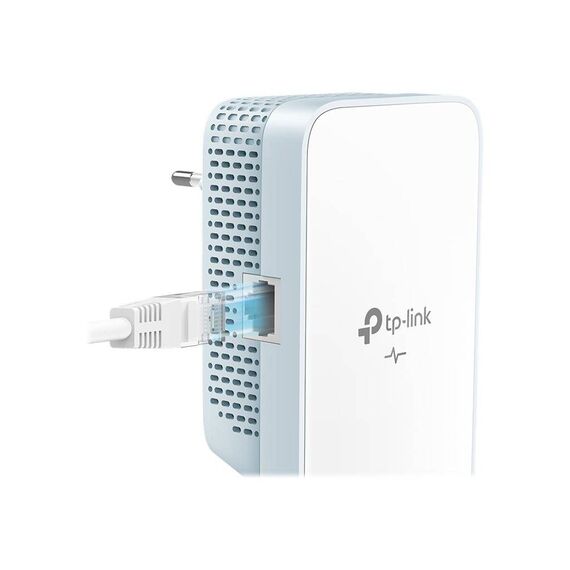

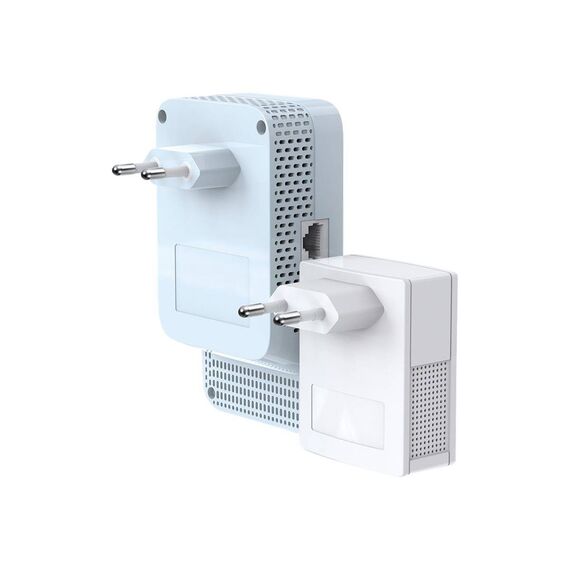

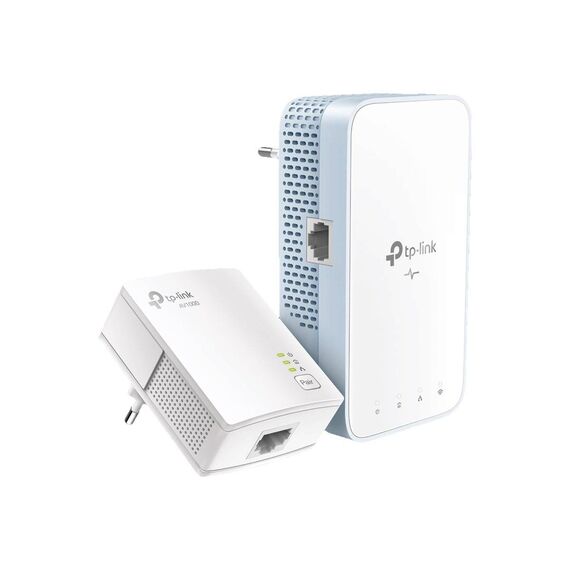

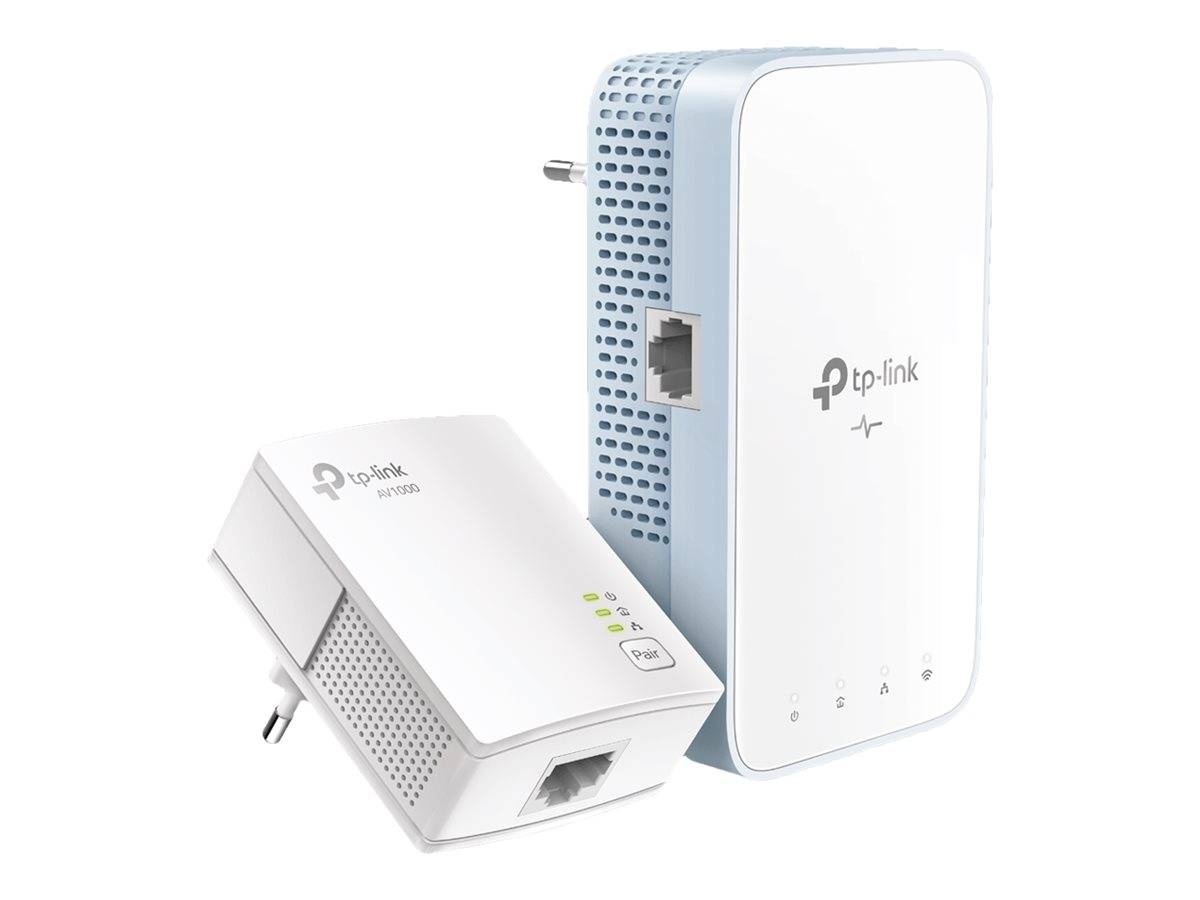

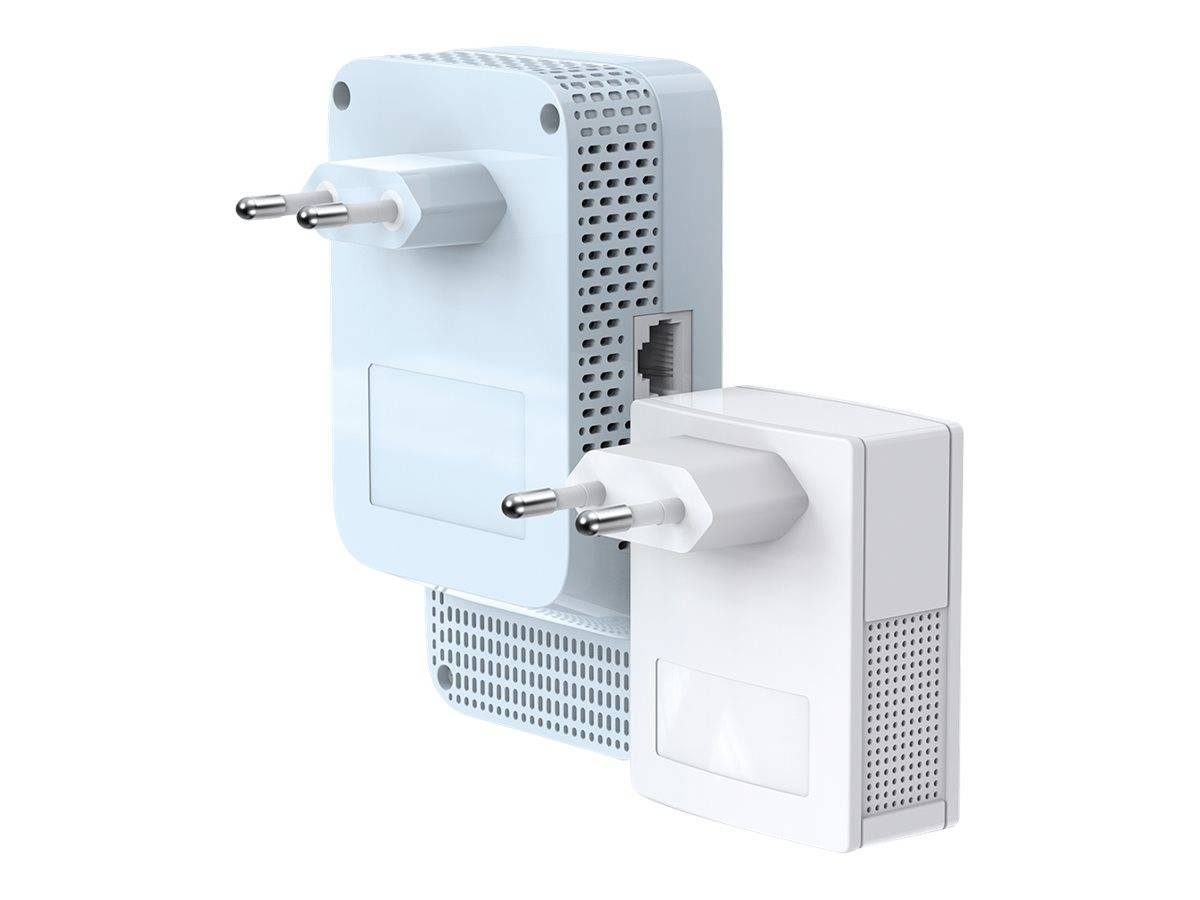

TP-Link TL-WPA7517 KIT V1 Wi-Fi Kit / Powerline adapter kit / GigE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 / 802.11a/b/g/n/ac / Dual Band / wall-pluggable / with TP-Link TL-PA7010 | TL-WPA7517 KIT
Product Features
- Wireless AC standard
AC750 dual band Wi-Fi (433Mbps on 5GHz and 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home. - HomePlug AV2
Provides up to 1000Mbps high-speed data transmission over a home's existing electrical wiring. - Gigabit Ethernet ports
Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS. - Speed optimization
Supports IGMP managed multicast IP transmission, optimizing IPTV streaming. - Wi-Fi Auto-Sync
Simply copy your router's Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move. - TP-Link tpPLC
Allows you to easily manage your network using the intuitive tpPLC App or the tpPLC Utility. - Plug, pair, and play
Quickly set up a secured Powerline network. - Pair button
Provides a connection with 128-bit AES encryption, at the touch of a "Pair" button. - Parental controls
Manage when and how connected devices can access the Internet. - Encryptions for secure network
WPA-PSK / WPA2-PSK encryptions provide active protection against security threats. - Up to 300 meters range
Up to 300 meters / 1000 feet range over the existing household power circuit.
Special Features
- Plug and Play
- Ideal for 4K HD streaming and lag-free gaming
- One-touch Wi-Fi configuration
Product Specification
Device Type | Powerline adapter kit - with TP-Link TL-PA7010 |
Enclosure Type | Wall-pluggable |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, IEEE 802.11ac |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 1 Gbps |
Max Range Indoors | 300 m |
Network / Transport Protocol | CSMA/CA |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Encryption Algorithm | 128-bit AES |
Authentication Method | Radio Service Set ID (SSID) |
Wi-Fi Rating | AC750 |
Features | Quality of Service (QoS), reset button, Type of Service (ToS), integrated power plug, Wi-Fi Clone button, LED on/off button, pair button |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV, HomePlug AV 2.0, IEEE 1901, IEEE 802.11ac, Plug and Play, FCC, RoHS |
Status Indicators | Port status, power, powerline, 2.4/5 GHz |
Line Properties | Line Properties |
Line Coding Format | OFDM |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x HomePlug AV 2.0 |
Power | Power |
Power Device | Internal power supply |
Power Consumption Operational | 6.5 Watt |
Miscellaneous | Miscellaneous |
Cables Included | 2 x network cable |
Software / System Requirements | Software / System Requirements |
OS Required | Linux, Apple MacOS X 10.7 or later, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
Dimensions & Weight | Dimensions & Weight |
Width | 6.95 cm |
Depth | 3.5 cm |
Height | 12.41 cm |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
