TP-LINK TD-W8968 / Wireless router / DSL modem / 4-port switch / 802.11b/g/n / 2.4 GHz | TD-W8968
TP-LINK TD-W8968 / Wireless router / DSL modem / 4-port switch / 802.11b/g/n / 2.4 GHz | TD-W8968
Description TP-LINK's TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router is an incredibly robust all-in-one device allowing users to access high-speed internet connection via ADSL or Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at 300Mbps wireless 802.11n speeds. With its multi-function USB port, users can share printers, files and play media across the local network or access files from attached USB storage across the internet using the TD-W8968's FTP server function. Special Features
Product features
|
Product Specification
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency Band | 2.4 GHz |
Data Transfer Rate | 300 Mbps |
Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, DDNS |
Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP |
Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, CLI |
Encryption Algorithm | 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
Features | NAT support, VPN support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), DoS attack prevention, ALG support, MAC address filtering, Wireless Distribution System (WDS) support, IP address filtering, DHCP server, Multiple SSID support, static IP mode, Stateful Packet Inspection Firewall (SPIF) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, ANSI T1.413, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, UPnP , FCC, RoHS |
Status Indicators | Port status, link activity, power |
Framing Format | ANSI T1.413 |
Type | DSL modem |
Digital Signaling Protocol | ADSL, ADSL2+ |
Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.5 |
Max Transfer Rate | 24 Mbps |

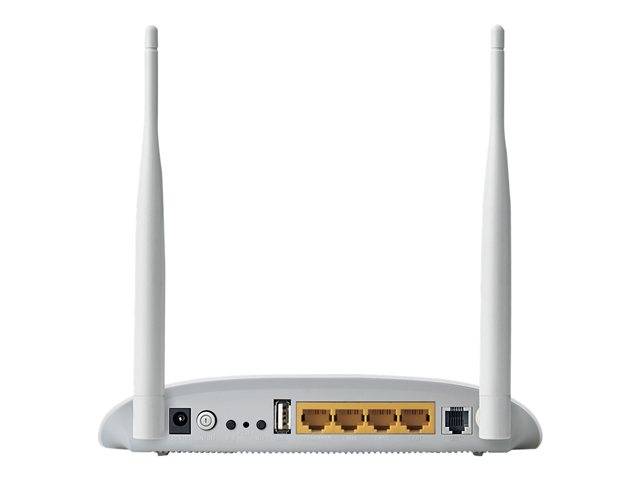

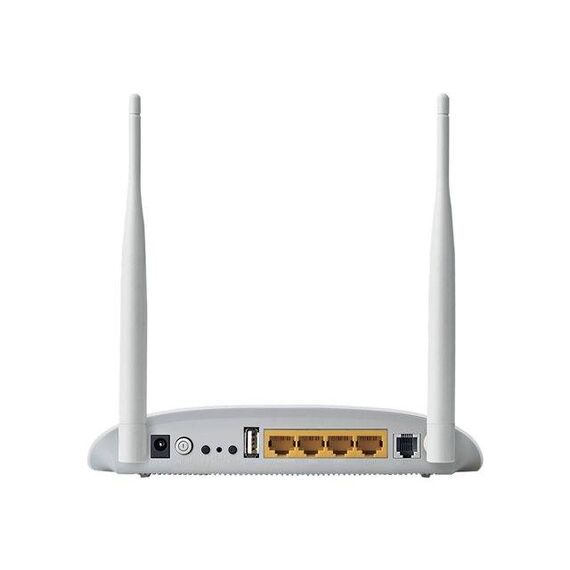

Interfaces | WAN: 1 x ADSL2+ - RJ-11 ¦ LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
Aerial | External integrated |
Antenna Qty | 2 |
Directivity | Omni-directional |
Gain Level | 5 dBi |
Power Device | External power adapter |
Included Accessories | ADSL splitter |
Cables Included | 1 x network cable ¦ 1 x modem cable |
Software Included | Drivers & Utilities |
Width | 19.5 cm |
Depth | 13 cm |
Height | 3.6 cm |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
