Transcend TS-CM80S / Storage enclosure / M.2 / SATA 6Gb/s / 600 MBps / USB 3.1 | TS-CM80S
Transcend TS-CM80S / Storage enclosure / M.2 / SATA 6Gb/s / 600 MBps / USB 3.1 | TS-CM80S
Description
Transcend's CM80 are enclosures in different form factors designed specifically for M.2 SATA SSDs. By following the step-by-step installation guide, you can transform an M.2 SATA SSD into a portable USB 3.1 Gen 1 external drive, maximizing utilization.
Transcend TS-CM80S / Storage enclosure | TS-CM80S
Special Features
- Sleek, pocketable design
- USB Type-A and Type-C supported
- Enhanced performance with UASP
Product features
- Sleek, pocketable design

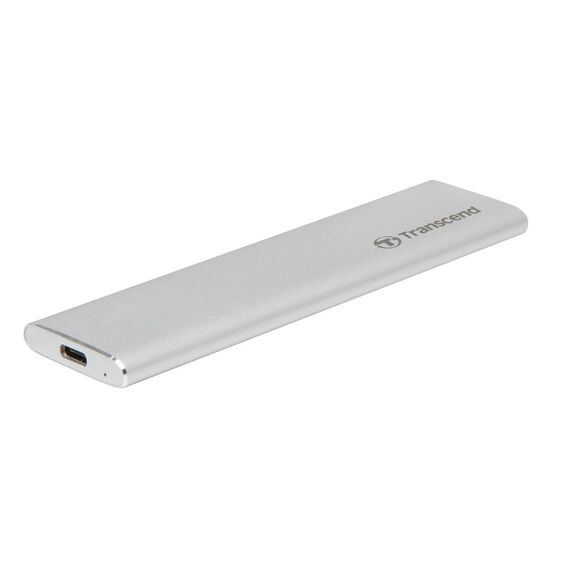

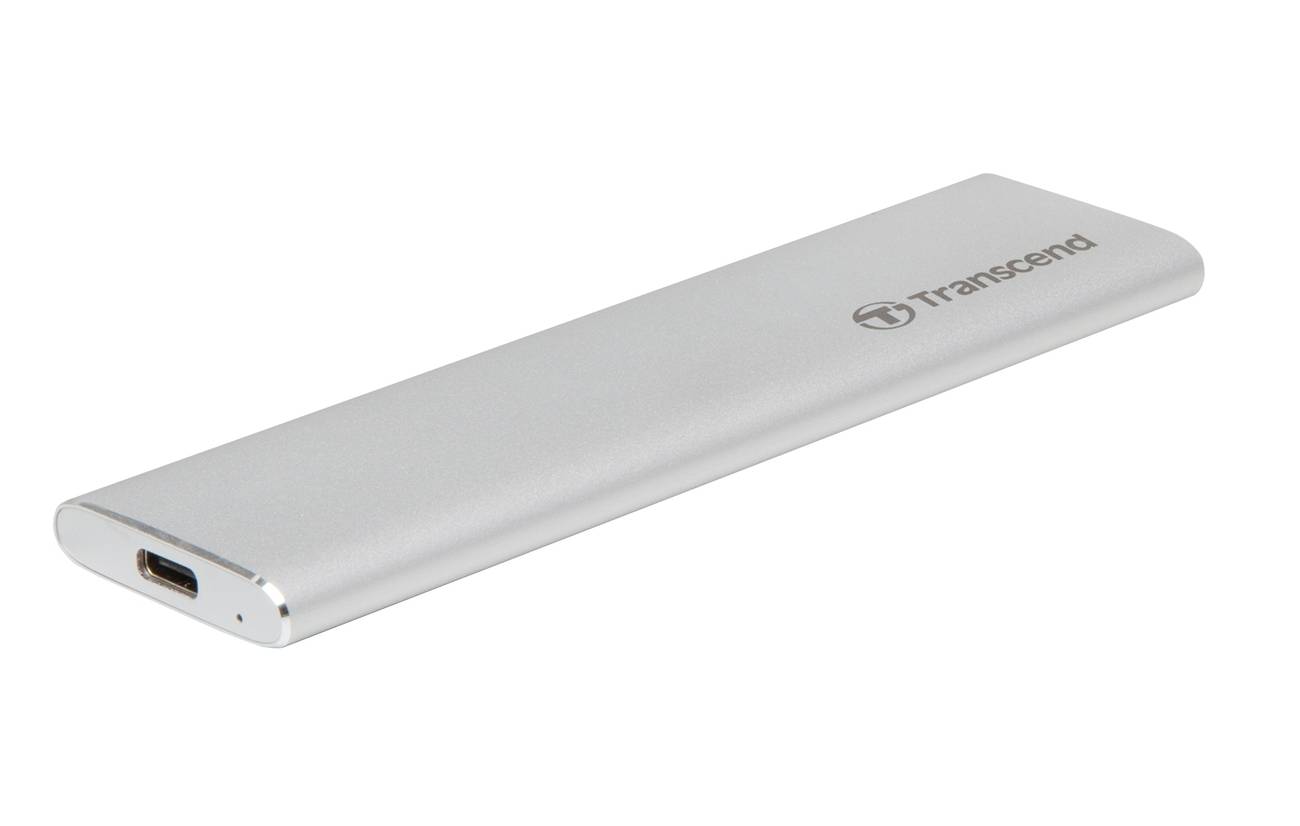

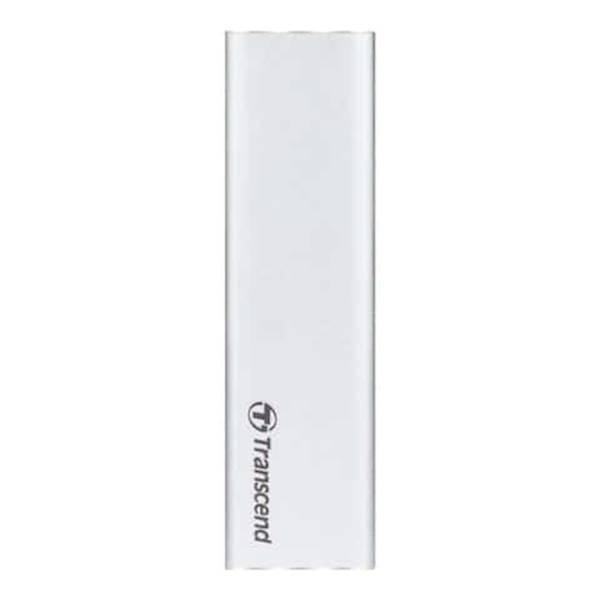

Transcend's M.2 SSD enclosure features a lightweight aluminum construction, making it both portable and durable while you are on the move. A LED indicator lets you know when the drive is in use. - USB Type-A and Type-C supported
To accommodate devices with different USB ports, the M.2 SSD enclosure is engineered to convert to a USB Type-C port, offering flexibility of being used on different platforms with either USB Type-A or Type-C port. - Enhanced performance with UASP
The M.2 SSD enclosure uses the USB 3.1 Gen 1 interface incorporated with UASP (USB Attached SCSI Protocol) that makes transfer speeds faster than with a sole USB 3.0 interface when used with a UASP-enabled host computer.
Product Specification
Device Type | Storage enclosure - external |
Hard Drive Form Factor Compatibility | M.2 |
Host Bus | USB 3.1 |
Interface | SATA 6Gb/s |
Data Transfer Rate | 600 MBps |
Supported Devices | Solid state drive |
Max Storage Devices Qty | 1 |
Bays | 1 x internal - M.2 2242/2260/2280 |
Interfaces | 1 x SATA 6Gb/s - SATA combo |
Connections | 1 x USB 3.1 - 24 pin USB-C |

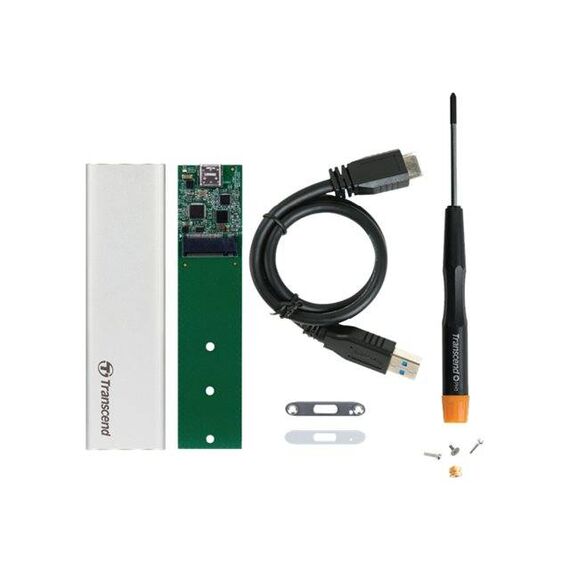

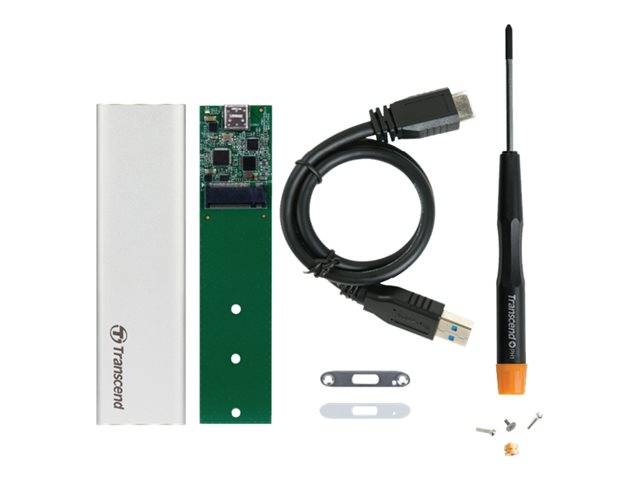

Included Accessories | Screwdriver, screws |
Cables Included | 1 x USB-C to USB-A cable - external |
Features | UASP transfer protocol |
Mounting Kit | Included |
Compliant Standards | BSMI, FCC |
Service & Support | Limited warranty - 2 years |
Width | 3.36 cm |
Depth | 12.016 cm |
Height | 0.75 cm |
Weight | 41 g |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
- USB Type-C
- USB3.1
