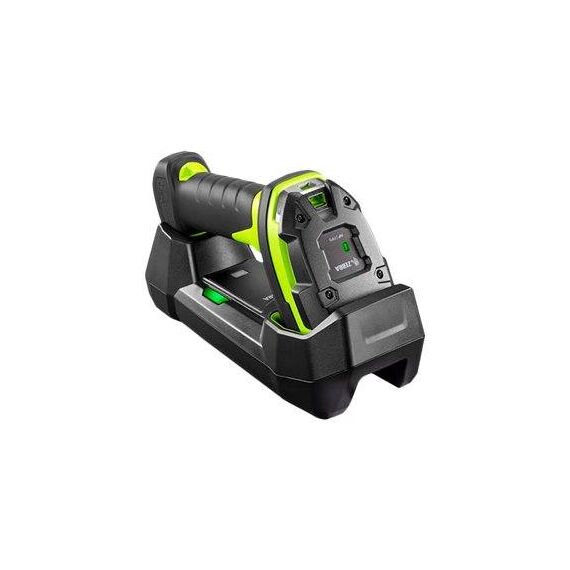

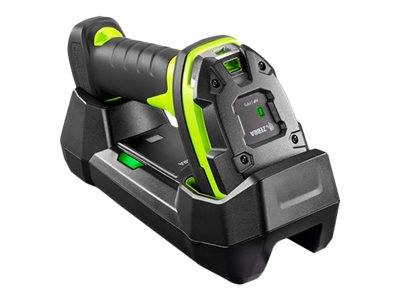

Zebra DS3678-HP / USB Kit / barcode scanner / portable / 2D imager / decoded / Bluetooth 4.0 / incl.: cable (USB), power supply unit, charging/transmitter cradle, order separately: power cable | DS3678-HP3U42A2SKW
Please sign in so that we can notify you about a reply
Product Features
- Superior performance
Your workers can capture information as fast as they can pull the trigger - from virtually any electronic or printed barcode in any condition to photos that can provide undisputable proof of condition for incoming shipments, plus images of highly legible documents for electronic recordkeeping. Even if barcodes are damaged, dirty or poorly printed, no problem - this intelligent scanner can handle it all. - Ultra-rugged design
The warehouse and manufacturing plant floor is as tough as its gets. The cordless models are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution. - Unrivaled manageability
With the complimentary industry-best tools, managing these scanners couldn't be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Special Features
- Superior performance
- Ultra-rugged design
- Unrivaled manageability
Product Specification
| Type | Barcode scanner - portable |
| Colour | Industrial green |
| Barcode | Barcode |
| Interface Type | Bluetooth 4.0 |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - white LED |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 655 nm |
| Max Working Distance | 203.2 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, MICR E-13B, Micro QR code, China Han Xin Code |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Rugged, Human Interface Device Profile (HID), Serial Port Profile (SPP), 25 kV ESD protection (air discharge), 10 kV ESD protection (direct discharge), 10 kV ESD protection (indirect discharge) |
| Networking | Networking |
| Wireless Connectivity | Bluetooth 4.0 LE |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cradle |
| Cables Included | 1 x USB cable - external - 2.1 m |
| Compliant Standards | UL, VDE, Bluetooth Class 1, EN 61000-4-2, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, IP65, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |
| Power | Power |
| Power Device | Power adapter |
| Battery | 1 x Lithium Ion |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.6 cm |
| Depth | 14.2 cm |
| Height | 18.5 cm |
| Weight | 411 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 3 years ¦ Limited warranty - battery - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 2.4 m to concrete |
Features - Zebra - DS3678-HP3U42A2SKW
More Details
Product Code
CB56307
EAN Code
4711121629402
Manufacturer
Zebra
