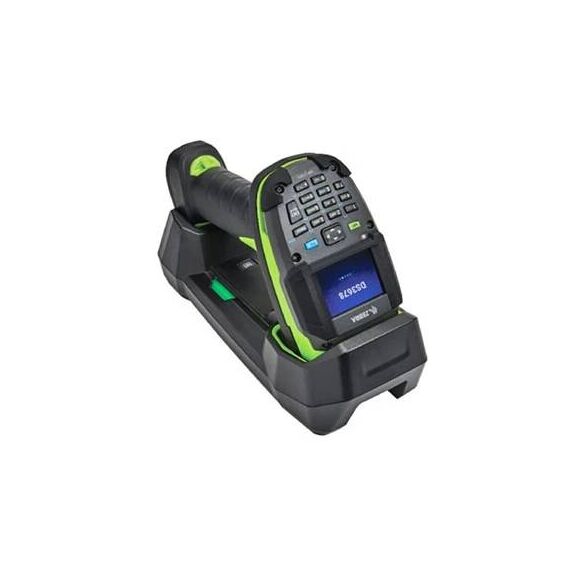

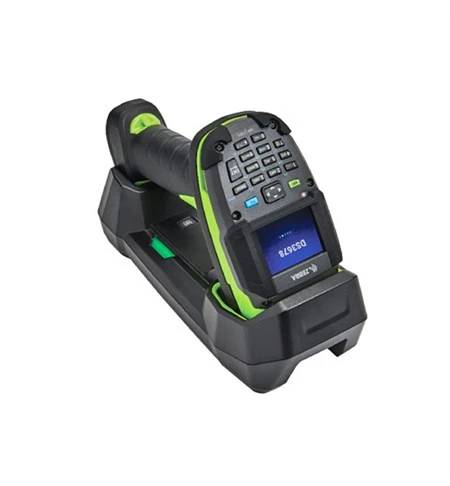

Zebra DS3678-KD – Cordless Ultra-Rugged Scanner with Keypad & Colour Display
The Zebra DS3678-KD (DS3600-KD series) is the most capable cordless ultra-rugged scanner in the Zebra 3600 range, combining the unstoppable performance of the DS3678-HP High Performance imager with a 19-key backlit keypad and 2" QVGA colour display. Workers can scan any 1D or 2D barcode up to 2.1m away, capture OCR, photos and documents, key in quantities or location data directly on the scanner, and run five pre-built applications without any programming. With IP67 sealing, 3m drop protection and 60,000 scans per charge, it is built for the toughest shifts in warehouse and manufacturing environments. This DS3678-HP3U42A2SKW kit includes the scanner, USB cable, IP65-sealed cradle, power supply and DC cable. Note: AC line cord must be ordered separately.
Scanner Specifications
| Parameter | Value |
|---|---|
| Part Number | DS3678-HP3U42A2SKW |
| EAN | 5715063156117 |
| Series | Zebra DS3600-KD (Keypad & Display) |
| Scanner Type | Cordless 1D/2D High Performance Area Imager |
| Wireless | Bluetooth 4.0 with BLE — Wi-Fi Friendly Mode |
| Working Range | Near contact – 2.1m (7ft) — 30% more than comparable models |
| Display | 2.0" QVGA LED backlit colour display — Corning Gorilla Glass |
| Keypad | 19-key backlit alpha-numeric — Blue and Green shift functions |
| Pre-built Applications | 5 apps ready out-of-box — quantity entry, location tagging, container verification, inventory count, image preview |
| Battery | PowerPrecision+ 3,100mAh — 60,000 scans per charge |
| Interfaces | USB, RS232, Keyboard Wedge, Industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP) |
| IP Rating | IP65 / IP67 — dustproof, waterproof (30 min submersion); IP65 cradle |
| Drop Rating | Multiple 3m (10ft) drops to concrete |
| Operating Temperature | -30°C to +50°C |
| Feedback | Vibration motor, red/green LED, beeper, colour display |
| Colour | Industrial Green / Black |
| Compliance | FIPS |
| Management | 123Scan2, SMS, DataCapture DNA, Virtual Tether, AutoConfig cradle, ScanSpeed Analytics |
| Warranty | 3-year Zebra manufacturer warranty |
Barcode & Capture Support
| Type | Detail |
|---|---|
| 1D | Code 39, Code 128, Code 93, Codabar, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, GS1 DataBar, Korean 3 of 5, Base 32 |
| 2D | QR Code, Micro QR, DataMatrix, PDF417, Micro PDF417, Aztec, MaxiCode, Han Xin, Postal Codes, Composite Codes, Digimarc |
| OCR | OCR-A/B, MICR-E13B, US Currency Serial Number |
| Advanced | Multi-Code: up to 20 barcodes simultaneously; Intelligent Document Capture (de-skew, optimize); Label Parse+ for GS1; photos & signatures |
Kit Contents
- DS3678-HP2F003VKWW — Cordless scanner with keypad & display (FIPS, Industrial Green)
- CBA-U42-S07PAR — Shielded USB cable, 7ft, supports 12V power supply
- STB3678-C100F3WW — IP65-sealed standard cradle
- PWR-BGA12V50W0WW — 12V power supply
- CBL-DC-451A1-01 — DC line cord
- AC line cord not included — order 23844-00-00R separately
★ Singular Recommends
For who
Warehouse and manufacturing workers who need to scan barcodes and simultaneously enter data — quantities, locations, verification codes — without returning to a fixed terminal. Ideal for pick-and-pack, inventory count and quality control workflows.
The real reason to buy it
The keypad and display transform a scanner into a mobile data entry device — no separate terminal, no second device. Five pre-built apps work straight out of the box. The AutoConfig cradle means scanner settings follow the cradle, not the scanner — swap a scanner between forklift and shipping dock without any reconfiguration.
Know before you buy
AC line cord (23844-00-00R) is NOT included in this kit — order separately. If you don't need keypad and data entry capability, the DS3678-SR or DS3678-HP without display is a more cost-effective choice. Power supply in this kit supports 12V only — verify compatibility with your installation.
Χαρακτηριστικά
Product Code
CB56307
EAN Code
5715063156117
Manufacturer
Zebra
