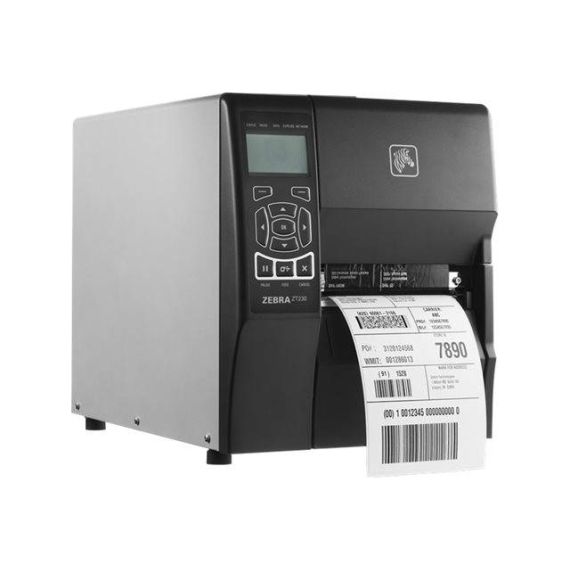

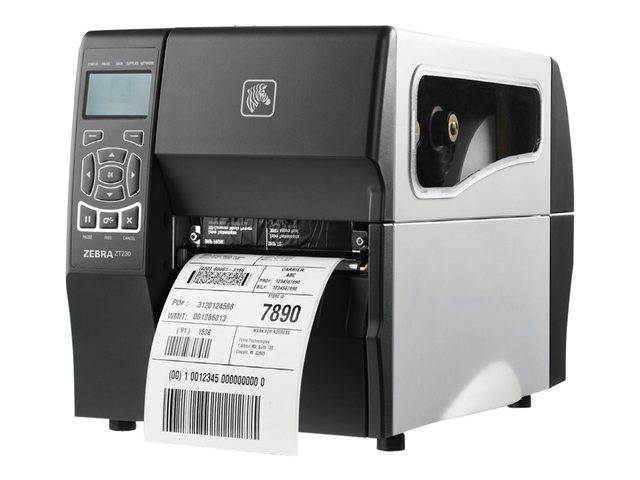

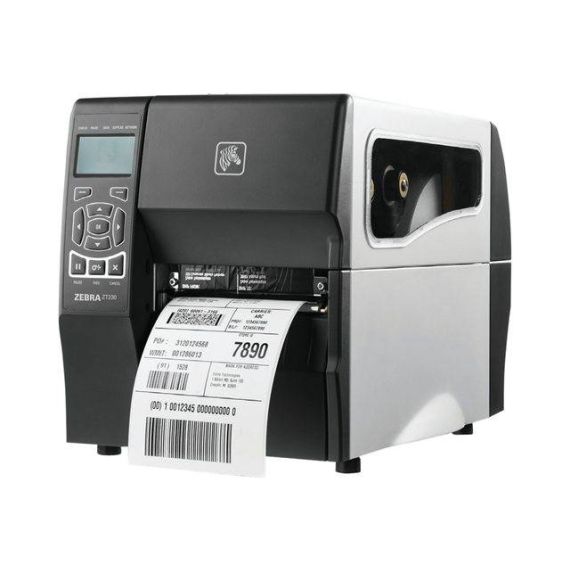

Zebra ZT230 / Label printer / direct thermal / Roll (11.4 cm) / 300 dpi / up to 152 mm/sec / USB, LAN, serial / cutter | ZT23043-D2E200FZ
Zebra ZT230 / Label printer / direct thermal / Roll (11.4 cm) / 300 dpi / up to 152 mm/sec / USB, LAN, serial / cutter | ZT23043-D2E200FZ
Description
Zebra incorporated extensive customer feedback to create the ZT200 series printers, which feature space-saving design, effortless setup, intuitive user operation, and ease of service and maintenance.Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT200 series is the right choice for a variety of labeling applications. This innovative printer provides many user benefitsThe ZT200 series offers a streamlined design and smaller footprint. ZT200 series printers require minimal operator training and benefit from tool-less standard component maintenance and a durable design to minimize service. Your IT staff will appreciate the backwards compatibility, since it allows for these printers to be up and running with minimal time and effort.The ZT200 series has been designed for ease of use, versatility and outstanding value.
Zebra ZT230 / Label printer | ZT23043-D2E200FZ
Special Features
- Space-saving design
- Fast installation and integration
- Intuitive, effortless media loading
- Print quality
- Zebra reliability and durability
- Simplified serviceability
Product features
- Space-saving design
Compact footprint and streamlined design fits easily in confined areas where space is at a premium. Space saving design with unique bi-fold door fits easily into tight spaces maximizing work space. - Fast installation and integration
Icon-based status LEDs provide immediate and easily visible printer status. - Intuitive, effortless media loading
Side-loading design eliminates complicated threading of supplies. Color-coded cues give even first-time users visual guidance for loading ribbon and media. Illuminated moveable sensor is visible through the media for trouble-free sensor-position adjustment - Print quality
Engineered for greater print precision with finetuned adjustments. Crisp, clean text and barcodes - even on narrow media. - Zebra reliability and durability
Built for light industrial and commercial environments. Drive system designed for optimal performance, with minimal maintenance required. - Simplified serviceability
Easy, tool-less platen and printhead removal enable simple cleaning and replacement. Simple interchangeable connectivity options enable rapid printer changes and upgrade. Only three common tools needed for basic service.
Product Specification
Printer Type | Label printer - direct thermal - monochrome |
Localisation | United Kingdom, Europe |
Print Speed | - 300 dpi |
Built-in Devices | Status LCD |
Connectivity Technology | Wired |
Interface | USB, LAN, serial |
Max Resolution (B&W) | 300 dpi |
Language Simulation | ZPL, ZPL II, EPL, Extensible Mark-up Language (XML) |
Cutter | Yes |
Fonts Included | 1 x scalable ¦ 7 x bitmapped |
Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5 |
Printer Features | Zebra Programming Language (ZPL) support, XML-enabled printing, Multi-level Element Energy Equalizer (E3) |
Processor | 400 MHz |
RAM Installed (Max) | 128 MB |
Technology / Form Factor | SDRAM |
Flash Memory | 128 MB |
Media Type | Labels, continuous paper labels, die cut labels |
Max Media Size | Roll (11.4 cm) |
Min Media Size (Custom) | 19.4 mm |
Max Media Size (Custom) | 114 mm x 991 mm |
Media Sizes | Roll (1.94 - 11.4 cm) |
Max Printing Width | 104 mm |
Max Printing Length | 1854 mm |
Media Thickness Range | 0.076 mm - 0.25 mm |
Roll Maximum Outer Diameter | 203 mm |
Roll Core Diameter | 76 mm, 25 mm |
Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
Networking | Print server |
Data Link Protocol | Ethernet, Fast Ethernet |
Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB ¦ 1 x LAN |
Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft'€™s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
Compliant Standards | VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15 B, CCC, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V |
Frequency Required | 47 - 63 Hz |
ENERGY STAR | Yes |
Service & Support | Limited warranty - 1 year |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 - 85% (non-condensing) |
Width | 24.2 cm |
Depth | 43.2 cm |
Height | 27.7 cm |
Weight | 9.1 kg |
Weight (Shipping) | 11.4 kg |
