ZOTAC ZBOX M Series MI646 edge / Barebone / mini PC / Core i5 1135G7 / RAM 0 GB / Iris Xe Graphics / GigE / WLAN, Bluetooth 5.0 | ZBOX-MI646-BE

ZBOX-MI646-BE
589.22
(701.17 με Φ.Π.Α.)
Μη Διαθέσιμο
Delivery
Payment options
Product CodeCD46534 EAN Code4895173623639 ManufacturerZOTAC CPU TypeIntel Core i5

Product Features

  • Full functionality in a slim profile
    With a height less than some standard PC keyboards, the M Series edge is a full featured PC system in an ultra-thin profile.
  • Do more, faster
    The ZBOX M Series edge features a power-efficient 11th Gen Intel Core i processor powered by Intel's SuperFin transistors. The dual-core processor doubles the compute load with four threads to make multitasking a simple task with Intel Hyper-Threading.
  • More clarity
    A more powerful, more capable integrated Intel Iris Xe Graphics based on the completely Gen 12 architecture delivers brilliant visuals with support for billions of colors, HDR10, Dolby Atmos sound, long playback of Dolby Vision-enabled content with hardware acceleration, and AI hardware-based acceleration.
  • Thunderbolt 4
    One Thunderbolt 4 Type-C port with 3 distinct capabilities empowers the M Series edge to be more capable. Pair the ZBOX Mini PC featuring Thunderbolt 4 with a compatible External GPU box to push performance beyond the compact body.
  • A suite of connectivity
    Equipped with a full range of standard I/O ports, the ZBOX edge suffices to offer everything you need.
  • Quick cooling efficiency
    An efficient cooling solution is housed in the thin profile to maximize airflow and achieve the best performance even under heavy loads.

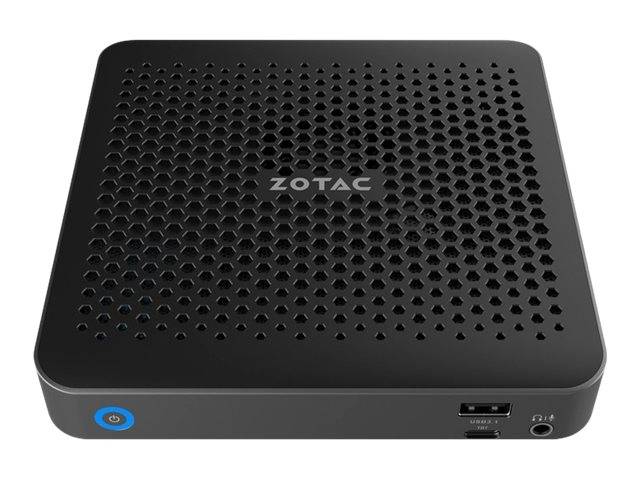

  • Honeycomb vents
    A wide degree of ventilation maximizes air flow in the low-profile chassis.
  • Optimal airflow
    A fan with smart controls efficiently spins up when required to effectively transfer heat directly out the system for quiet efficiency and cool performance.
  • Higher capacity
    Support for a total of up 64GB of DDR4 3200MHz memory and dual M.2 SSDs ensure more storage capacity, lower latency, and quicker responsiveness in your workflow. It is also the first to feature the highest and fastest supported memory capacity in the M Series edge line up.
  • Easy upgradeability
    Remove a few screws and gain access to the internals to upgrade memory and/or storage.
  • Nimble versatility
    The M Series edge is slim enough to fit in space-limited environments. With an included VESA mounting accessory, you can place it here or there, this way or that way. It's up to you.
  • Meet all computing needs
    ZBOX edge is the thinnest solution that provides powerful performance for demanding IoT-enabled applications, daily tasks, and even light duty work such as content creation.

Special Features

  • Full functionality in a slim profile
  • Do more, faster
  • More clarity
  • Thunderbolt 4
  • A suite of connectivity
  • Quick cooling efficiency
  • Honeycomb vents
  • Optimal airflow
  • Higher capacity
  • Easy upgradeability
  • Nimble versatility
  • Meet all computing needs

Product Specification

Type PC barebone
Product Form Factor Mini PC
Localisation Region: United Kingdom, Europe
Processor / Chipset Processor / Chipset
CPU Intel Core i5 (11th Gen) 1135G7
Clock Speed 2.4 GHz
Max Turbo Speed 4.2 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
RAM RAM
Installed Size 0 GB / 64 GB (max)
Technology DDR4 SDRAM
Form Factor SO-DIMM 260-pin
Slots 2 (Total) / 2 (empty)
Hard Drive Hard Drive
Type No HDD
Storage Controller Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Optical Storage Optical Storage
Type No optical drive
Card Reader Card Reader
Type Card reader
Supported Flash Memory Cards microSDHC, microSDXC
Monitor Monitor
Monitor Type None.
Graphics Controller Graphics Controller
Graphics Processor Intel Iris Xe Graphics
Video Interfaces HDMI, DisplayPort
Networking Networking
Ethernet Ports 2 x Gigabit Ethernet
Wireless LAN Supported Yes
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Expansion / Connectivity Expansion / Connectivity
Slots 1 (total) / 1 (free) x M.2 Card - 2242 ¦ 1 (total) / 1 (free) x M.2 Card - 2280

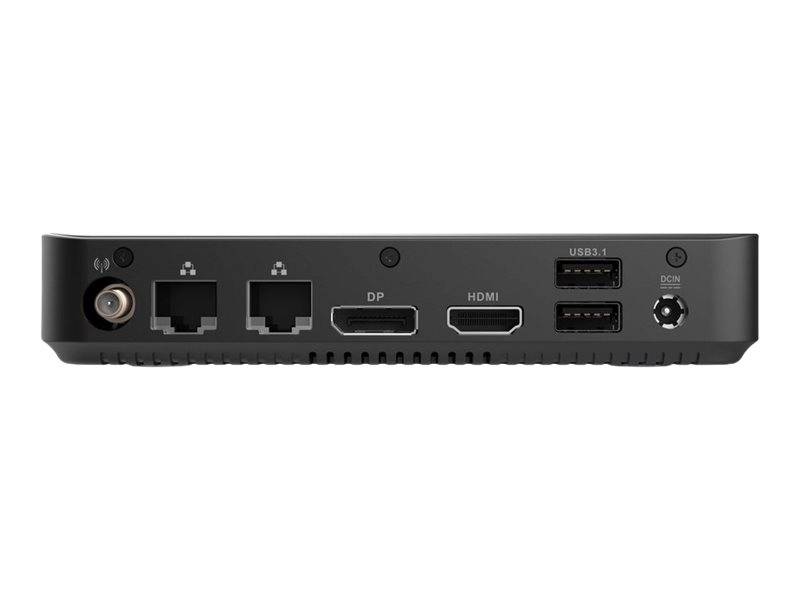

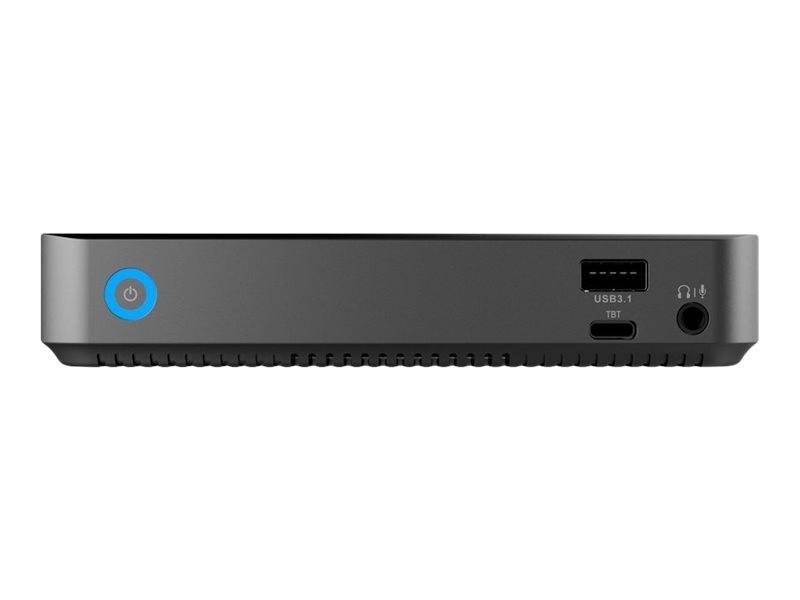

Interfaces 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x audio line-out/microphone (1 in front) ¦ 1 x Thunderbolt 4/USB4 (1 in front) ¦ 3 x USB 3.1 (1 front, 2 rear)
Miscellaneous Miscellaneous
Included Accessories Wireless antenna, VESA mounting kit
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
VESA Mounting Interface Yes
Power Power
Device Type Power adapter
Power Provided 65 Watt
Operating System / Software Operating System / Software
OS Provided No operating system
Software Drivers & Utilities
Manufacturer Warranty Manufacturer Warranty
Service & Support Base warranty - 3 years ¦ Extended warranty - 5 years - after registration
Dimensions & Weight Dimensions & Weight
Width 14.95 cm
Depth 14.95 cm
Height 2.85 cm
Dimensions & Weight (Shipping) Dimensions & Weight (Shipping)
Shipping Width 23.5 cm
Shipping Depth 23.5 cm
Shipping Height 8.8 cm

CPU Type
  • Intel Core i5
Χαρακτηριστικά
Product Code
CD46534
EAN Code
4895173623639
Manufacturer
ZOTAC
